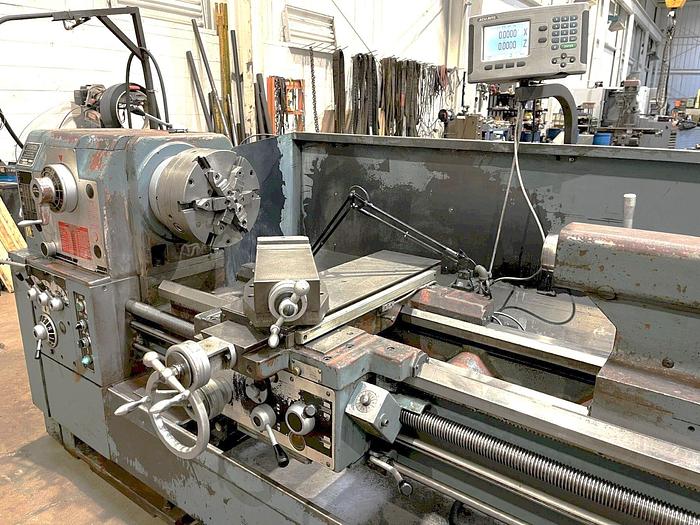

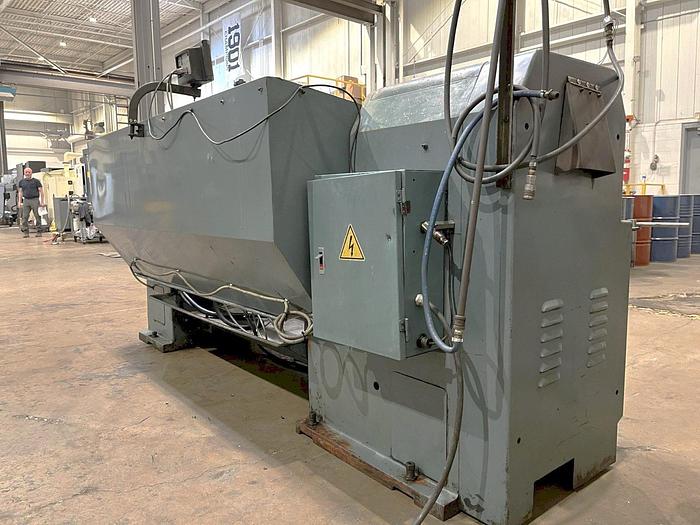

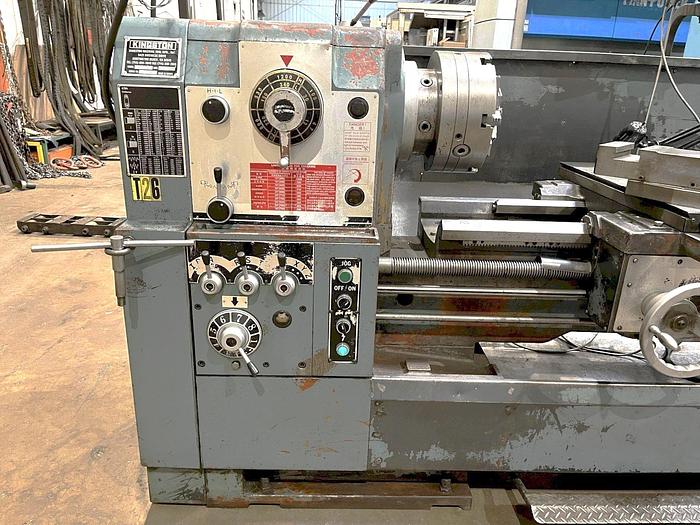

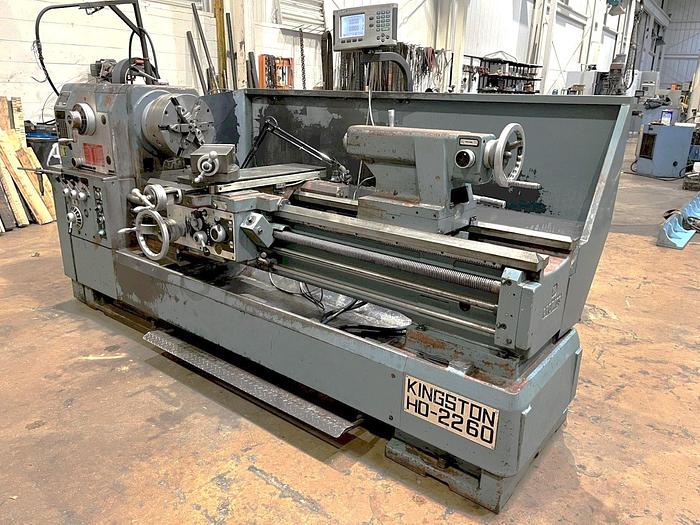

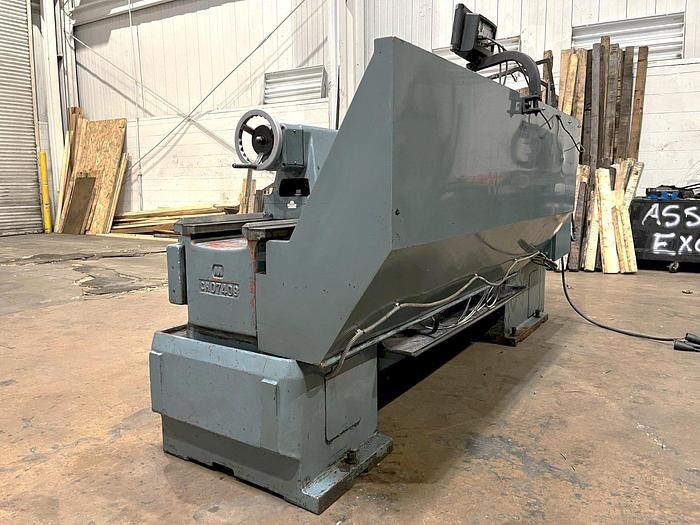

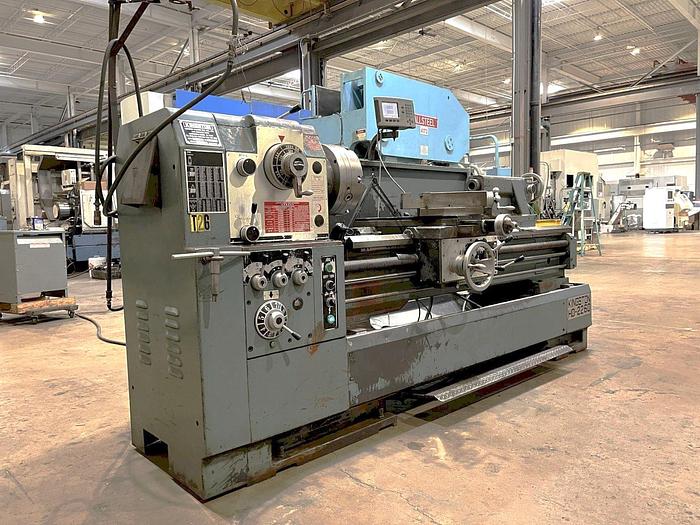

2007 Kingston Model HD2260 Gap Bed Engine Lathe
2007 Kingston Model HD2260 Gap Bed Engine Lathe
$26,950 (USD)
Location:Illinois
orCall (863) 439-6066
Description
12" 6 Jaw Manual Chuck

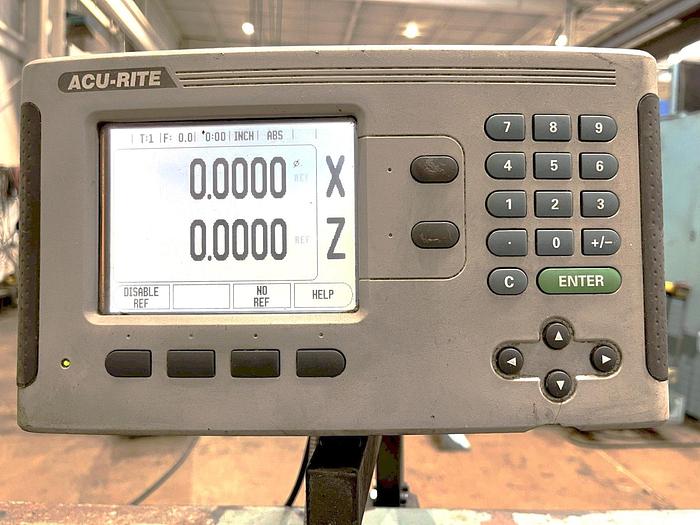

Acu-Rite 2 Axis Digital Readout
Inch/Metric Threading
Tailstock
Coolant System with Pump
All Available Manuals
Specifications
| Manufacturer | Kingston |
| Model | Model HD2260 Gap Bed Engine Lathe |
| Year | 2007 |
| Condition | Used |
| Stock Number | 119081 |
| Chuck Size | 12" 6 Jaw Chuck |
| Maximum Swing over Bed | 22" |
| Maximum Swing Over Cross Slide | 13" |
| Swing over Gap | 31.375" |
| Length of Gap from Spindle Face | 10.625" |
| Center Distance | 60" |

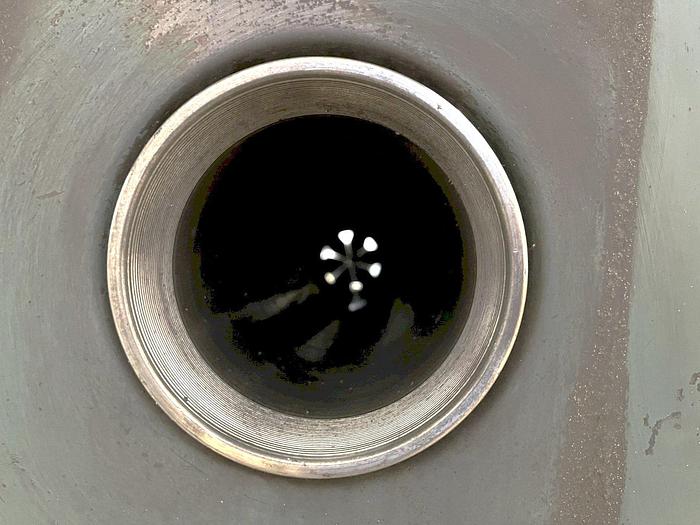

| Spindle Nose / Spindle Bore | D1-8 / 4.0625" |
| Spindle Speeds | 13 - 1,200 RPM , 12 Speeds |
| Spindle motor | 10 HP |
| Number of Tool Positions | not applicable |
| Range of Threads (44) | 2 - 72 TPI |
| Range of Metrick Pitches (39) | 0.2 - 14 |
| Tailstock Taper | MT #5 |
| Machine Dimensions LxWxH | 114"x47"x60" |
| Machine Weight | 5,300 lbs |
