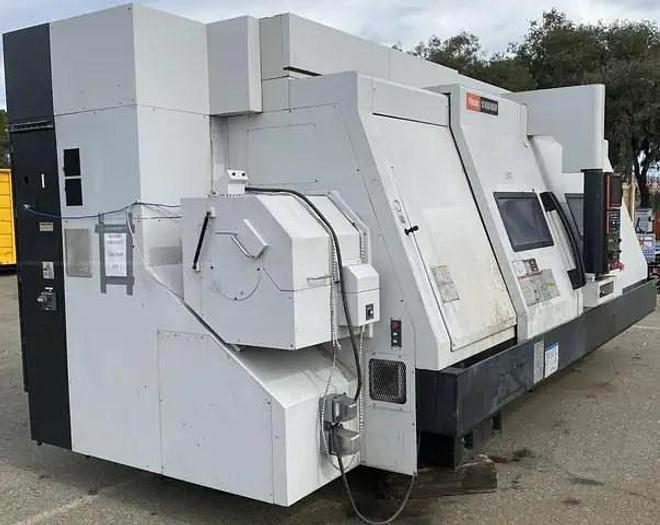

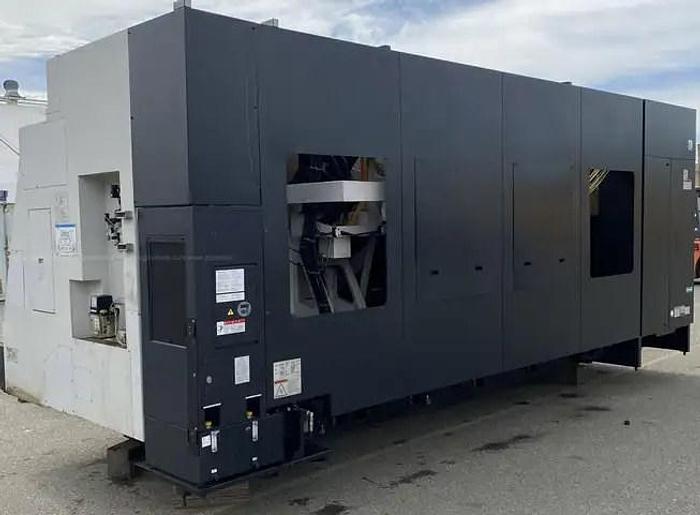

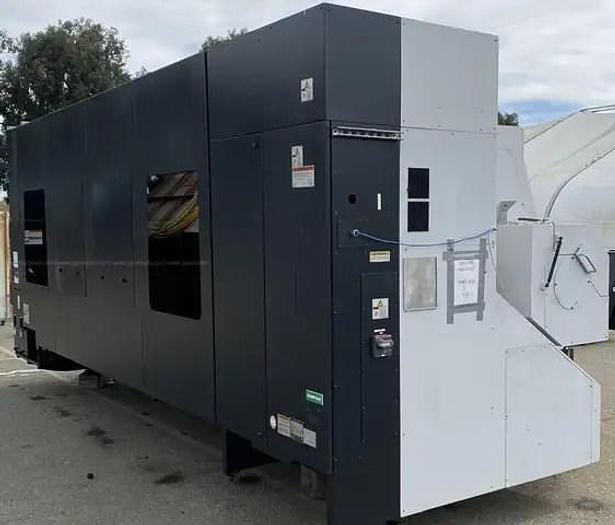

2011 Mazak Mazak Nexus QTN 450-IIMY/2000
No longer available
2011 Mazak Mazak Nexus QTN 450-IIMY/2000
$209,000 (USD)
Location:Illinois
Description
Full C Axis Spindle Rotation
Milling/Drilling Capability
Y Axis Capable
Mount on Rear of Spindle for a Rear Chuck
18" 3 Jaw Big Bore Hydraulic Chuck - 6.5" Hole
Automatic Tool Eye
Renishaw LP2 Probe Kit for Shaftwork

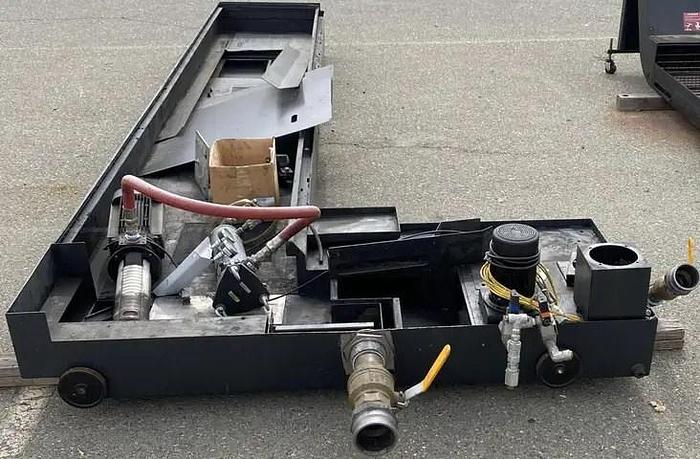

213 PSI High Pressure Coolant

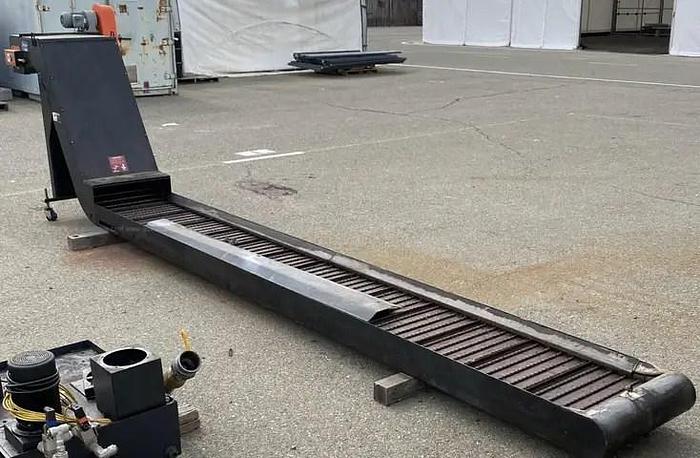

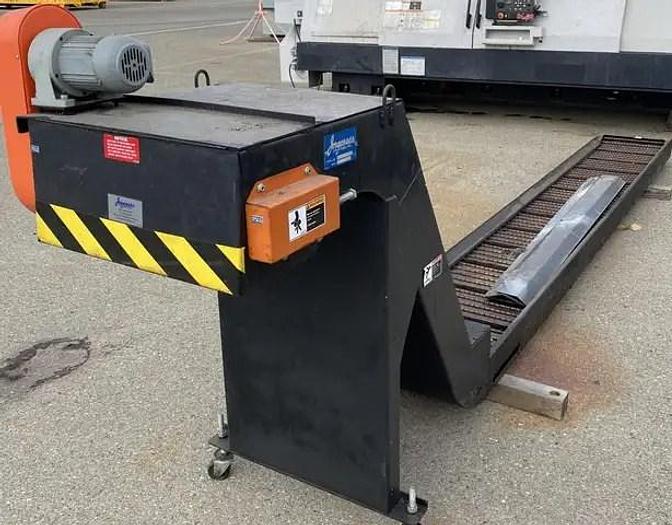

Chip Conveyor
Programmable Tailstock
Mill Synchronous Tapping (rigid tapping)
Auto Pecking
Threading
Re Threading
Comparison Stop
EIA 3D Compensation
EIA Helical Tapping Cycle
EIA Input Function
EIA Coordinate Rotation
EIA Pattern Cycle
Rotation Geometric
Spiral
Variable 600 Sets
External Data Input/Output
Tilted Work Plane
Coordinate Rotation & Scaling
USB Port Interface (2 Slots)
LAN Card Interface
RS 232 Port Interface
Multi Tap Transformer
All Available Manuals and Tooling
Specifications
| Manufacturer | Mazak |
| Model | Mazak Nexus QTN 450-IIMY/2000 |
| Year | 2011 |
| Condition | Used |
| Stock Number | 119087 |
| Machine Control | Mazatrol Matrix Nexus |
| Chuck Size | 18" 3-Jaw Hydraulic Chuck |
| Maximum Swing | 33.26" |
| Maximum Cutting Diameter | 22.83" |
| Maximum Swing Over Cross Slide | 18.25" |
| Maximum Turning Length | 78.69" |
| X-Axis Travel | 13.38" |
| Y-Axis Travel | +/- 5.91" |
| Z-Axis Travel | 82.12" |
| C Axis Spindle Rotation | .001 Degree Full C |
| Distance Between Centers | 83.46" |
| Spindle Nose / Bore / Bar Capacity | A2-15" / 7.28" / 6.5" |
| Spindle Motor | 50 HP |
| Spindle Speeds | 2,000 RPM |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 10 HP |
| Number of Turret Positions | 12 Sided / 24 Positions |
| Rapid Traverse Rates | 1181 IPM |
| Tailstock Quill Diameter / Center | 5" / #5 MT |
| Tailstock Travel | 73.4" |
| Machine Dimensions LxWxH | 192" x 90" x 80" |
| Machine Weight | 34,417 lbs |
