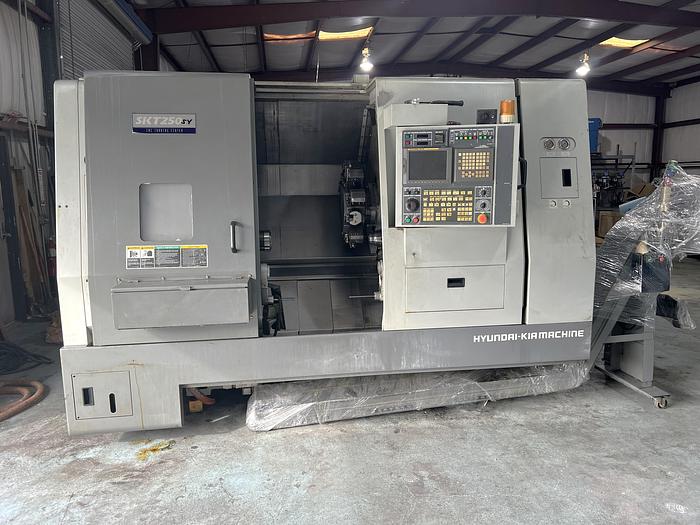

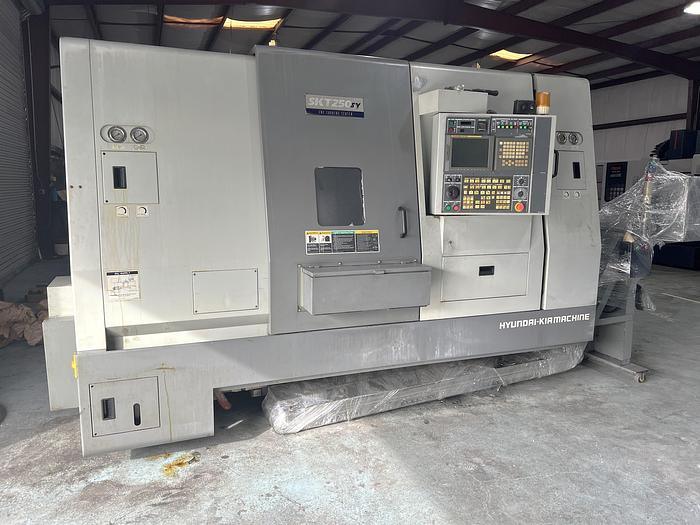

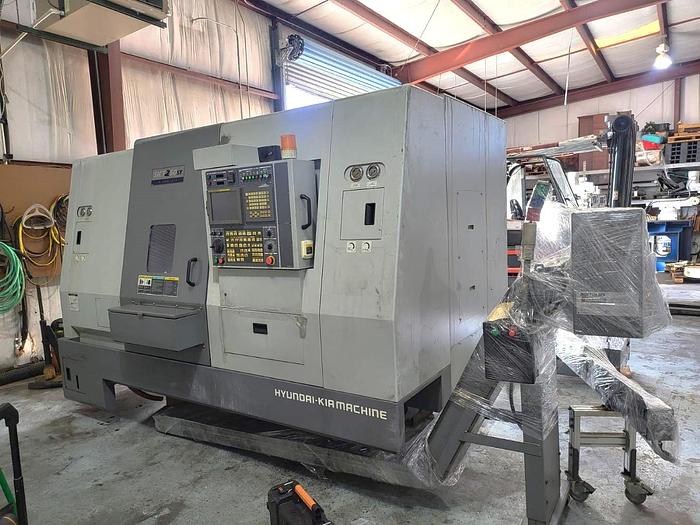

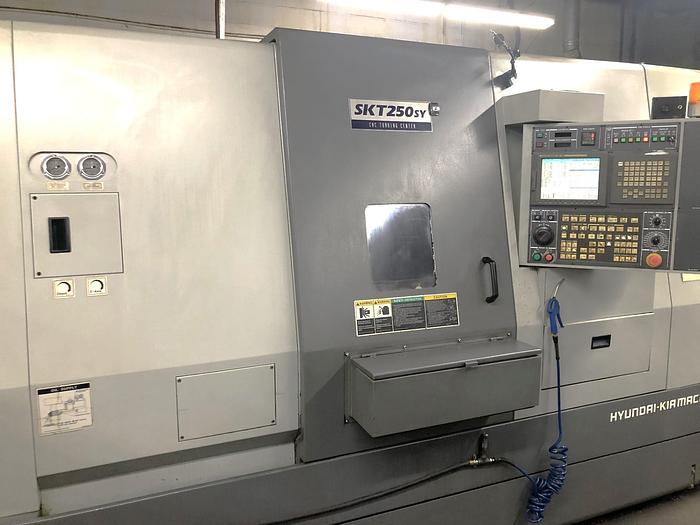

2006 Hyundai-Kia SKT-250SY with Milling, Subspindle, Y Axis
2006 Hyundai-Kia SKT-250SY with Milling, Subspindle, Y Axis
$59,950 (USD)
Location:Dundee, FL
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability

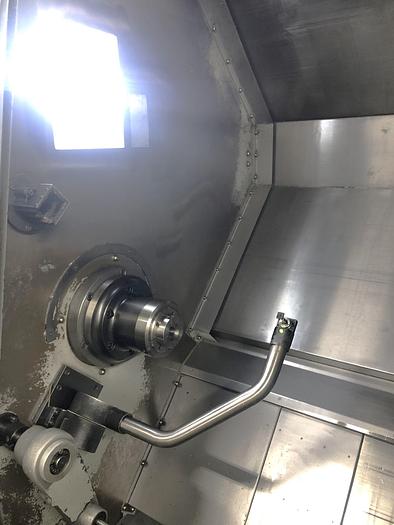

Subspindle
Y Axis Capability

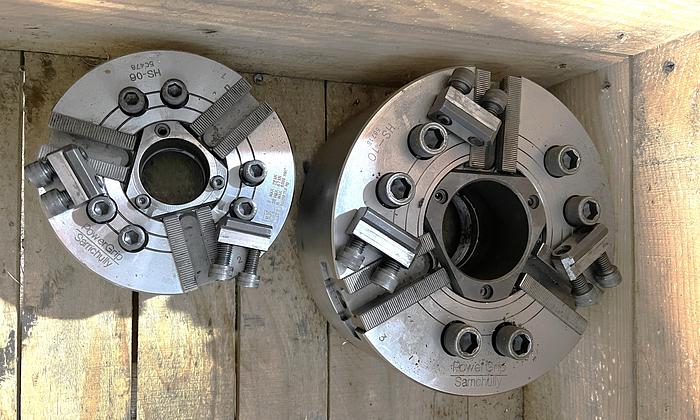

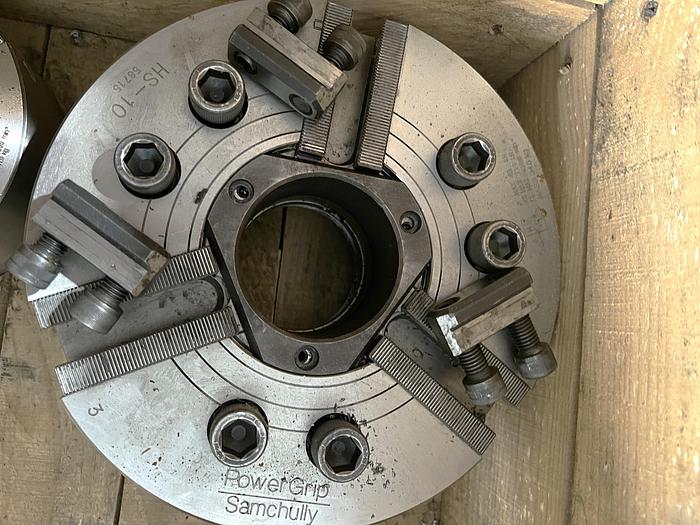

10" Samchully HS-10 Power Grip 3 Jaw Hydraulic Chuck on Main Spindle

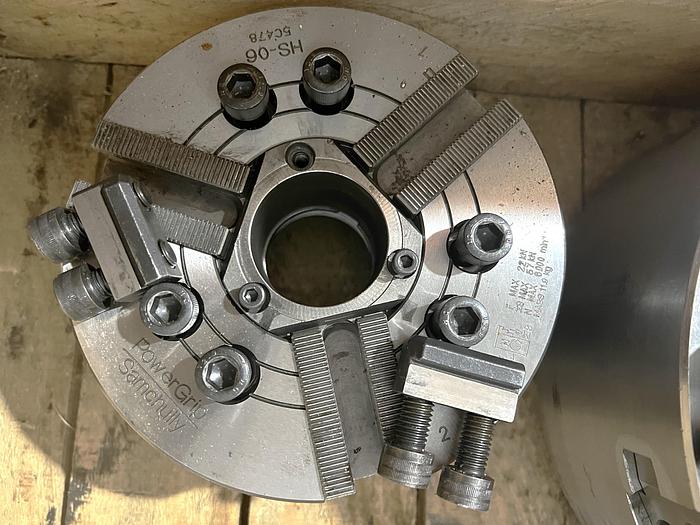

6" Samchully HS-06 Power Grip 3 Jaw Hydraulic Chuck on Subspindle

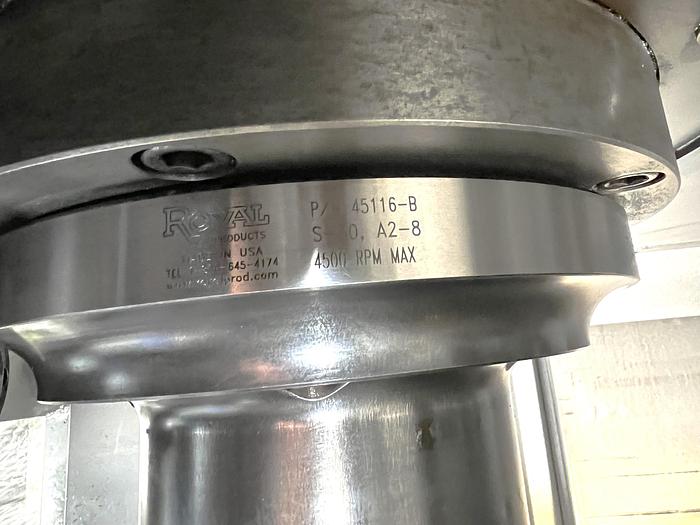

Royal Products S30 Collet Nose for Main Spindle

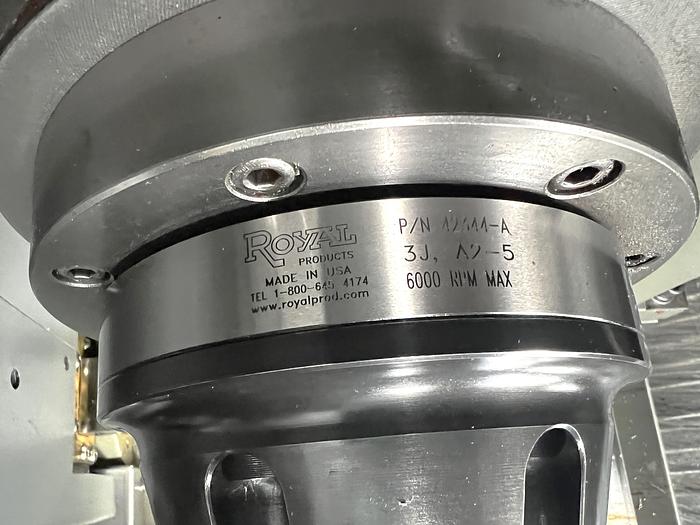

Royal Products 3J Collet Nose for Subspindle
Automatic Parts Catcher for Both Spindles
Parts Conveyor
Tool Presetter

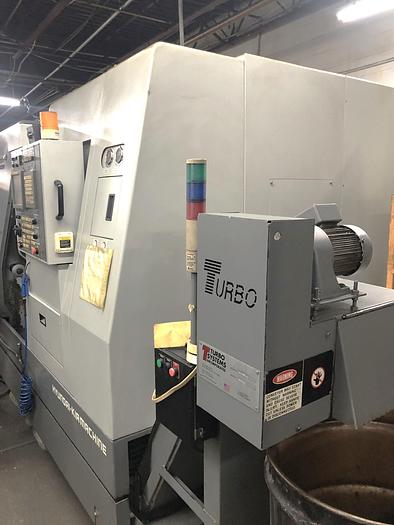

Chip Conveyor

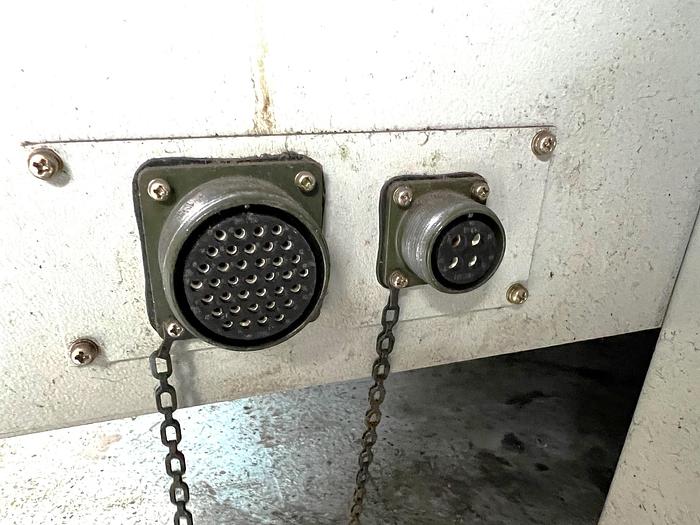

Barfeed Interface ONLY (previously used with a LNS S3 Servo Magazine Barfeed)
Complete Coolant System with Tank & Pump

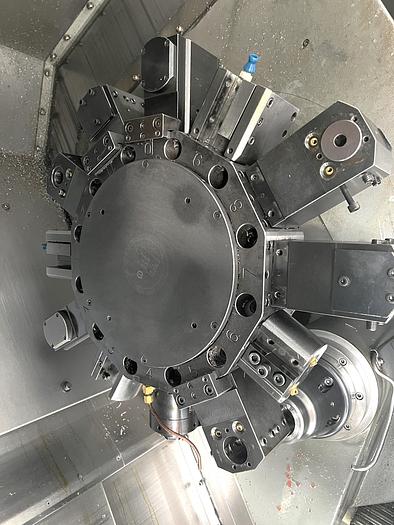

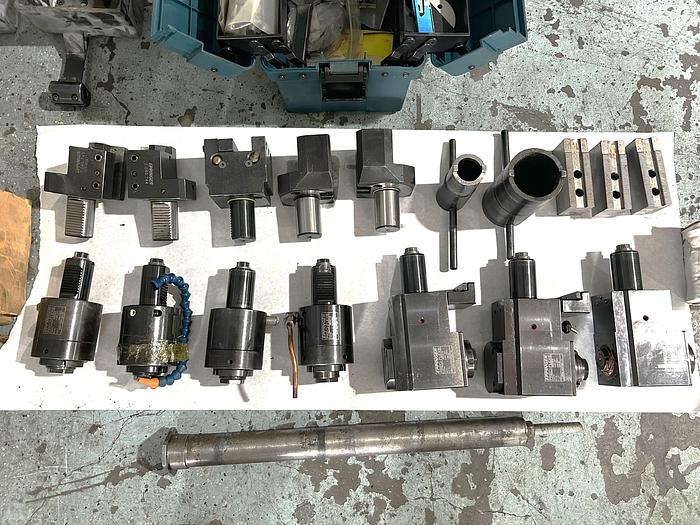

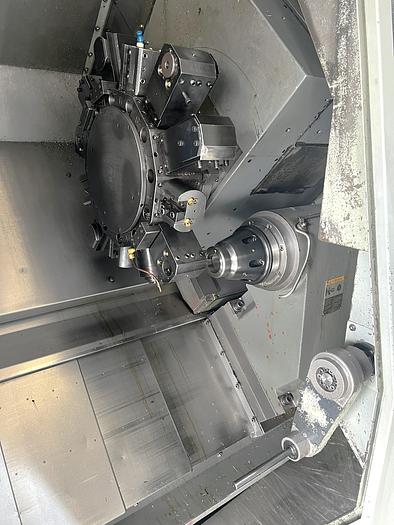

12 Station Turret/6 Live Positions

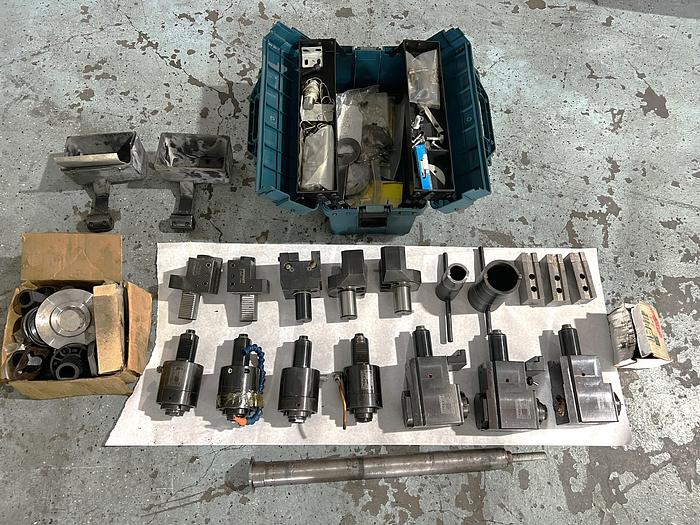

(4) Forward Turning Holders
(2) Reverse Turning Holders
(2) Bi-Directional Turning Holders
(1) Forward Boring Holder
(3) Reverse Boring Holders
(2) Bi-Directional Boring Holders
(1) Cut Off Holder
(4) Axial Live Tool Holders
(5) Radial Live Tool Holders
Tool Box with Chuck Wrenches
All Available Manuals
Specifications
| Manufacturer | Hyundai-Kia |
| Model | SKT-250SY with Milling, Subspindle, Y Axis |
| Year | 2006 |
| Condition | Used |
| Stock Number | 119091 |
| Machine Control | Fanuc 18i-TB |
| Chuck types main / subspindle | 10" Hyd Chuck & S30 Collet / 6" Hyd Chuck & 3J Collet |
| Maximum swing | 24.03" |
| Maximum cutting diameter | 16.15" |
| Maximum machining length | 27.58" |
| Maximum bar capacity | 3.15" |
| X-axis travel | 9.06" |
| Y-Axis Travel | 4.33" (+/- 2.167") |
| Z-axis travel | 26.59" |
| Minimum spindle index increment | 0.001 Degree |
| Spindle nose / spindle bore | A2-8" / 3.54" |
| Spindle speed | 40 - 3,500 RPM |
| Spindle motor 30 min. / cont. | 30 HP / 25 HP |
| Subspindle Motor | 10 HP |
| Rotary tool speed | 30 - 4000 RPM |
| Rotary tool motor | 5.5 HP |
| Turret type / live positions | 12 Sided / 6 Live |
| Rapid Traverse Rates X / Z | 788 IPM / 945 IPM |
| Machine dimensions | 137" x 77" x 85" |
| Machine weight | 14,300 lbs. |
