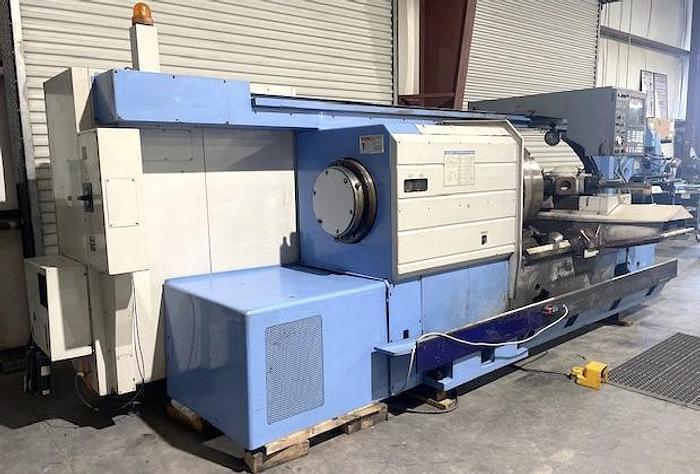

1998 Mazak Powermaster Chucker with 12.5" Big Bore
1998 Mazak Powermaster Chucker with 12.5" Big Bore
$89,500 (USD)
Location:Texas
orCall (863) 439-6066
Description
12.5" Spindle Bore Option 32" 3 Jaw Air Chuck Chip Conveyor Hydraulic Tank & Pump Coolant System with Tank & Pump Backround Tool Path Check EIA/ISO Input Function
User Macro 3.5" Floppy Disk Interface
PCMCIA Interface with 2 Slots
IC Memory Card Interface RS 232 Port Interface Multi Tap Transformer All Available Tooling All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | Powermaster Chucker with 12.5" Big Bore |
| Year | 1998 |
| Condition | Used |
| Stock Number | 119131 |
| Control | Mazatrol Fusion 640T |

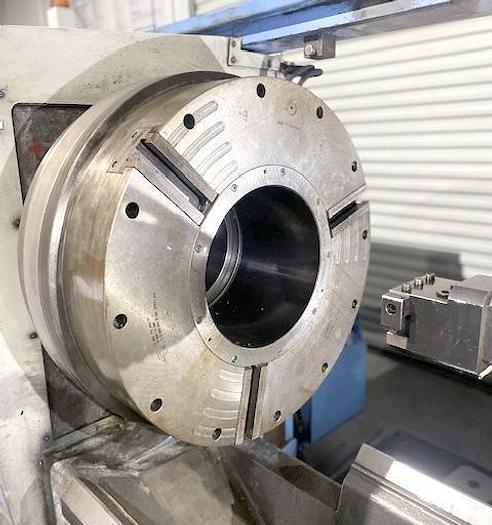

| Chuck Sizes | 32" Air Chuck |
| Maximum Swing over Bed | 34" |
| Maximum Swing Over Gap | 42" |
| Width of Gap from Face to Spindle | 20" |
| X-Axis Travel | 22.5" |
| Z-Axis Travel | 44.88" |
| Spindle Nose / Spindle Bore | A2-20" / 12.5" |
| Spindle Speed | 500 RPM |
| Spindle Motor | 60 HP |
| Number of Turret Positions | 8 Station Turret |
| Rapid Traverse Rates | 470 IPM |
| Machine Dimensions LxWxH | 244"x142"x79" |
| Machine Weight | 20,500 lbs |
