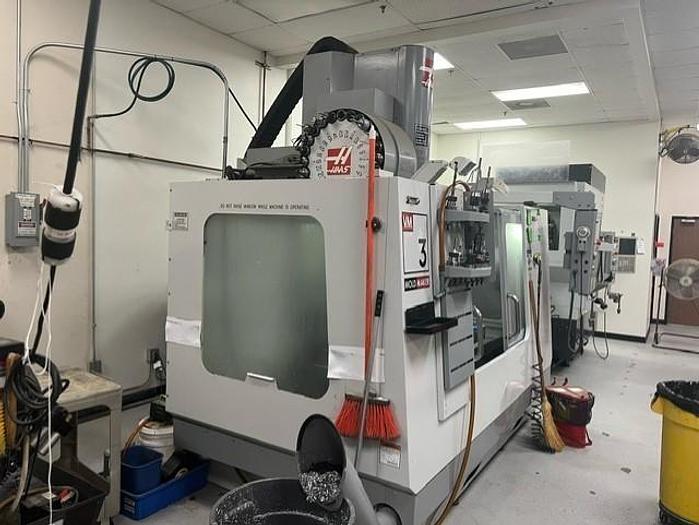

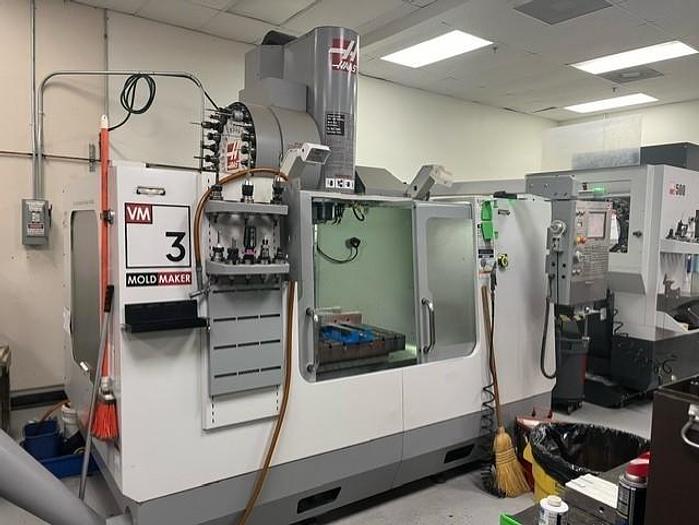

2005 Haas VM-3 Mold Maker VMC with Probing and Side Mounted Tool Changer

2005 Haas VM-3 Mold Maker VMC with Probing and Side Mounted Tool Changer

Contact us for price

Location:California

orCall (863) 439-6066

Description

24+1 Position Side Mounted Tool Changer

Haas Probing with Tool Setter and Part Probe

12,000 RPM Spindle

Auger Style Chip Conveyor

Spindle Orientation

Coordinate Rotation & Scaling

User Definable Macros

Visual Quick Code Programming

Remote Jog Handle

Programmable Coolant Nozzle

High Intensity Lighting

Rigid Tapping

Coolant Tank with Pump

3.5" Floppy Disk Interface

RS 232C Port Interface for DNC Operation

All Available Manuals

Wired 208/230V Electrics


**Same Footprint and Travels as a Haas VF3SS YT**

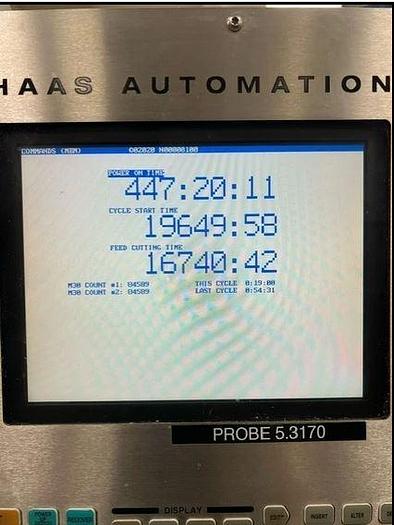

**Cycle Start Hours 19,649**

** Feed Cutting Hours 16,740**

Show All

Specifications

ManufacturerHaas
ModelVM-3
Year2005
ConditionUsed
Stock Number119142
Table size54" x 25"
Max table load4,000 lbs.
X axis travel40"
Y axis travel26"
Z axis travel25"
Spindle taperCAT #40
Spindle speed12,000 RPM
Spindle motor30 HP
Spindle nose to table top4.2" - 29.2"
Number of tool positions24 + 1 Position Side Mount
Max tool weight12 lbs.
Rapid Traverse Rates710 IPM
Machine dimensions122" x 96" x 100"
Machine weight (approximately)14,000 lbs.
