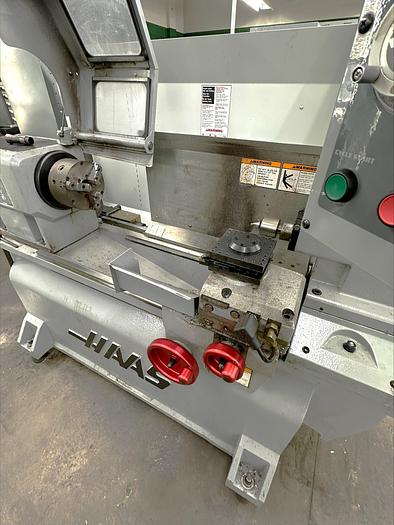

2006 Haas TL-1
2006 Haas TL-1
Contact us for price
Location:North Carolina
orCall (863) 439-6066
Description
8" 3 Jaw Manual Chuck
4 Station Indexable Turret
Tailstock Rigid Tapping Coolant Tank with Pump System Integral Chip-Flow Channel Flip Down Safety Enclosure Manual Hand Wheels RS 232 Port Interface Vector Drive Spindle Single Phase Power at 240V or Three Phase Power at 208V
**Coming out of technical school**
Specifications
| Manufacturer | Haas |
| Model | TL-1 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 119158 |
| Control | Haas CNC Control |
| Chuck Size | 8" 3 Jaw Chuck |
| Maximum Swing over Bed | 16" |
| Maximum Swing Over Cross Slide | 8.5" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 30" |
| X-axis travel | 8" |
| Z-Axis Travel | 30" |
| Spindle Nose / Spindle Bore | A2-5" / 2.31" |
| Spindle Speeds | 1,800 RPM |
| Spindle Motor | 7.5 HP |
| Number of Turret Positions | 4 Indexing Style Turret |
| Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
| Machine Dimensions | 84" x 55" x 78" |
| Machine Weight | 4,000 lbs. |
