2004 Southwestern Industries Trak TRL-1540V Combination Lathe w/ Turret & Tool Post
Sold
2004 Southwestern Industries Trak TRL-1540V Combination Lathe w/ Turret & Tool Post
$12,500 (USD)
Location:Dundee, FL
Description

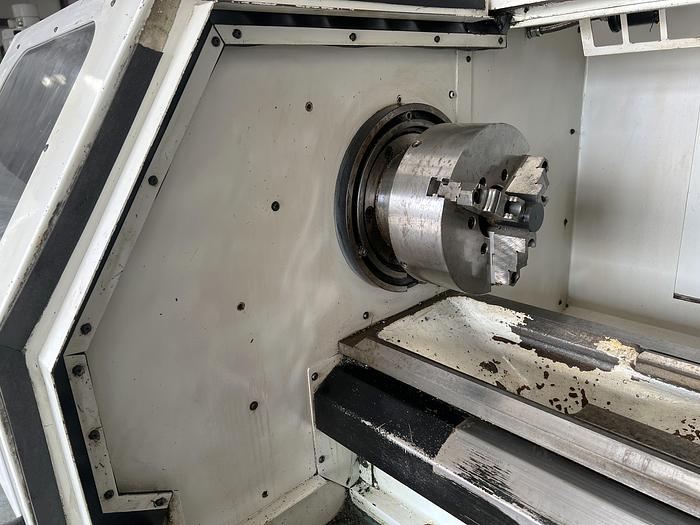

8" 3 Jaw Manual Chuck
5C Collet Chuck Attachment

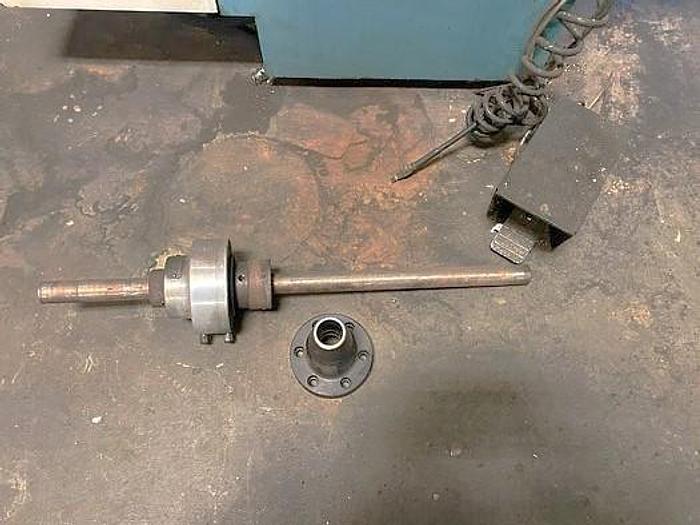

Air Draw Bar with Foot Pedal

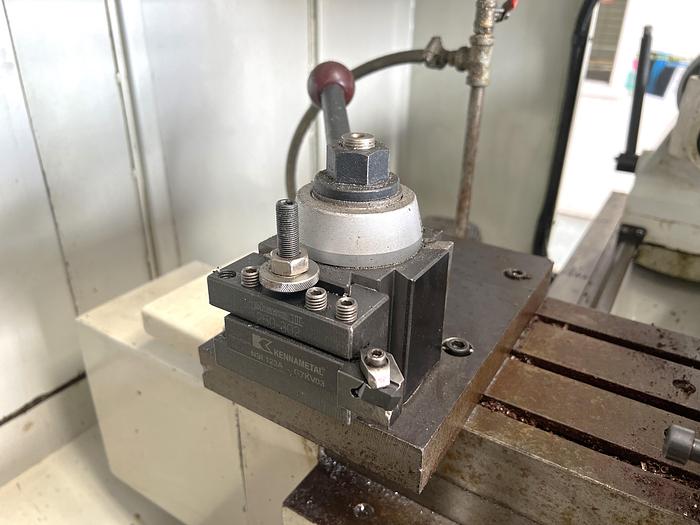

Aloris Style Tool Post

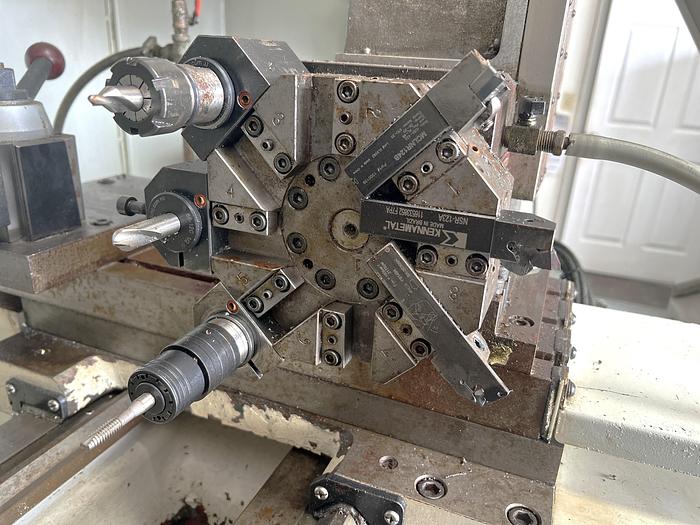

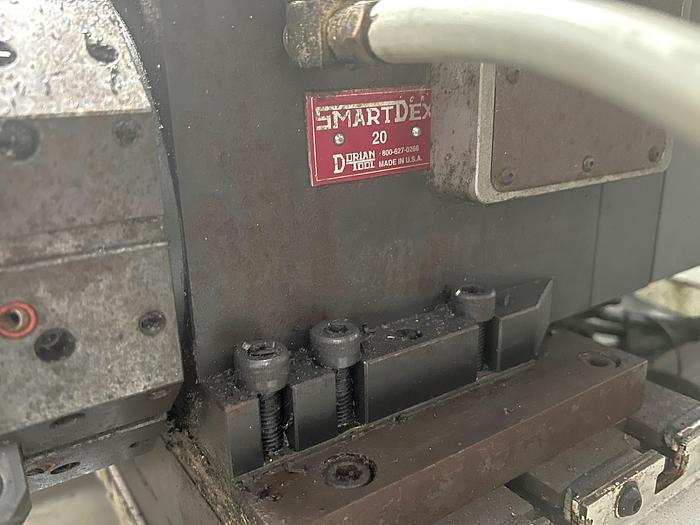

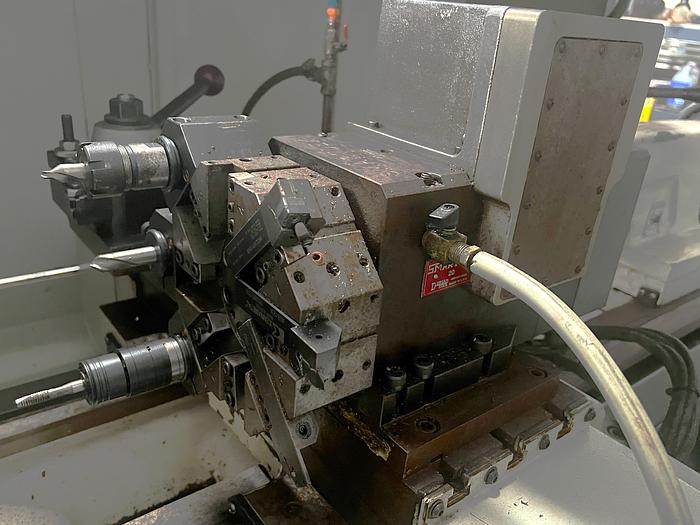

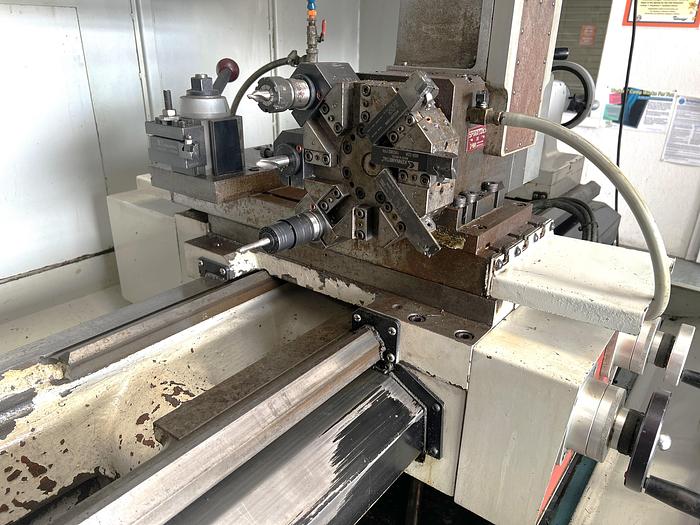

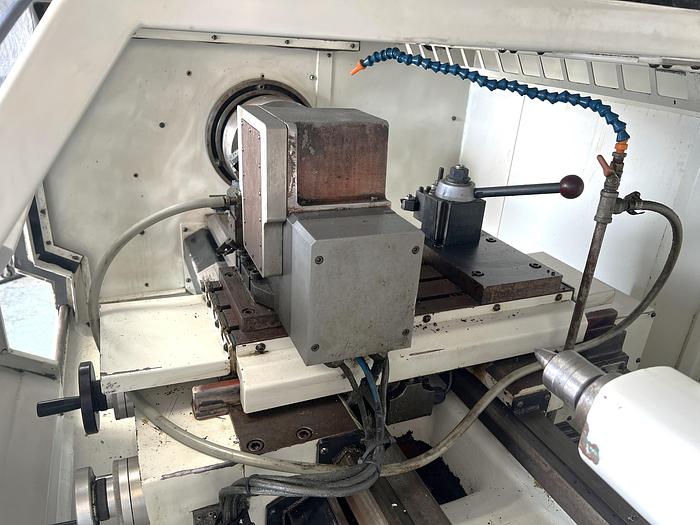

Dorian SmartDex 20 Eight Station Indexable Turret

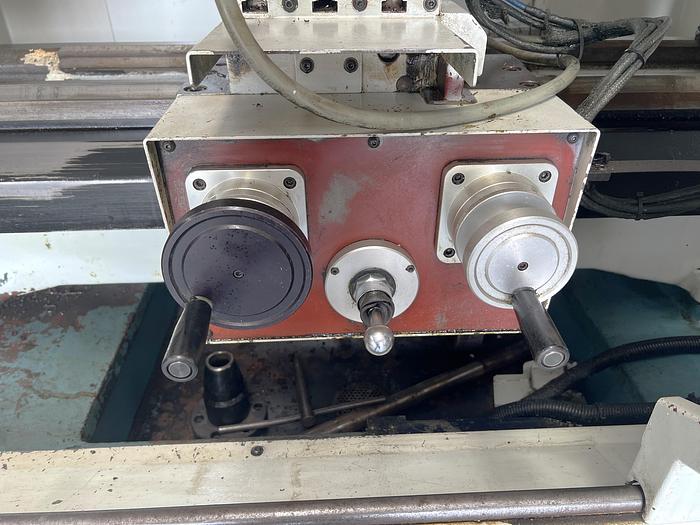

Electronic Hand Wheels for Manual Operation

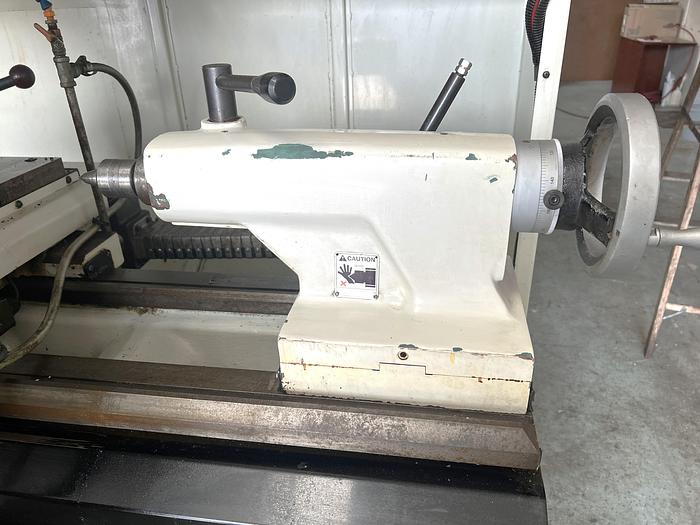

Tailstock
Coolant System with Pump
Programmable Spindle Speed
Speed Override of Programmed Spindle Speed
Constant Surface Speed
Feed Override of Programmed Feedrate and Rapid
Precision Ground Ballscrews
Limit Switches in X and Z Axis'
Flash Drive Interface

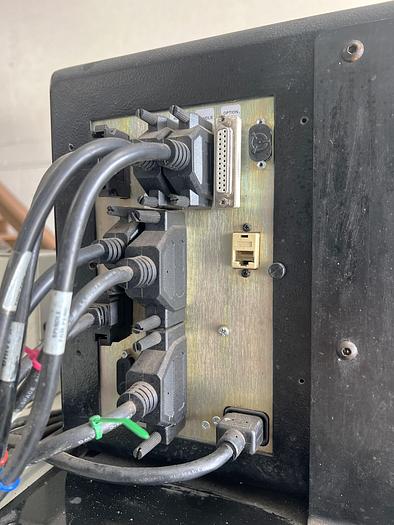

RS 232 Port Interface
64 MB RAM
All Available Tooling included Boring Bar Holder and Turning Wedges, Some Inserts and Perishable Tooling
Backup Disk

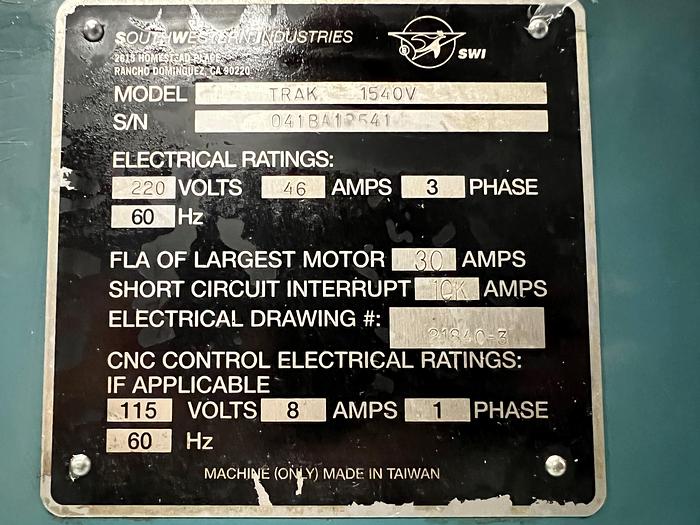

Wired 220V / 3 Phase Power
Specifications
| Manufacturer | Southwestern Industries |
| Model | Trak TRL-1540V |
| Year | 2004 |
| Condition | Used |
| Stock Number | 119161 |

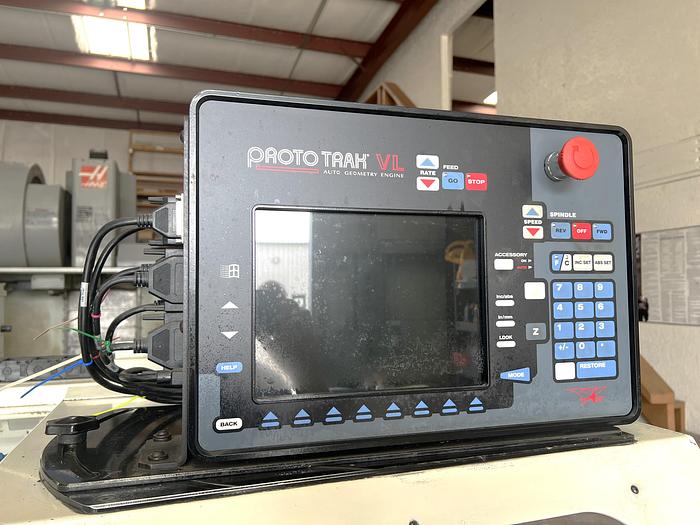

| Machine Control | ProtoTrak VL Series Control |
| Chuck size | 8" 3-Jaw Chuck / 5C Collet Chuck |
| Swing over saddle wings | 15" |
| Swing over bed / cross slide | 15" / 6.625" |
| Distance between centers | 40" |
| X-axis travel | 11.5" |
| Height of centers | 8" |
| Spindle nose / bore | A2-5" / 2.125" |

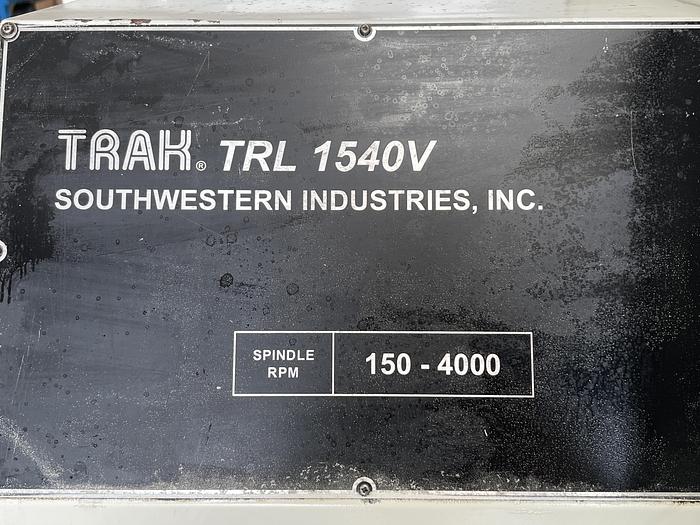

| Spindle speed | 150 - 4,000 RPM |
| Spindle motor 30 min. / cont. | 10 HP |
| Turret type | 8 Station Indexable Turret / Tool Post |
| Tailstock quill travel | 6.5" |
| Tailstock quill dia. / center | 2.375" / MT#4 |
| Machine dimensions lxwxh | 90" x 55" x 73" |
| Machine weight | 4,650 Lbs |
