2005 YCM XV1020A
No longer available
2005 YCM XV1020A
$28,950 (USD)
Location:Oregon
Description

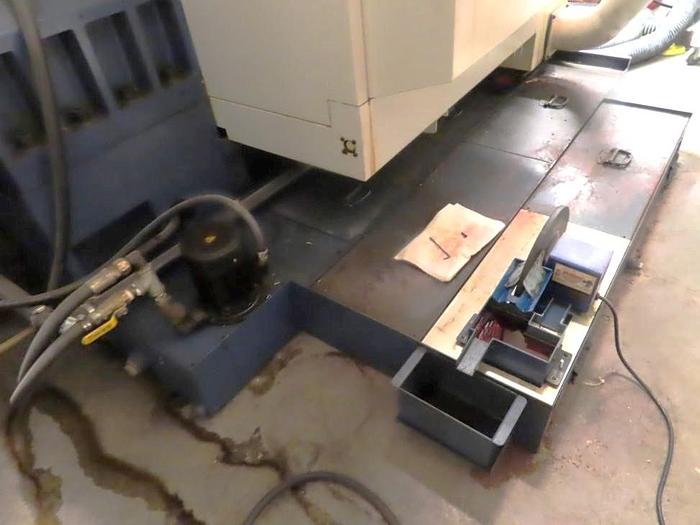

Auger Style Chip Conveyor
24 Station Side Mounted Tool Changer
Remote Jog Handle
Rigid Tapping
Spindle Chiller
3.5" Floppy Disk Interface
RS 232 Port Interface
Coolant System with Tank & Pump with Skimmer
Work Light
3 Color Machine Status Condition Lights
Linear Guide Rails
Contour Control
Coordinate Rotation
Onboard Conversational Programming
Considerable Tooling
-(3) Matched Height Vices

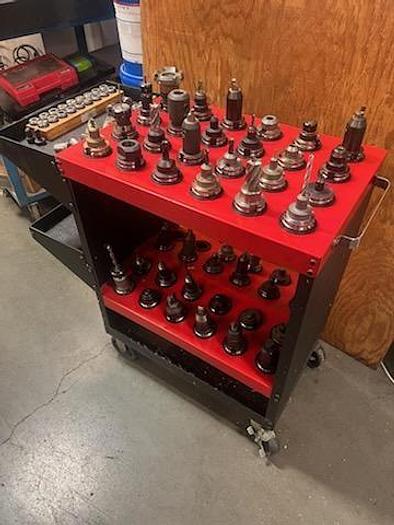

-(46) CAT 40 Tool Holders

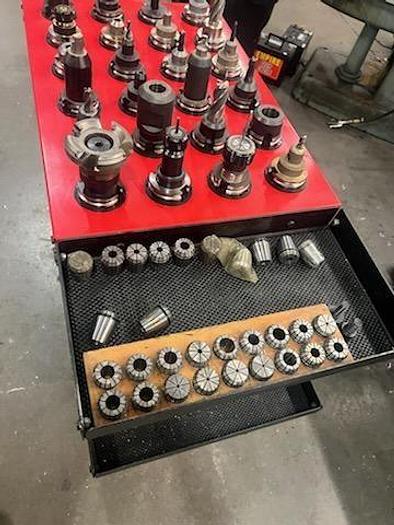

-(30) Collet Set
All Manuals
Wired 220V Electrics
**Manufactured New in December of 2005, Delivered in 2006**
**Machine Runs Very Good, Owner is Closing Shop to go back to Teaching**
**Spindle Rebuilt in 2020, Power Drawbar rebuilt in 2023**
Specifications
| Manufacturer | YCM |
| Model | XV1020A |
| Year | 2005 |
| Condition | Used |
| Stock Number | 119162 |
| Machine Control | Fanuc MXP-200i |
| Table Size | 44.1" x 20.5" |
| Maximum Weight on Table | 1,100 lbs. |
| X-Axis Travel | 40.2" |
| Y-Axis Travel | 20.5" |
| Z-Axis Travel | 21.3" |
| Spindle taper | CAT #40 |
| Spindle Speed | 45 - 10,000 RPM |
| Spindle Motor | 20 HP |
| Number of Tool Positions | 24 Station Side Mounted ATC |
| Rapid Traverse Rates | 1417 IPM |
| Cutting Feedrates | 590 IPM |
| Machine Dimensions | 119" x 100" x 120" |
| Machine Weight | 12,000 lbs. |
