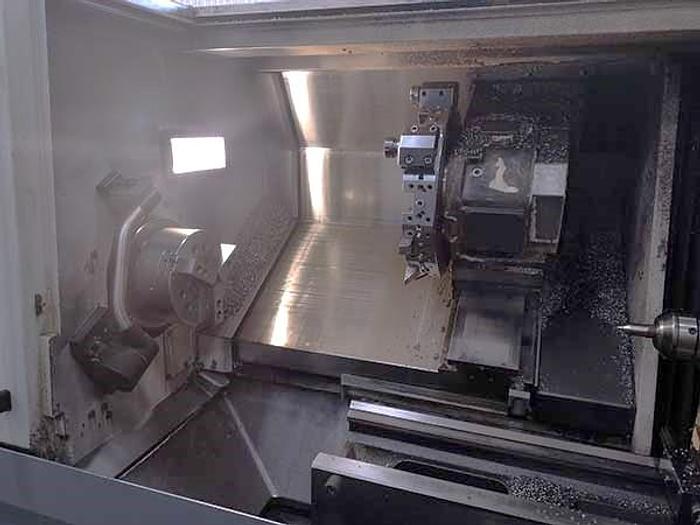

2012 Okuma Genos L400-e
2012 Okuma Genos L400-e
$49,500 (USD)
Location:Illinois
orCall (863) 439-6066
Description
10" 3 Jaw Hydraulic Chuck
Tool Presetter

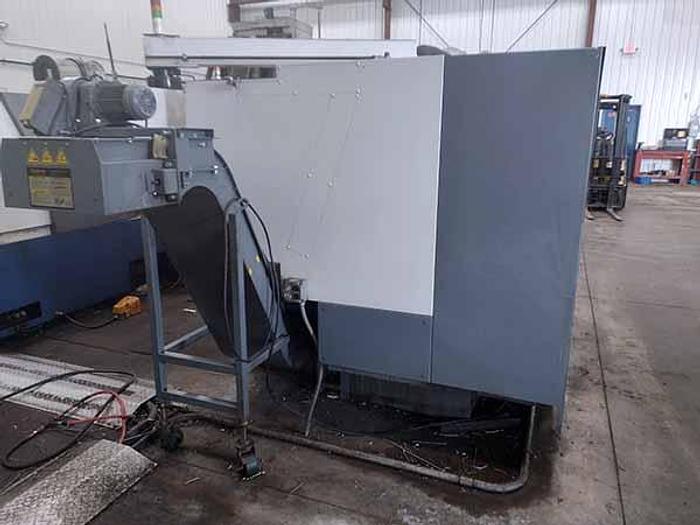

Chip Conveyor
Tailstock
IGF Conversational Programming
USB Port Interface
RS 232 Port Interface
Integral Spindle Motor Design
Coolant Tank with Pump
All Available Tool Blocks
All Available Manual
Specifications
| Manufacturer | Okuma |
| Model | Genos L400-e |
| Year | 2012 |
| Condition | Used |
| Stock Number | 119171 |

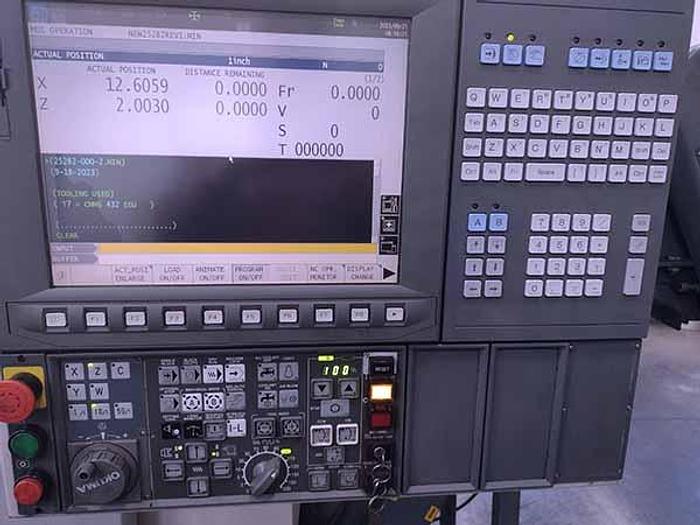

| Machine Control | OSP P300L-R Control |
| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing | 20.47" |
| Maximum Turning Diameter | 12.99" |
| Maximum Machining Length | 43.3" |
| X-Axis Travel | 9.05" |
| Z-Axis Travel | 45.03 |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.15" / 2.7" |
| Spindle Speed | 30 - 3,000 RPM |
| Spindle Motor | 20 HP |

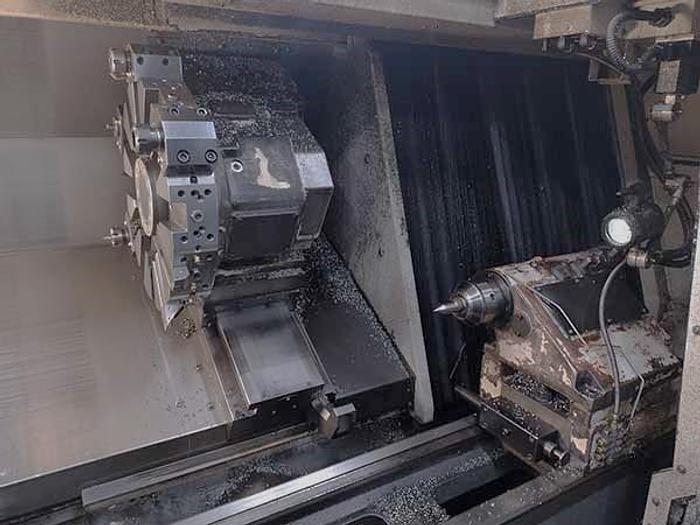

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X/Z | 787 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.54" / 3.94" / MT #5 |
| Machine Dimensions LxWxH | 140" x 85" x 77" |
| Machine Weight | 14,330 lbs. |
