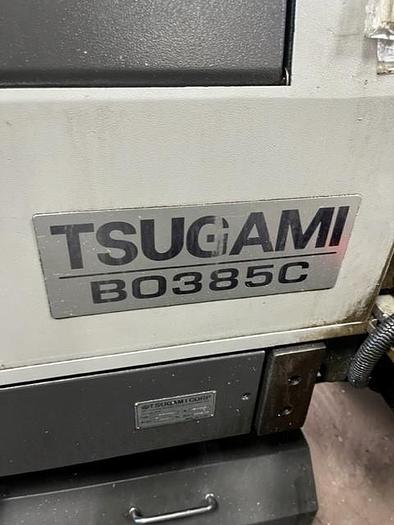

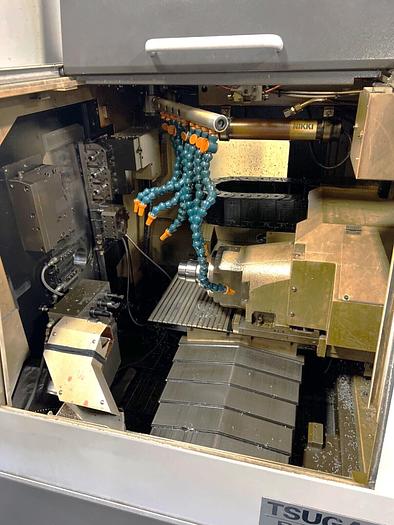

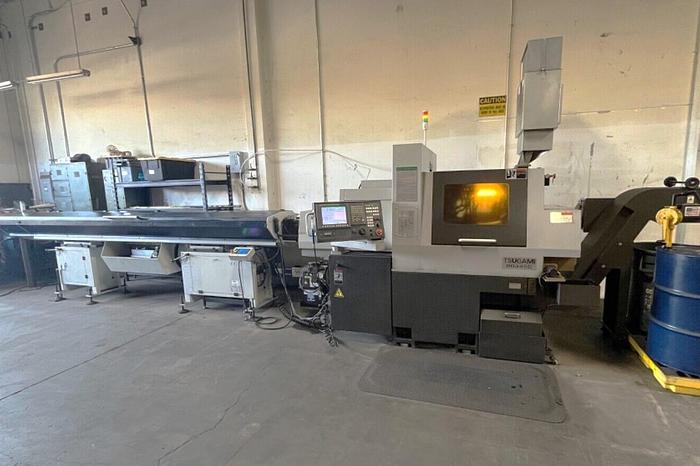

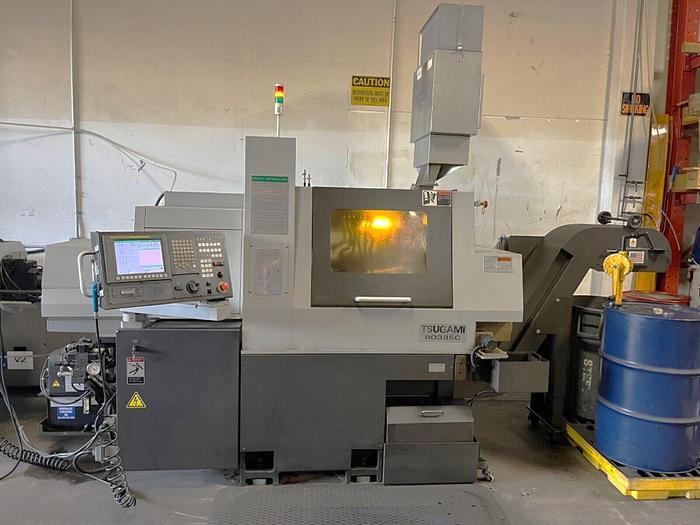

2018 Tsugami B0385C Swiss Style CNC Lathe

2018 Tsugami B0385C Swiss Style CNC Lathe

$109,950 (USD)

Location:California

orCall (863) 439-6066

Description

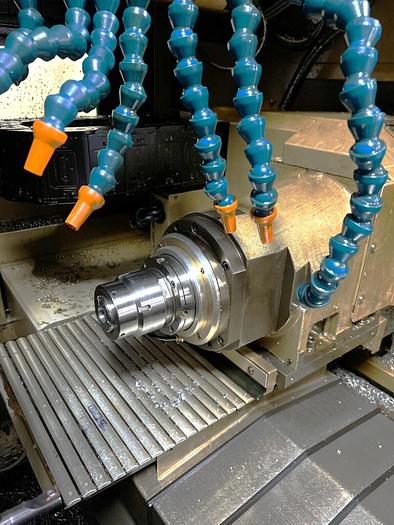

Subspindle

Milling/Drilling Capability

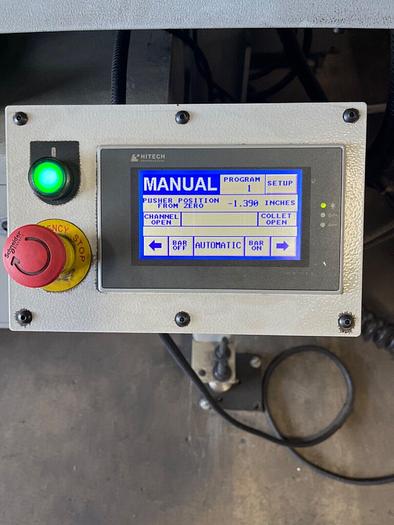

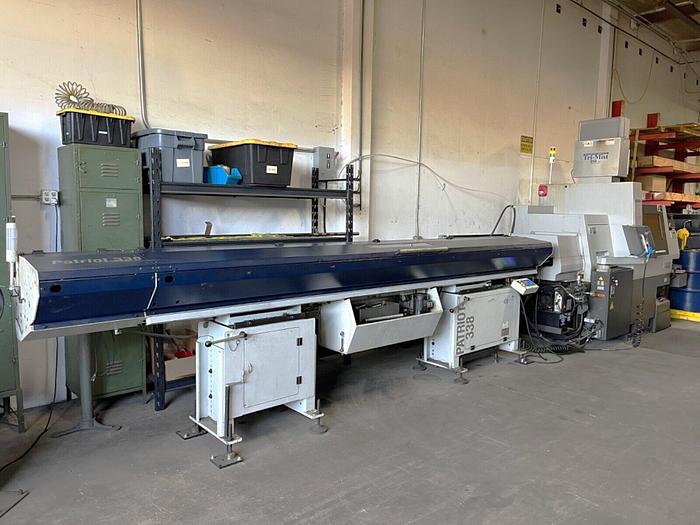

Edge Technologies Patriot 338 Autoload Style Barfeed System

2000 PSI High Pressure Coolant System

Parts Exit Conveyor

Chip Conveyor

Firetrace Fire Suppression System

Tri Mist 850 Mist Collection Unit

3 Color Machine Status Condition Lights

Color LCD Monitor

Miscellaneous Liners and Tooling

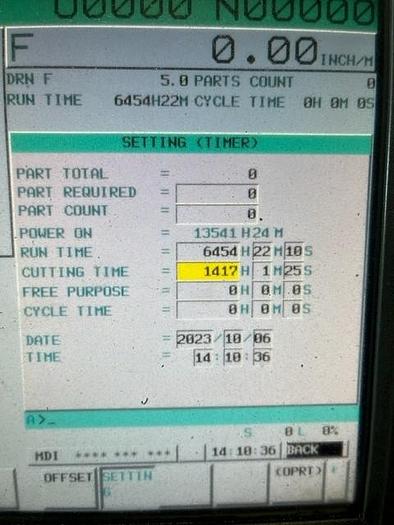

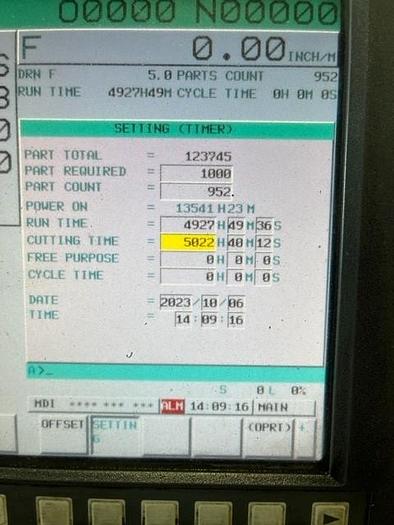

**Power On Time 13,541 Hours**

**Main Spindle Operation Hours 4,927 / Cutting Hours 6,454**

**Subspindle Operation Hours 5,022 / Cutting Hours 1,417**


**Stationary head that allows for greater rigidity and great for shorter parts**

**This machine only used oil for coolant**

**Manufactured New in March of 2018**

Specifications

ManufacturerTsugami
ModelB0385C Swiss Style CNC Lathe
Year2018
ConditionUsed
Stock Number119177

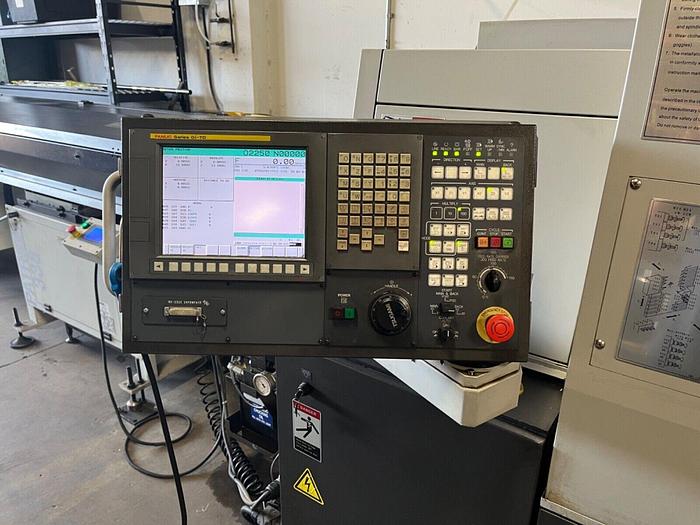

Machine ControlFanuc Oi-TD
Maximum Machining Diameter1.5"
Maximum Machining Length9.84"
C Axis Spindle Rotation.001 Degree

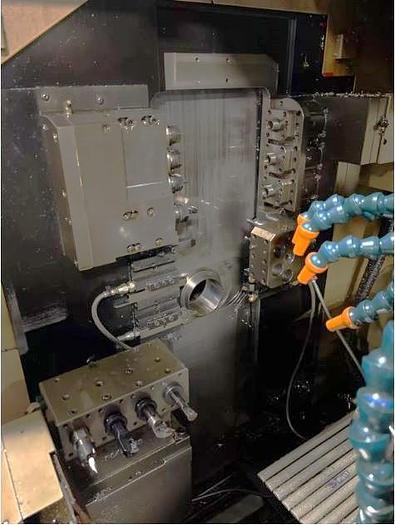

Backworking Tools4
Front End Working Tools5
Live Tool Positions Main Spindle7
Turning Tools7
Main & Subspindle Speeds6000 RPM / 7000 RPM
Spindle Motor15 HP
Subspindle Motor7.5 HP
Live Tool Speed200- 5000 RPM
Machine Dimensions LxWxH109"x59.6"x80.7"
Machine Weight10,692 lbs
