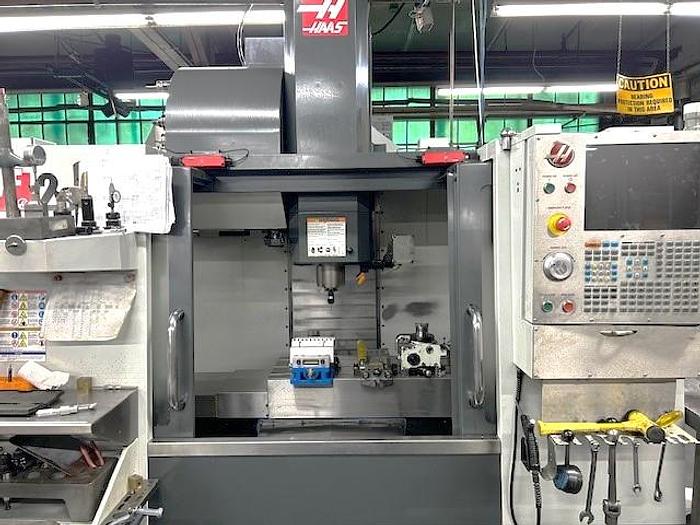

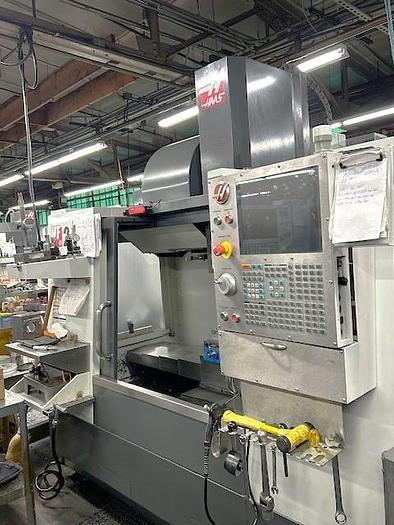

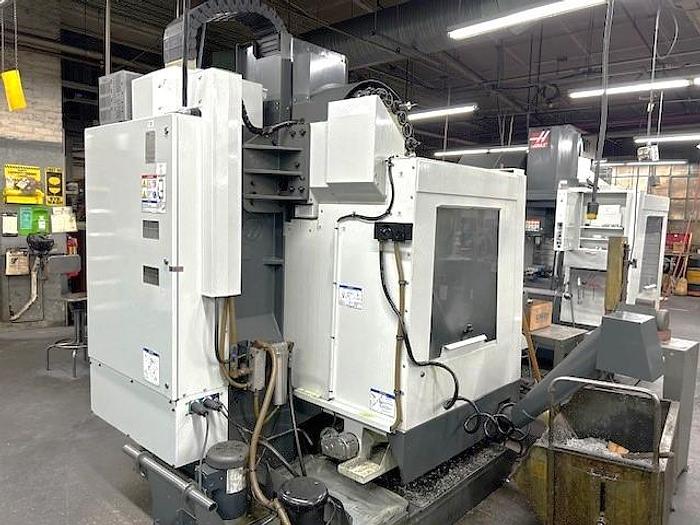

2013 Haas VF2SS
No longer available
2013 Haas VF2SS
Location:New York, NY
Description
24+1 Position Side Mounted Tool Changer
4th Axis Drive & Wiring
Haas Probing Package
Programmable Coolant Nozzle
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Intuitive Programming System
Auger Style Chip Conveyor
USB Port Interface
RS 232C Port Interface for DNC Operation
Wired 195-260V Electrics
**4th Axis indexer in photo is NOT included with machine**
Specifications
| Manufacturer | Haas |
| Model | VF2SS |
| Year | 2013 |
| Condition | Used |
| Stock Number | 119195 |
| Table size | 36"x14" |
| Max table load | 1,500 lbs |
| X axis travel | 30" |
| Y axis travel | 16" |
| Z axis travel | 20" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4" - 24" |
| Number of tool positions | 24 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 88" x 93" x 106"H |
| Machine weight (approximately) | 9000 lbs. |
