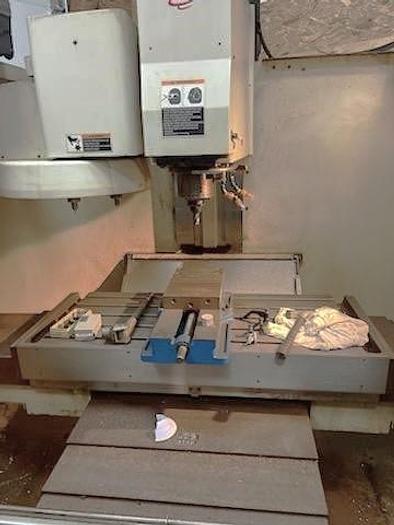

2000 Fadal VMC4020A HT
2000 Fadal VMC4020A HT
Contact us for price
Location:Ohio
orCall (863) 439-6066
Description
21 Station Tool Changer
Boxed Ways on Z Axis
Linear Ways on X and Y Axis 2 Speed Spindle Drive
High Torque Motor RS 232 Port Interface
Coolant System with Tank & Pump

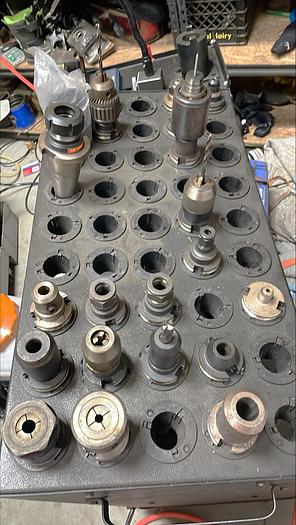

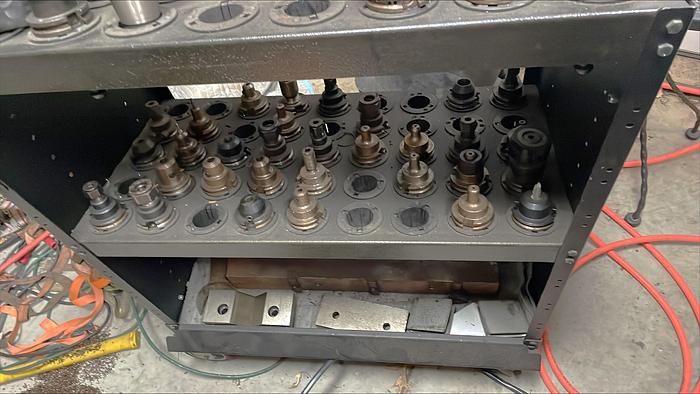

Some Tooling Included
Wired 230/440V Electrics
All Available Manuals
**Power On Hours 2,000**
**Tooling Available at additional Cost**
Specifications
| Manufacturer | Fadal |
| Model | VMC4020A HT |
| Year | 2000 |
| Condition | Used |
| Stock Number | 119196 |

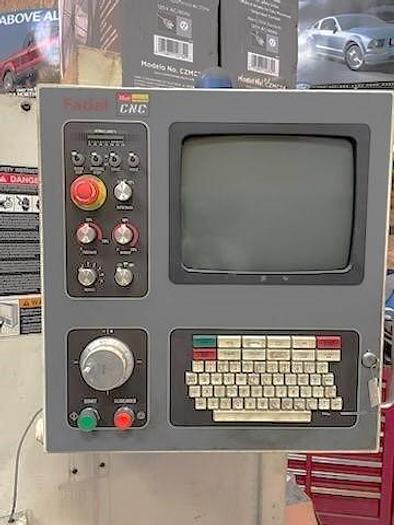

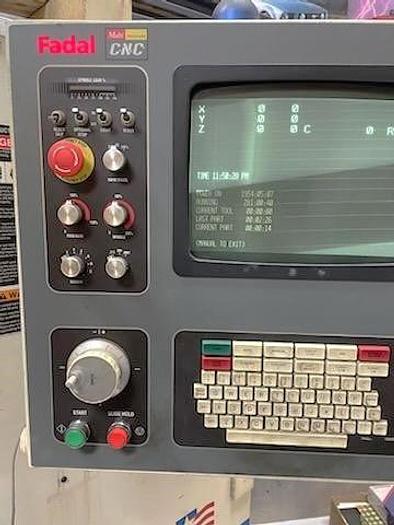

| Control | Fadal Multi Processor CNC Control |
| Table Size | 48" x 20" |
| Maximum Table Load | 3,000 lbs. |
| Distance Spindle Nose to Table Top | 4" - 24" |
| X-Axis Travel | 40" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 20" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 7,500 rpm |
| Spindle Motor | 22.5 HP |
| Tool Magazine Capacity | 21 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 4.5" / 15" / 15 lbs |
| Rapid Traverse Rates (X, Y, Z) | 800 IPM |
| Machine Dimensions LxWxH | 116" x 87" x 104" |
| Machine Weight | 11,550 lbs. |
