2007 Hyundai-Kia KH80G
No longer available

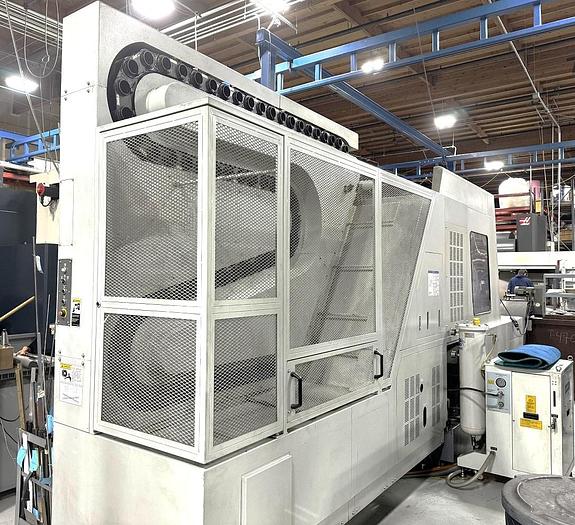

2007 Hyundai-Kia KH80G
Location:California
Description
2 Pallet Changer System B Axis Rotary Table with 1 Degree Indexing 80 Station Tool Changer
Renishaw Intuitive Probing System Coolant Through the Spindle Chip Conveyor Air Blast on Spindle Rigid Tapping Boxed Way Design Oil Chiller Helical Interpolation Backround Editing Automatic Lubrication Tool Life Management
Card Interface
RS 232 Port Interface
Wired 220V Electrics
Specifications
| Manufacturer | Hyundai-Kia |
| Model | KH80G |
| Year | 2007 |
| Condition | Used |
| Stock Number | 119207 |

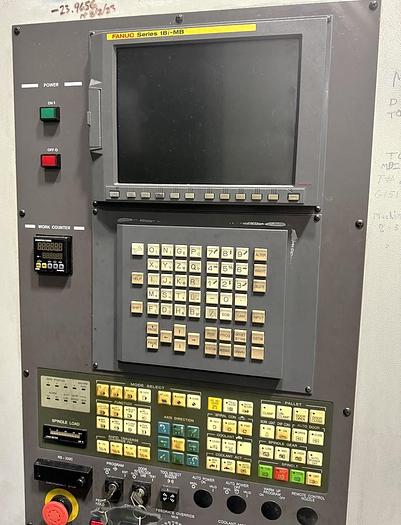

| Control | Fanuc 18i-MB |
| Pallet Size / Number of Pallets | 31.5" x 31.5" / 2 Pallets |
| Maximum Table Load | 4,850 lbs. |
| Maximum Part Size (D x H) | 45.3" x 45.3" |
| B Axis Table Indexing | 1 Degree Indexing of Rotary Table |
| X-Axis Travel | 49.2" |
| Y-Axis Travel | 39.3" |
| Z-Axis Travel | 33.4" |
| Spindle Taper | CAT #50 |
| Spindle Speeds | 4,500 RPM |
| Spindle Motor | 35 HP |
| Spindle Transmission | 2 Speed Gearbox |
| Number of Tool Positions | 80 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 9.6" / 19.7" / 59.5 lbs. |
| Rapid Traverse Rates | 709 IPM |
| Machine Dimensions | 217" x 129" x 127" |
| Machine Weight | 48,865 lbs. |
