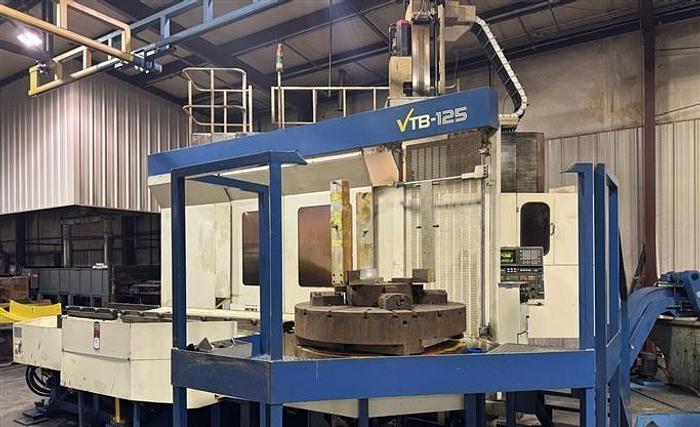

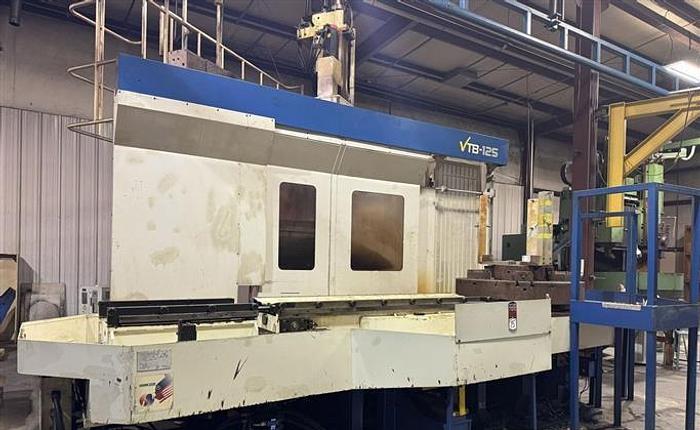

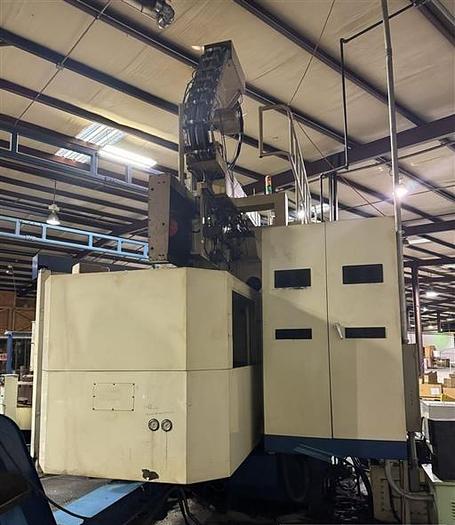

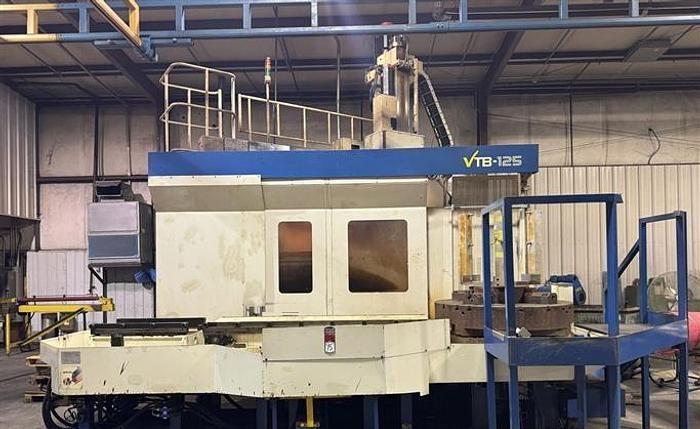

2000 Hankook VTB-125C with Pallet Changer and Live Tooling
2000 Hankook VTB-125C with Pallet Changer and Live Tooling
$99,500 (USD)
Location:Pennsylvania
orCall (863) 439-6066
Description

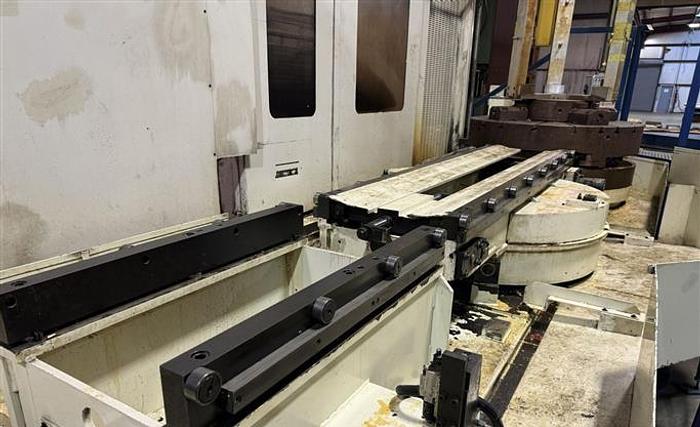

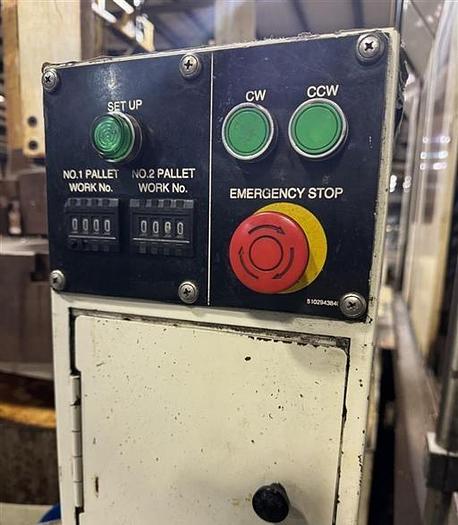

2 Pallet Changer

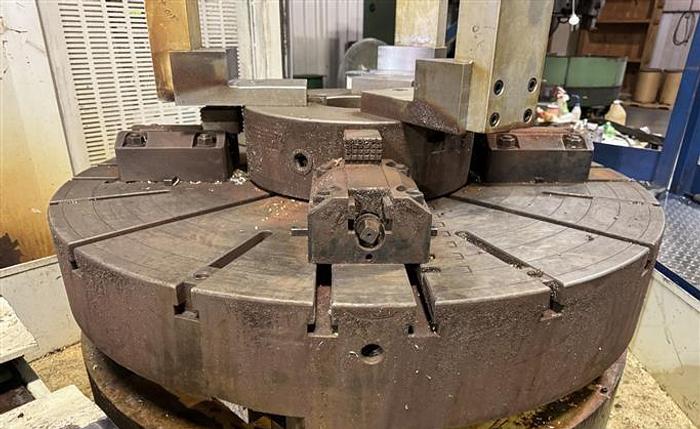

49" 4 Jaw Chucks on each Pallet
Live Milling/Drilling Capability
C Axis Table Incremental Movement

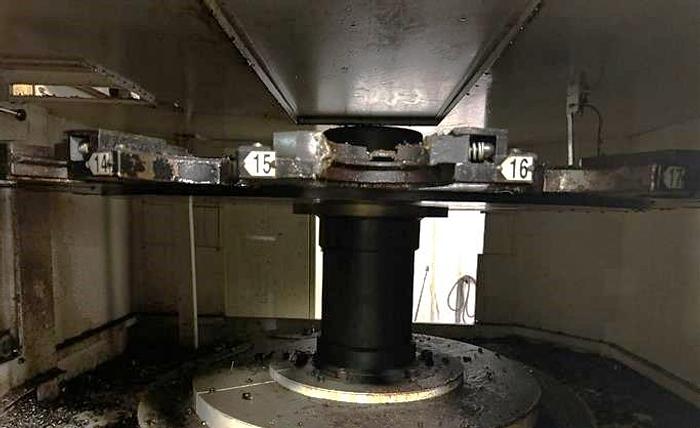

24 Station Tool Changer System

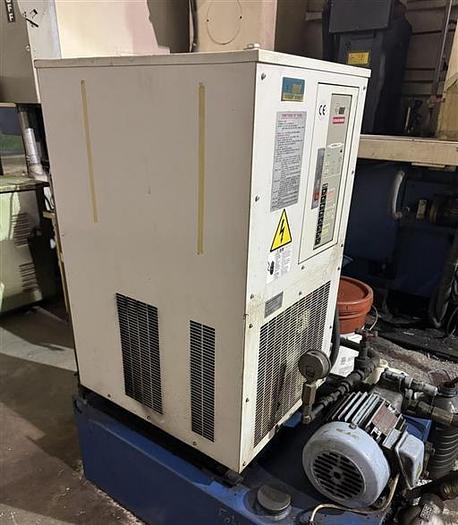

Coolant System

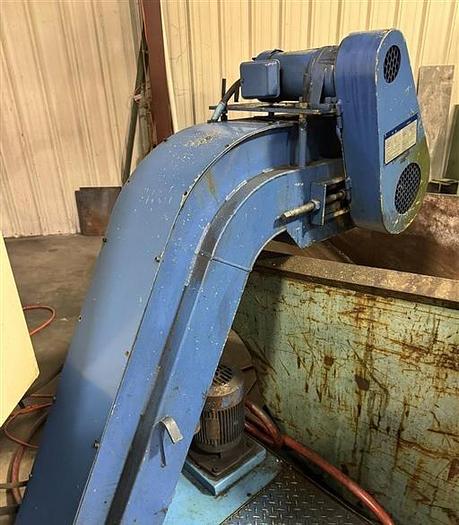

Chip Conveyor
Operator Platform
Specifications
| Manufacturer | Hankook |
| Model | VTB-125C with Pallet Changer and Live Tooling |
| Year | 2000 |
| Condition | Used |
| Stock Number | 119236 |

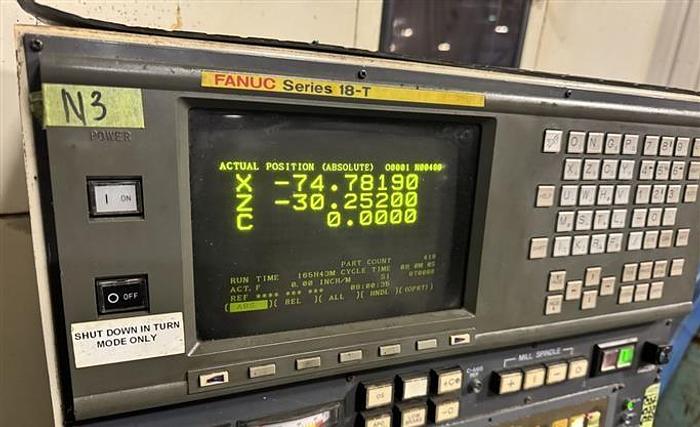

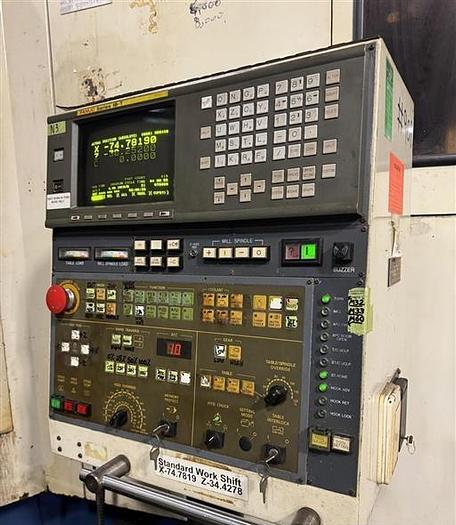

| Machine Control | Fanuc 18T Control |
| Table Size | 49.21" |
| Maximum Swing | 62.99" |
| Maximum Turning Diameter | 62.99" |
| Maximum Turning Height | 35.43" |
| Maximum Weight on Table | 17,620 lbs. |
| RAM Cross Section | 8.66" x 8.66" |
| X-Axis Travel | 62.99" |
| Z-Axis Travel | 35.43" |
| Table Indexing | 0.001 Degree |
| Spindle Taper | ISO No. 50 |
| Table Speed | 0.9 - 360 RPM - 2 Speeds |
| Table Motor | 60 HP |
| Milling Spindle Speed | 15 - 1,500 RPM |
| Milling Motor | 25 HP |
| Rapid Traverse Rates X / Z | 472 IPM |
| Machine Dimensions | 192" x 153" x 185" |
| Machine Weight | Not Available |
