2005 Haas SL-10T with Haas Servo 300 Barfeeder
No longer available
2005 Haas SL-10T with Haas Servo 300 Barfeeder
Location:Oregon
Description
6.5" Hydraulic Chuck

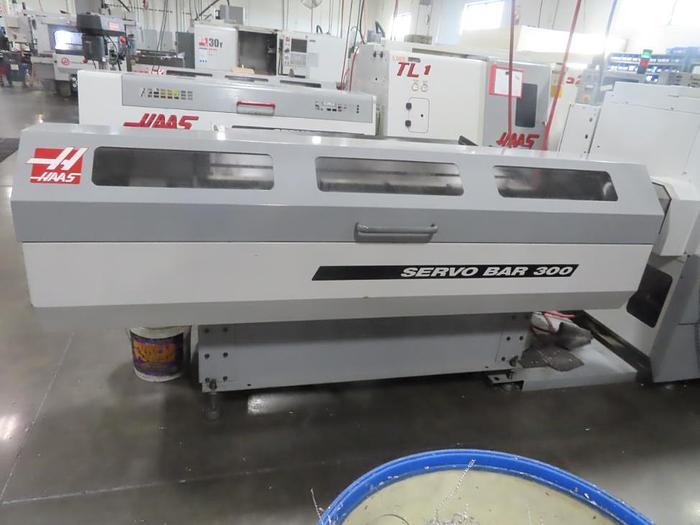

Haas Servo 300 Barfeeder
Parts Catcher
Auger Style Chip Conveyor
Tool Presetter

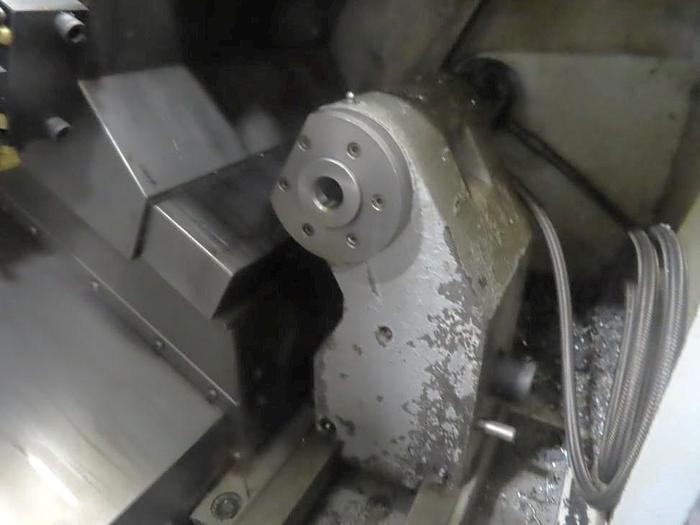

Tailstock
Foot Pedals
Rigid Tapping

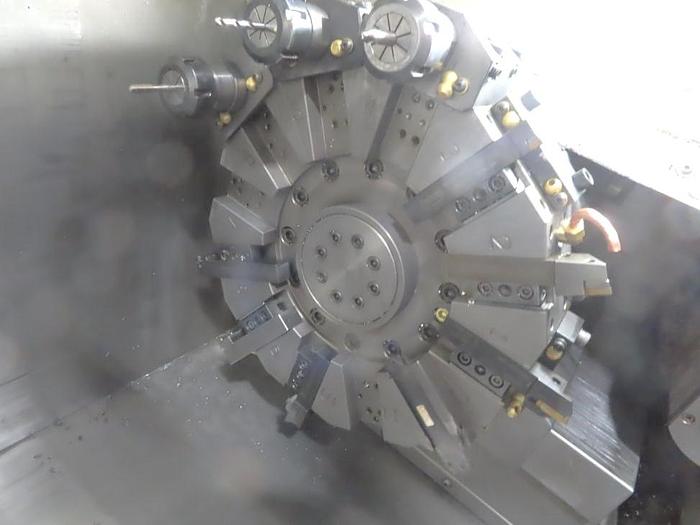

12 Station Block Turret
Wired 208/230V 3 Phase
**One Owner machine, under power and available for inspection, currently making parts**
**Run Time Hours 10,738**
Specifications
Manufacturer | Haas |
Model | SL-10T with Haas Servo 300 Barfeeder |
Year | 2005 |
Condition | Used |
Stock Number | 119239 |

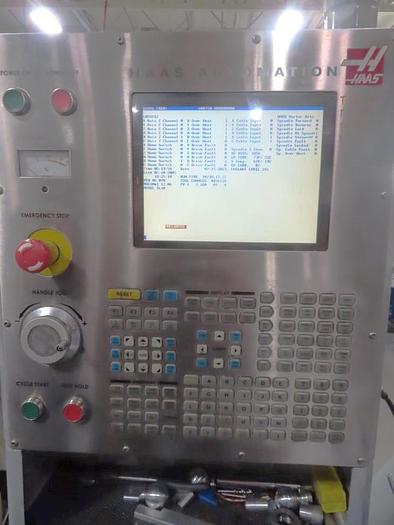

Machine Control | Haas CNC Control |
Chuck Size | 6.5" /1.75" Thru hole |
Maximum Swing | 16.25 |
Maximum Swing Over Cross Slide | 8" |
Maximum Machining Diameter | 11" |
Distance Between Centers | 16.5" |
X-axis travel | 6.25" |
Z-Axis Travel | 14" |
Spindle Speeds | 6,000 rpm |
Spindle Nose / Spindle Bore | A2-5 / 2.31" |
Spindle Motor | 15 HP |
Number of Turret Positions | 12 Station Block Type |
Rapid Traverse Rates | 1,200 ipm |
Tailstock Center / Diameter | #3 MT / NA |
Tailstock Quill Travel | 4" |
Machine Dimensions LxWxH | 96"x54"x72" |
Machine Weight | 6,000 lbs |
