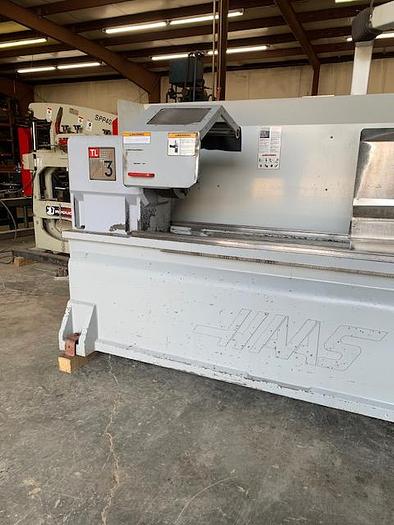

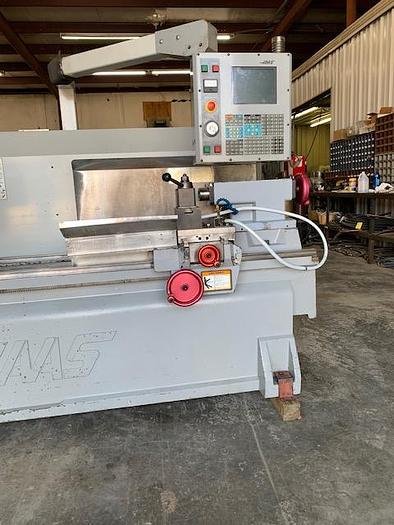

2004 Haas TL-3
2004 Haas TL-3
Contact us for price
Location:Tennessee
orCall (863) 439-6066
Description
12" Manual Chuck
Tailstock

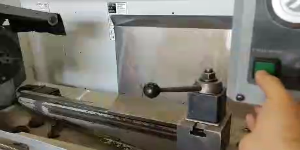

Quick Change Tool Post
Manual Hand Wheels
2-Speed Gearbox
Work Light
Memory Lock Key Switch
Coolant System with Tank & Pump
Chuck/Coolant Splash Cover
RS 232 Port Interface
Wired 208/230V Three Phase Power

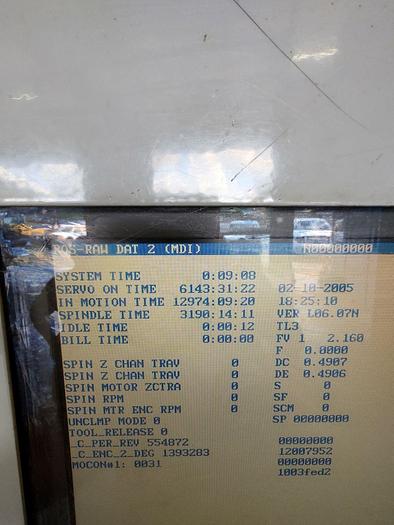

**Spindle Hours 3,190**
Specifications
| Manufacturer | Haas |
| Model | TL-3 |
| Year | 2004 |
| Condition | Used |
| Stock Number | 119253 |
| Machine Control | Haas 32 BIT |
| Chuck Size | 12" 3-Jaw |
| Maximum Swing | 20" |
| Maximum Swing Over Cross Slide | 13" |
| Maximum Machining Diameter | 20" |
| Distance Between Centers | 60" |
| X-axis travel | 16" |
| Z-Axis Travel | 60" |
| Spindle Speeds | 0-1,800 rpm |
| Spindle Nose / Bore / Bar Capacity | A2-6 / 3.5" / 3" |
| Spindle Motor | 18 hp |
| Number of Tool Positions | 4-Position Quick Change |
| Rapid Traverse Rates X/Z | 75 ipm / 150 ipm |
| Tailstock Bore Taper | #5 MT |
| Machine Dimensions LxWxH | 123"x77"x87" |
| Machine Weight | 7,624 lbs |
