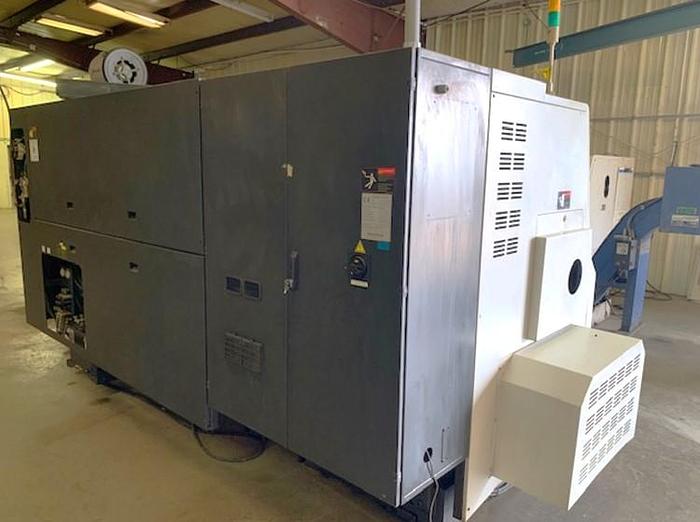

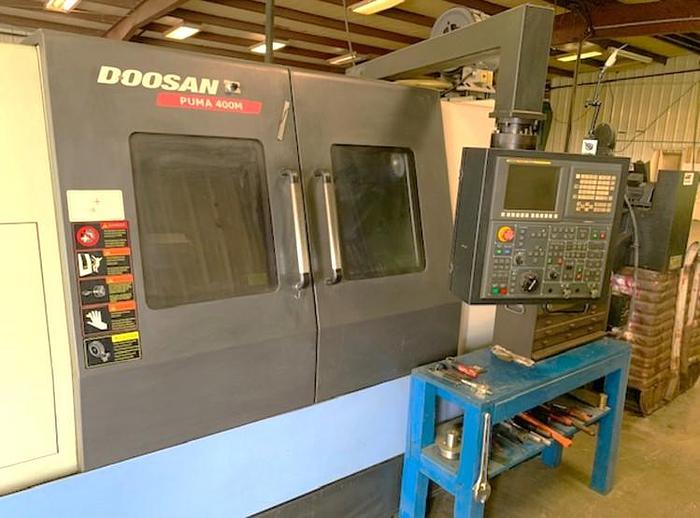

2011 Doosan Puma 400MB
2011 Doosan Puma 400MB
$132,950 (USD)
Location:Louisiana
orCall (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability

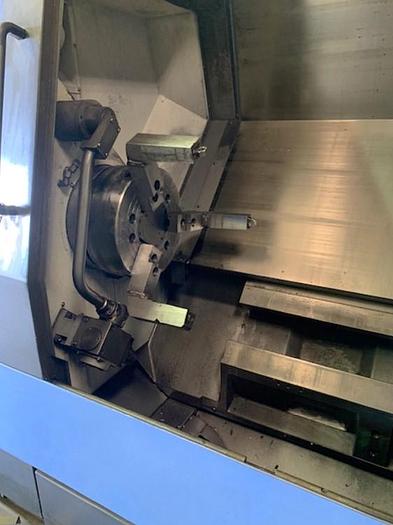

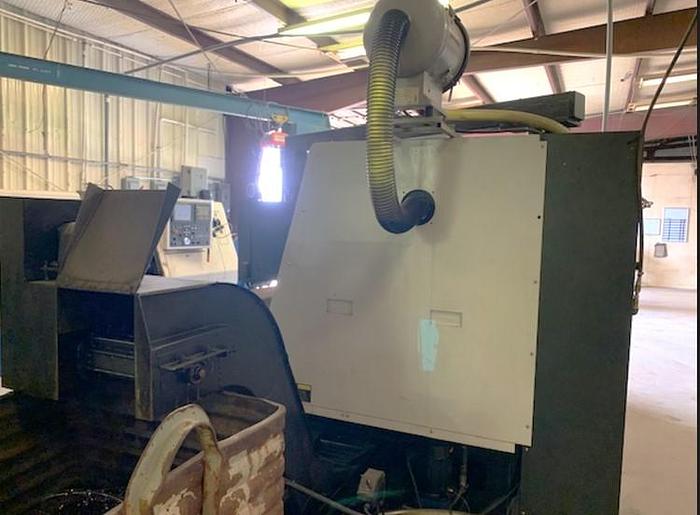

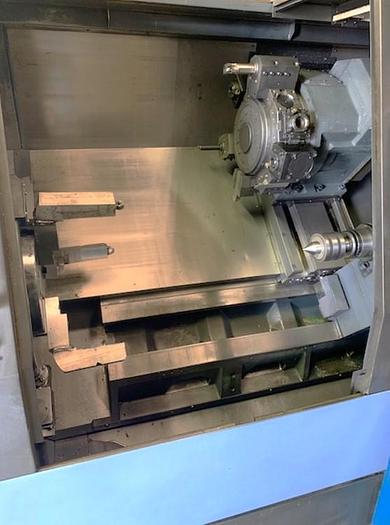

LNS Chip Conveyor 15.76" Autoblok BBN-400-140 3 Jaw Air Chuck with 5.52" Hole Through Programmable Hydraulic Tailstock
Schunk model THL-4 Hydraulic Self Centering Steady Rest (1.38" - 9.64")
Tool Presetter
Manual Guide i Programming
PCMCIA Card Interface RS 232 Port Interface
Dual Foot Pedals for Chuck and Tailstock Quill Coolant System with Tank & Pump with Upgraded 145 PSI
Machine Status Light
Boxed Way Construction on Slant Bed
Geared Headstock All Available Tooling All Available Manuals
Specifications
| Manufacturer | Doosan |
| Model | Puma 400MB |
| Year | 2011 |
| Condition | Used |
| Stock Number | 119254 |
| Control | Fanuc 0i-TD w/ Manual Guide i |
| Chuck Size | 15.76" 3 Jaw Air Chuck |
| Maximum Swing | 30.31" |
| Maximum Turning Diameter | 21.7" |
| Maximum Turning Length | 41" |
| Maximum Bar Capacity | 4.62" |
| X-Axis Travel | 14.3" |
| Z-Axis Travel | 43.5" |
| Spindle Nose / Spindle Bore | A2-11" / 5.2" |
| Spindle Speeds | 1 - 2,000 RPM |
| Spindle Motor | 50 HP |
| Live Tooling Speed / Motor | 3,000 RPM / 15 HP |
| Number of Turret Positions | 12 Position Turret - BMT75 Type |
| Rapid Traverse Rates X/Z | 630 IPM / 708 IPM |
| Tailstock Quill Diameter / Center | 4.7" / MT #5 |
| Tailstock Quill Travel | 4.7" |
| Machine Dimensions | 197" x 97" x 91" |
| Machine Weight | 20,240 lbs. |
