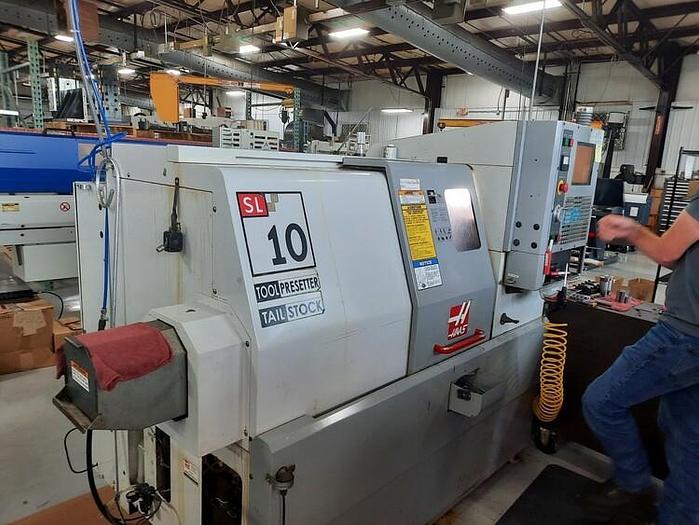

2004 Haas SL-10T
2004 Haas SL-10T
$17,950 (USD)
Location:Wisconsin
orCall (863) 439-6066
Description
Parts Catcher
Auger Style Chip Conveyor
Tool Presetter
Tailstock

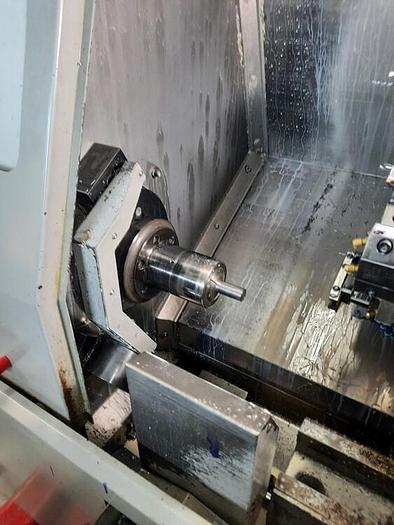

Collet Chuck
1 MB Programming Memory
Rigid Tapping
Color LCD Monitor
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
All Available Tool Blocks
Specifications
| Manufacturer | Haas |
| Model | SL-10T |
| Year | 2004 |
| Condition | Used |
| Stock Number | 119260 |

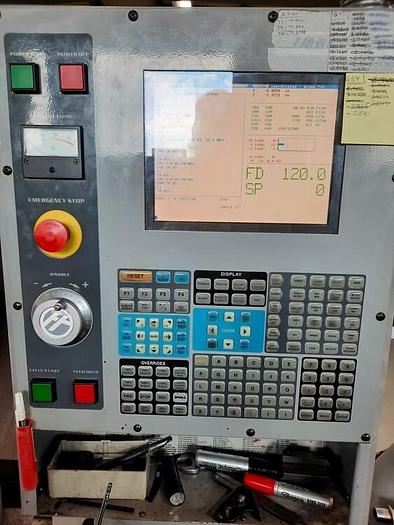

| Machine Control | Haas 32 Bit |
| Chuck Size | Collet Chuck |
| Maximum Swing | 16.25 |
| Maximum Swing Over Cross Slide | 8" |
| Maximum Machining Diameter | 11" |
| Distance Between Centers | 16.5" |
| X-axis travel | 6.25" |
| Z-Axis Travel | 14" |
| Spindle Speeds | 6,000 RPM |
| Spindle Nose / Spindle Bore | A2-5 / 2.31" |
| Spindle Motor | 15 hp |

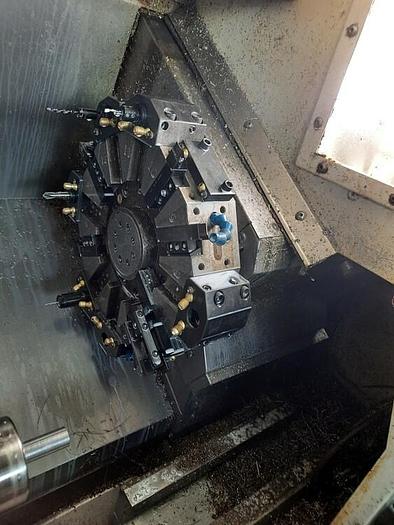

| Number of Turret Positions | 12 Station Block Turret |
| Rapid Traverse Rates | 1,200 IPM |
| Tailstock Center / Diameter | #3 MT / NA |
| Tailstock Quill Travel | 4" |
| Machine Dimensions LxWxH | 96"x54"x70" |
| Machine Weight | 6,000 lbs |
