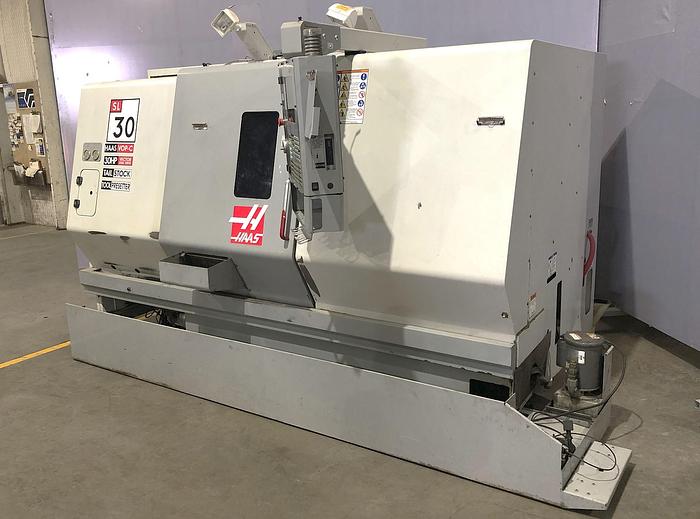

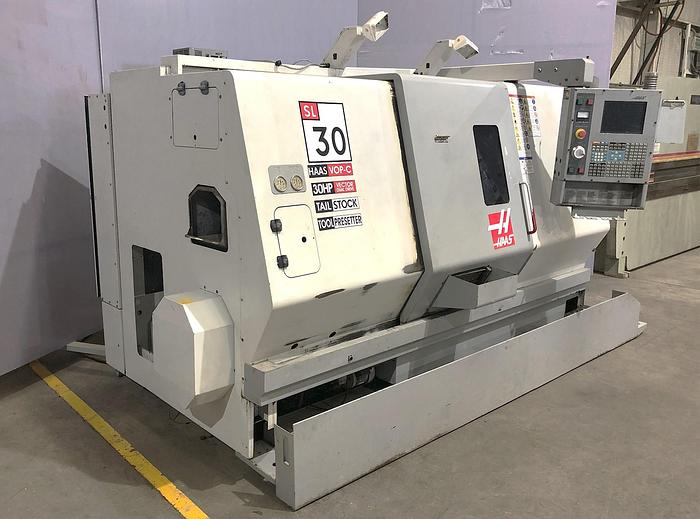

2004 Haas SL-30T
2004 Haas SL-30T
$28,500 (USD)
Location:Texas
orCall (863) 439-6066
Description

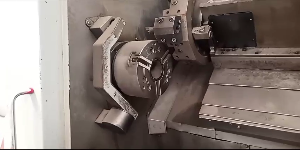

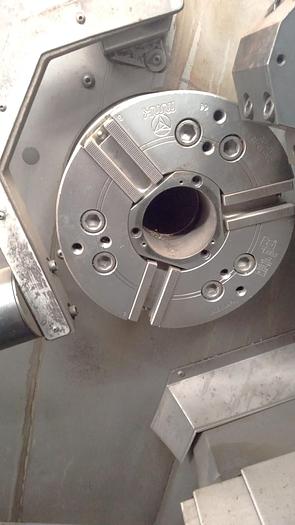

10" 3 Jaw Hydraulic Chuck
Parts Catcher
Programmable Tailstock
Tool Presetter
Rigid Tapping
Coolant System with Tank & Pump
High Intensity Lighting
220V 3 phase Electrics
All Available Manuals
All Available Tool Blocks
Specifications
| Manufacturer | Haas |
| Model | SL-30T |
| Year | 2004 |
| Condition | Used |
| Stock Number | 119270 |
| Machine Control | Haas CNC Control |
| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing | 30" |
| Maximum Swing Over Cross Slide | 14.5" |
| Maximum Cutting Diameter | 14.5" |
| Maximum Turning Length | 34" |
| Maximum Bar Capacity | 2.5" |
| Distance Between Centers | 39" |
| X-Axis Travel | 11.3" |
| Z-Axis Travel | 34" |
| Spindle Nose / Spindle Bore | A2-6" / 3.00" |
| Spindle Speeds | 20 - 3,400 RPM |
| Spindle Motor | 30 HP |
| Number of Turret Positions | 12 Station Turret - Block Style |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Body Travel / Taper | 33.5" / MT #4 |
| Machine Dimensions LxWxH | 120" x 84" x 85" |
| Machine Weight | 14,000 lbs |
