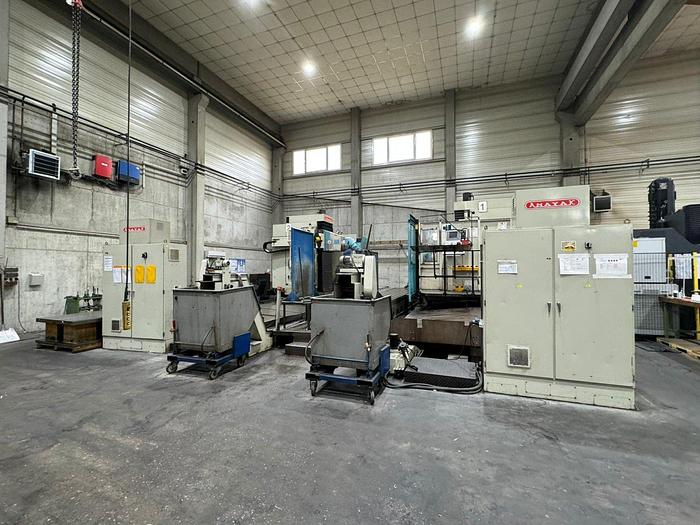

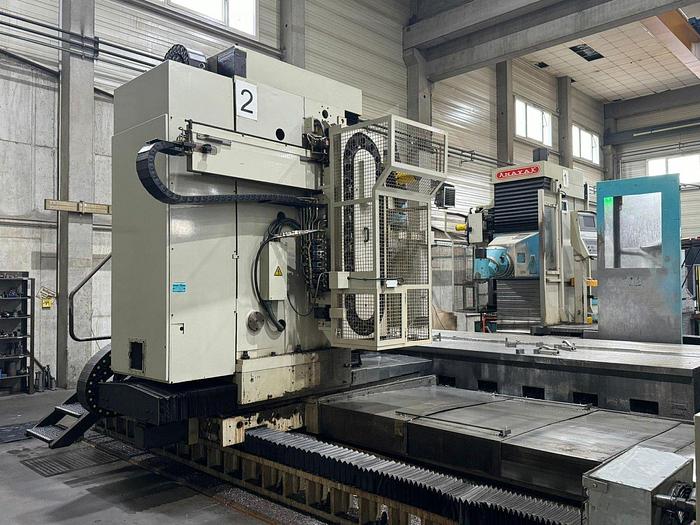

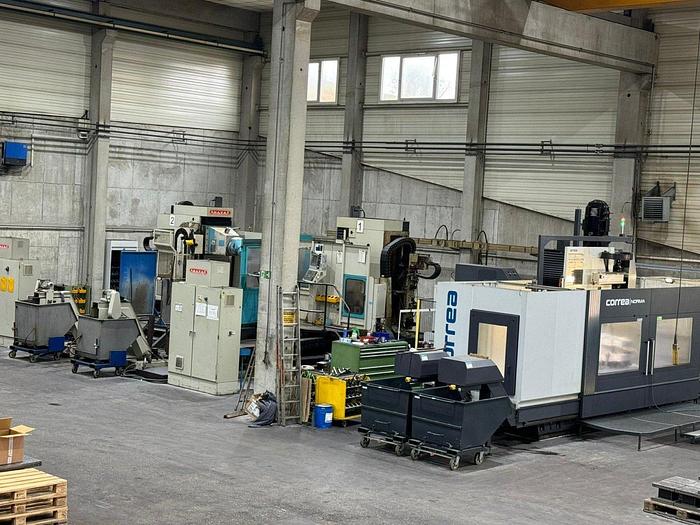

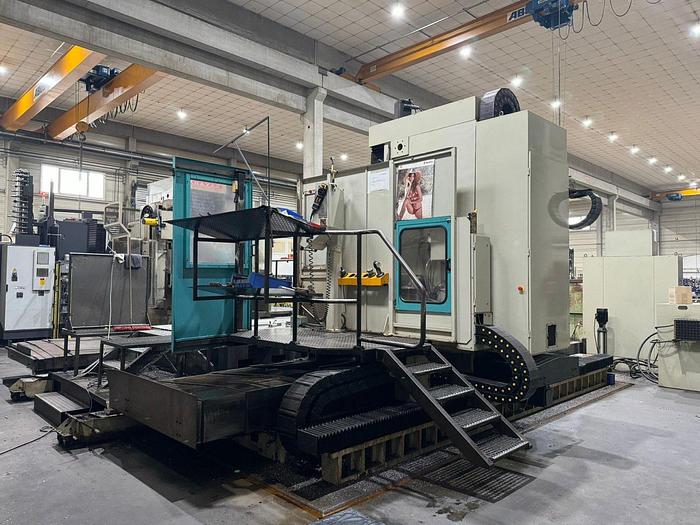

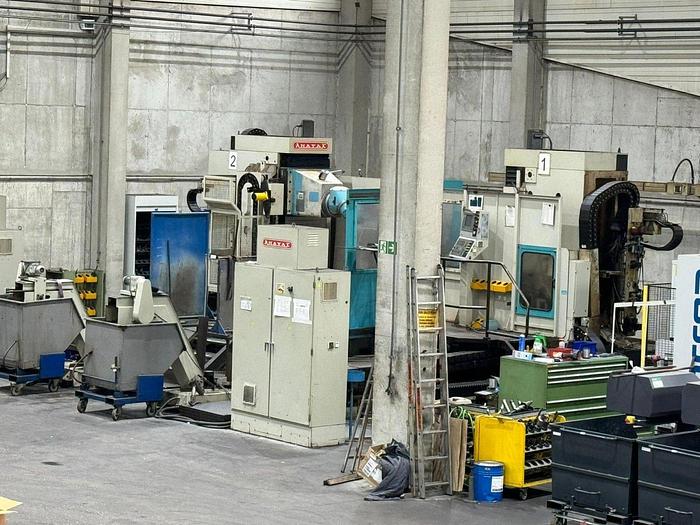

2000 Anayak HVM-5000 DUO
2000 Anayak HVM-5000 DUO
Contact us for price
Location:Germany
orCall (863) 439-6066
Description
DUO System With (2) Machines Facing Each Other With Common Table Between Them
Automatic Indexing Universal Head
30 Station Tool Magazine
Remote Jog Handle
RS 232 Port Interface
Some Tooling
All Available Manuals
Specifications
| Manufacturer | Anayak |
| Model | HVM-5000 DUO |
| Year | 2000 |
| Condition | Used |
| Stock Number | 119273 |
| Machine Control | Heidenhain TNC430 |
| Table Size | 197" x 84" |
| Maximum Table Load | 88,000 lbs. |
| X-axis travel | 170" |
| Y-Axis Travel | 47.28" |
| Z-Axis Travel | 57.5" |
| C-Axis Rotation | +0/-180 Degrees (2.5 Degree increments) |
| B-Axis Rotation | -180 / +170 Degrees (1 Degree increments) |
| Spindle Diameter | 5" |
| Spindle Taper | ISO 50 |
| Spindle Speeds | 60 - 3,000 RPM |
| Spindle Motor | 40 HP |
| Tool Magazine Capacity | 30 Position Tool Changer |
| Machine Dimensions LxWxH | 396" x 359" x 157.2" |
| Machine Weight | 88,000 lbs. |
