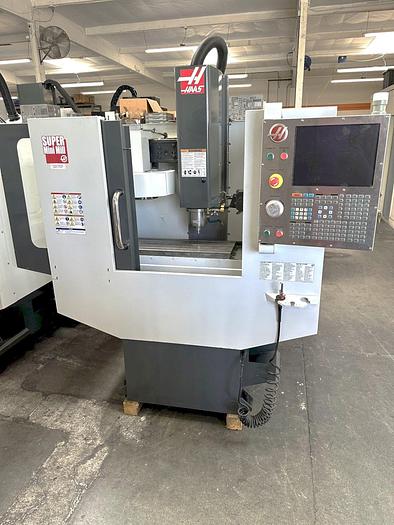

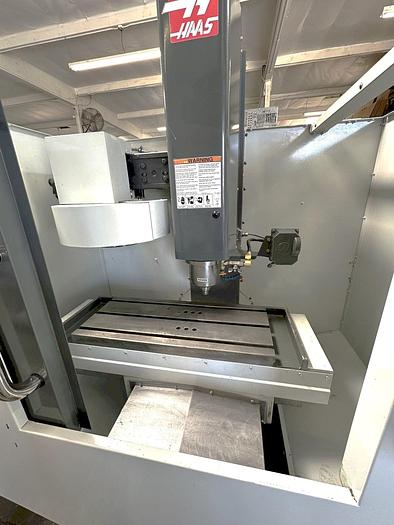

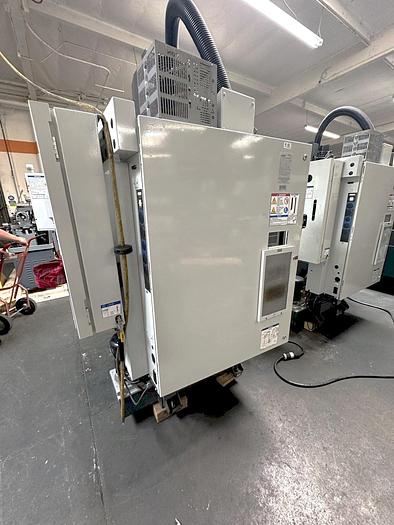

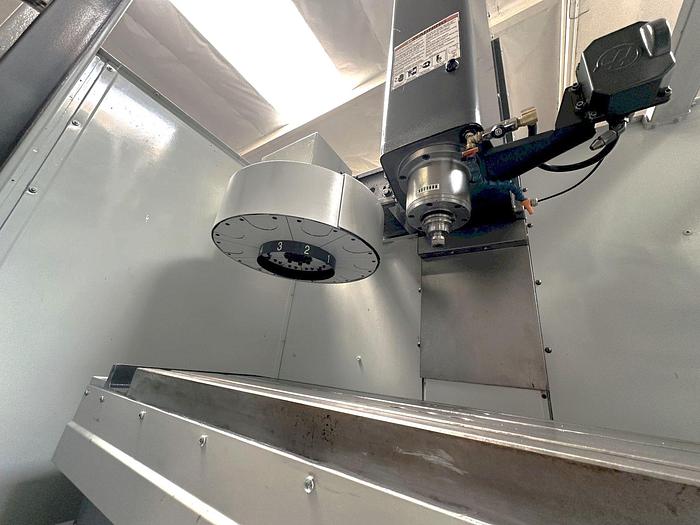

2015 Haas Super Mini Mill
2015 Haas Super Mini Mill
$31,950 (USD)
Location:California
orCall (863) 439-6066
Description
Coolant Through the Spindle
High Speed Machining
Programmable Coolant Nozzle
Coordinate Rotation & Scaling
User Definable Macros
Spindle Orientation
Expanded Programming Memory
Rigid Tapping
Early Power Failure Detection Module
USB Port Interface
RS 232 Port Interface
Work Light
Wired 195-260V Electrics
**AVAILABLE IMMEDIATELY**
**Currently Prices New with discounts at $62,571 as equipped
Specifications
| Manufacturer | Haas |
| Model | Super Mini Mill |
| Year | 2015 |
| Condition | Used |
| Stock Number | 119275 |

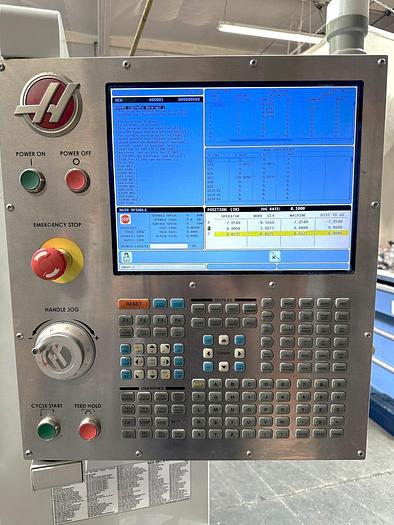

| Machine Control | Haas CNC Control |
| Table Size | 36" x 10" |
| Maximum Table Load | 500 lbs |
| X-Axis Travel | 16" |
| Y-Axis Travel | 12" |
| Z-Axis Travel | 10" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 10,000 RPM |
| Spindle Motor | 15 HP |
| Rapid Traverse Rates | 1200 IPM |
| Tool Magazine Capacity | 10 Station ATC |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Machine Dimensions LxWxH | 90" x 64" x 100" |
| Machine Weight | 5,000 lbs |
