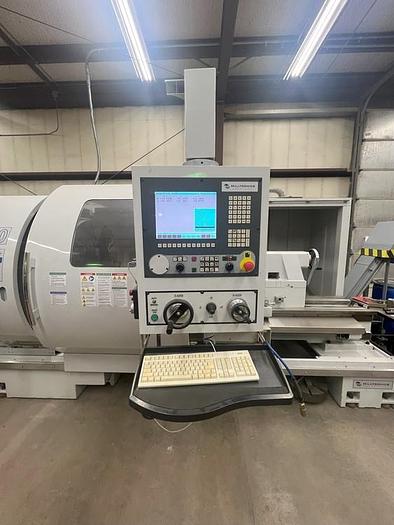

2008 Milltronics ML40/80 14" Big Bore Lathe with Tool Post, Tailstock, 36" 4 Jaw Chuck, Chip Conveyor, 500 RPM
2008 Milltronics ML40/80 14" Big Bore Lathe with Tool Post, Tailstock, 36" 4 Jaw Chuck, Chip Conveyor, 500 RPM
$109,500 (USD)
Location:Texas
orCall (863) 439-6066
Description
14" Bar Capacity

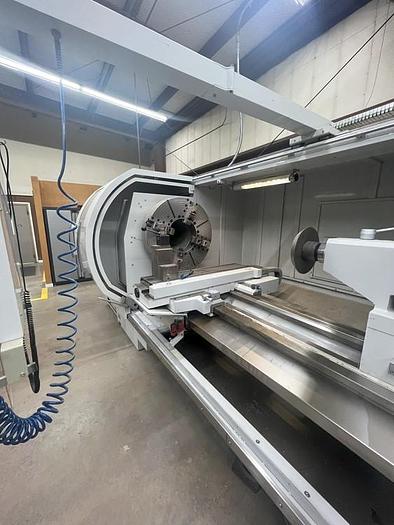

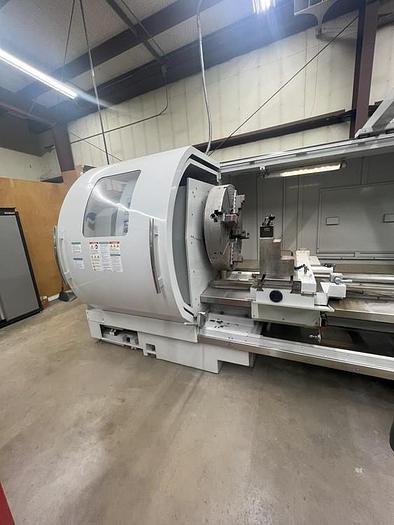

36" 4 Jaw Forged Body Kalamazoo Chuck
Tool Post

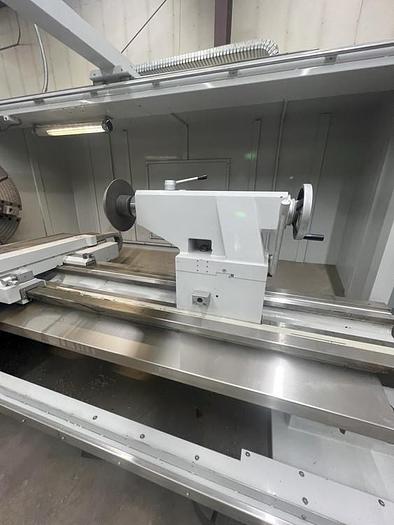

Tailstock
Chip Conveyor
Remote Jog Handle
Manual Hand Wheels
RS 232 Port Interface
Coolant System with Tank & Pump
Conversational Capable
G-Code Capable
All Available Tooling
All Available Manuals
Specifications
| Manufacturer | Milltronics |
| Model | ML40/80 14" Big Bore |
| Year | 2008 |
| Condition | Used |
| Stock Number | 119305 |

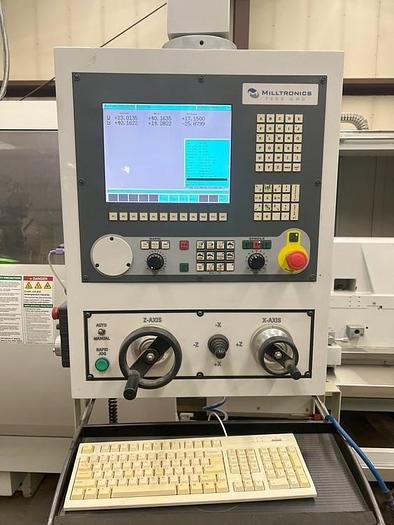

| Machine Control | Milltronics Centurion 7200 Conversational |
| Chuck Size | 36" 4-Jaw Manual |
| Maximum Swing | 40" |
| Maximum Swing Over Cross Slide | 26" |
| Swing in Gap | 50" |
| Distance Between Centers | 80" |
| X-Axis Travel | 21" |
| Z-Axis Travel | 87" |
| Spindle Nose / Bore / Bar Capacity | A2-20" / 14" / 14" |
| Spindle Speed | 900 RPM |
| Spindle Motor | 35 HP |
| Number of Turret Positions | Tool Post |
| Rapid Traverse Rates | 500 IPM |
| Tailstock Quill Diameter / Taper | 4.92" / MT #6 |
| Tailstock Quill Travel | 9" |
| Machine Dimensions LxWxH | 193" x 111" x 90" |
| Machine Weight | 24,500 lbs |
