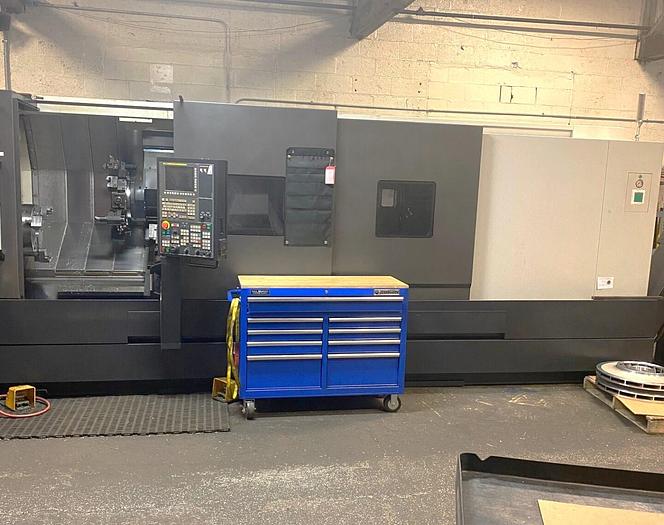

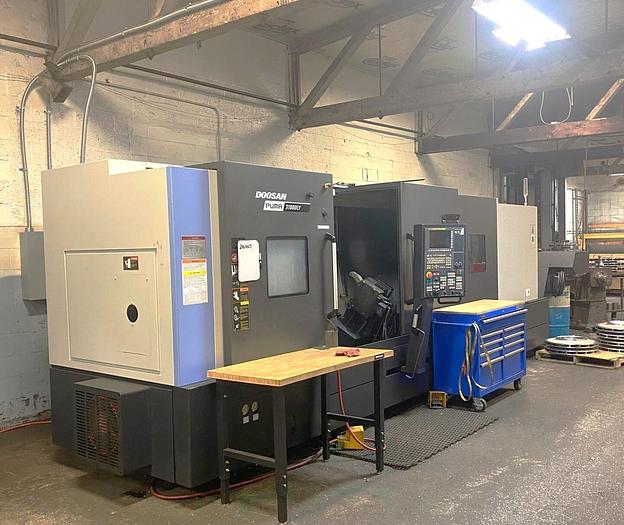

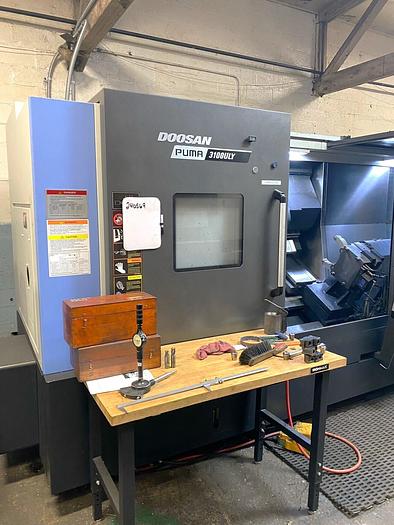

2019 Doosan Puma 3100ULY
No longer available
2019 Doosan Puma 3100ULY
Location:Louisiana
Description
Full C Axis Spindle Rotation

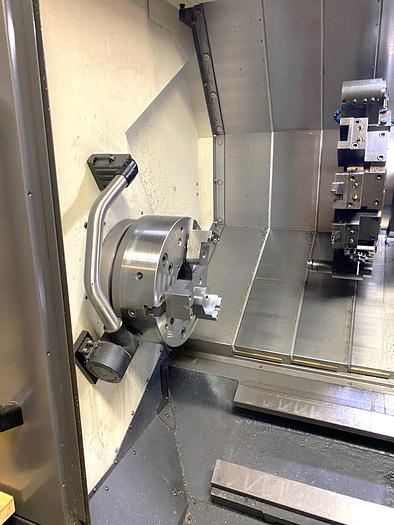

Live Milling/Drilling Capability Y Axis Capability 16" 3 Jaw Schunk Quick Change Hydraulic Chuck
Tool Presetter
Chip Conveyor

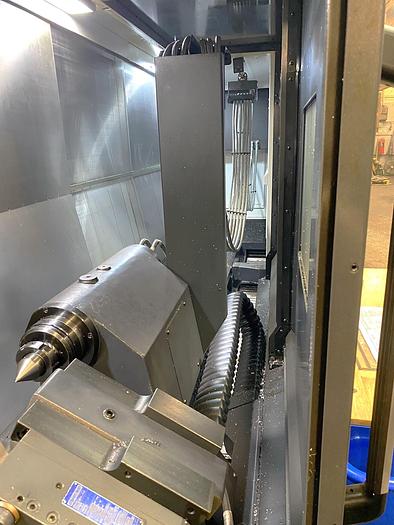

Programmable Tailstock

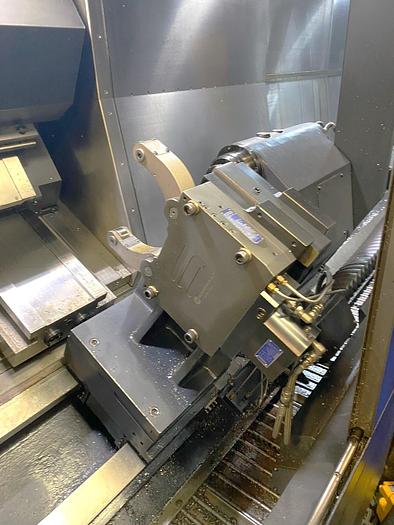

Samchully STA-3.2DSN Programmable Hydraulic Steady Rest
Steady Rest with 1.97" - 7.87" Capacity
Ultra Long Bed Design Option
MP Systems 300 PSI High Pressure Coolant System
Coolant System with Tank & Pump PCMCIA Card Interface
USB Port Interface RS 232 Port Interface
Boxed Ways
30 Degree One Piece Cast Slant Bed All Available Static Tooling

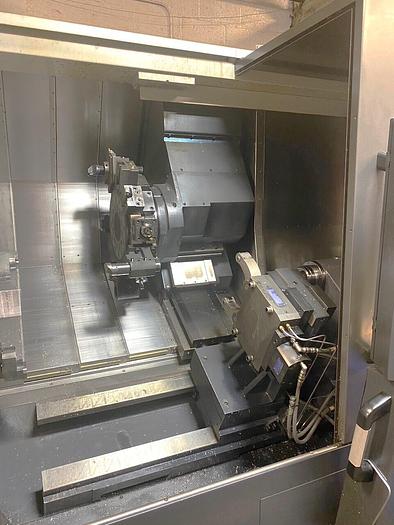

(7) Total Live Tool Holders (2) Axial and (5) Radial
(4) 1" OD Stick Tool Holders
(3) 2" Boring Bar Holders
(1) 1" Face Tool Holder
**Manufactured New in October of 2019**
Specifications
| Manufacturer | Doosan |
| Model | Puma 3100ULY |
| Year | 2019 |
| Condition | Used |
| Stock Number | 119322 |

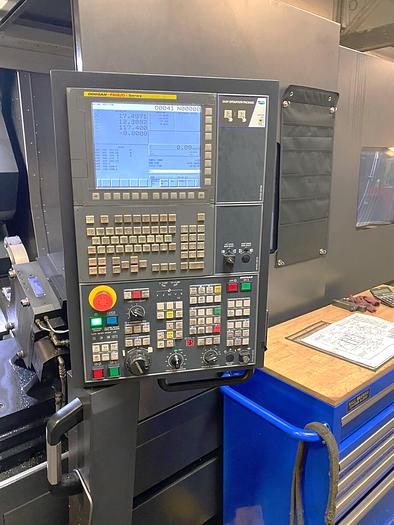

| Control | Fanuc i Series Control |
| Chuck Size | 16" 3 Jaw Hydraulic Chuck |
| Maximum Swing over Bed | 33.46" |
| Maximum Cutting Diameter | 16.5" |
| Maximum Machining Length | 123" |
| Maximum Bar Capacity | 4.02" |
| X-Axis Travel | 11.554" |
| Y-Axis Travel | 5.12" |
| Z-Axis Travel | 125.6" |
| C Axis Spindle Rotation | .001 Degree |
| Spindle Nose / Spindle Bore | A2-11" / 4.52" |
| Spindle Speeds - Main | 2,800 RPM |
| Spindle Motor - Main | 40 HP |
| Spindle Torque | 848 ft./lbs. |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 10 HP |

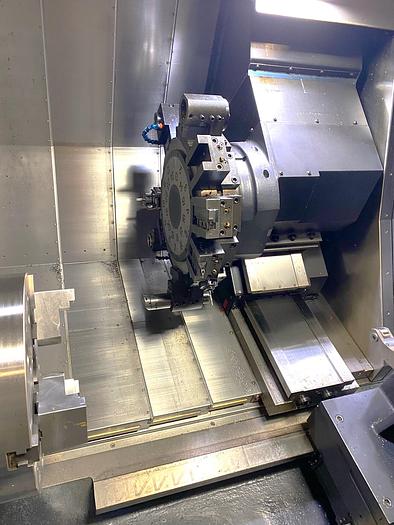

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X, Z / Y | 1181 IPM / 394 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.94" / 3.94" / MT #5 |
| Machine Dimensions | 259" x 90" x 92" |
| Machine Weight | 27,120 lbs. |
