2021 Doosan Puma 2600SY II
2021 Doosan Puma 2600SY II
Location:Michigan
Description
Full C Axis Spindle Rotation - Both

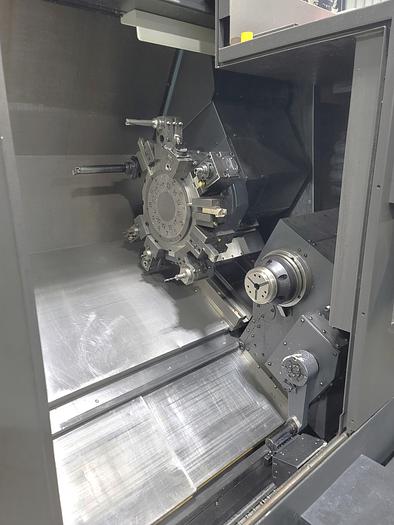

Live Milling/Drilling Capability
Subspindle Y Axis Capability
Barfeed Interface

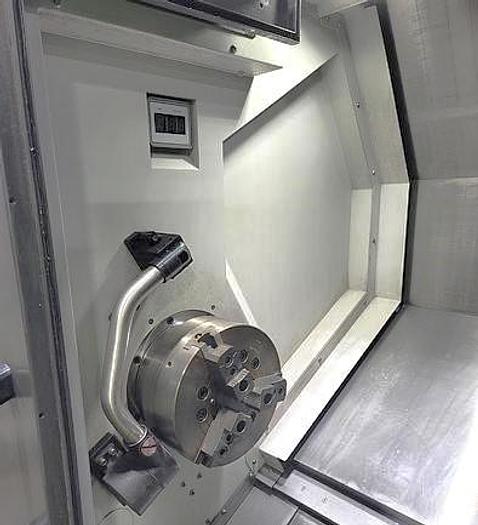

10" 3 Jaw Hydraulic Chuck on Main Spindle

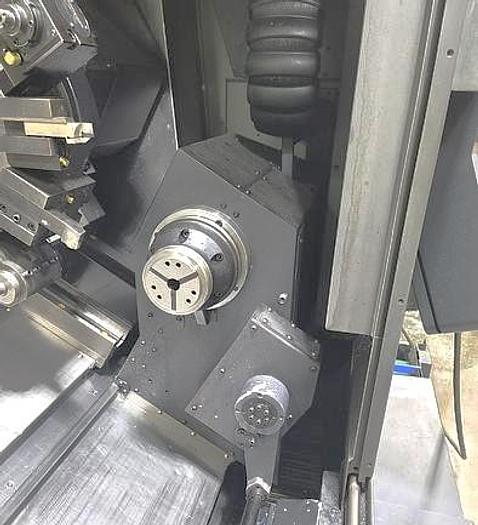

8" 3 Jaw Hydraulic Chuck on Subspindle
Royal Collet Chuck for Main Spindle
Royal Collet Chuck for Sub Spindle
High Pressure Coolant Unit - 460 PSI
Tool Presetter

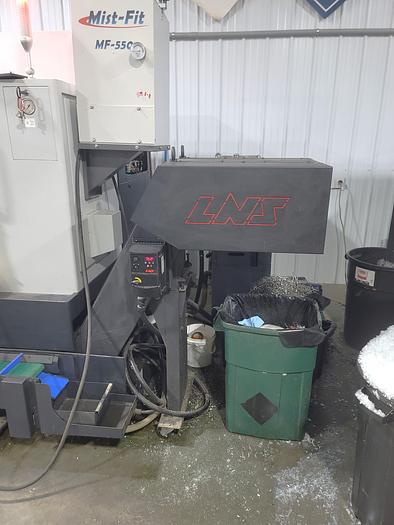

Chip Conveyor

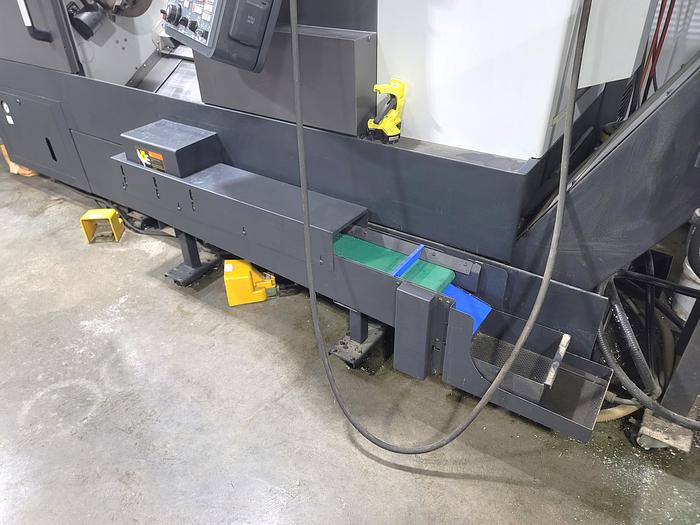

Parts Exit Conveyor

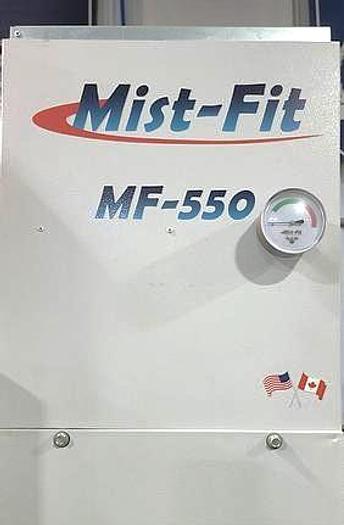

Mist-Fit MF 550 Mist Collector

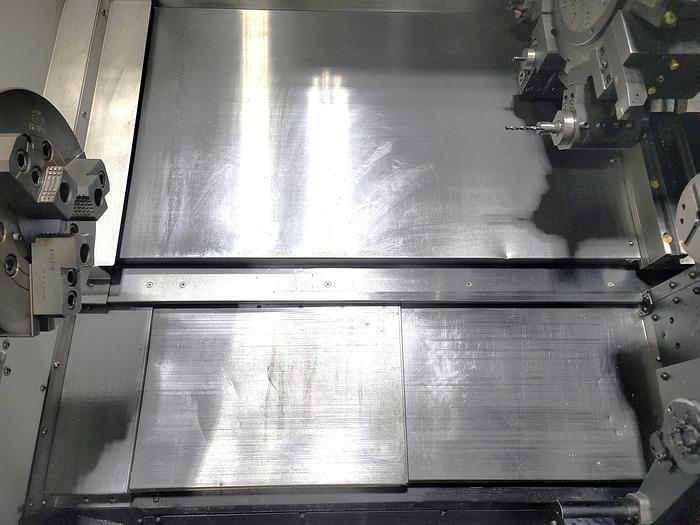

PCMCIA Card Interface Ethernet Interface RS 232 Port Interface Boxed Ways
Standard Static Tool Holder Package
(2) Radial Live Tool Holders
(4) Axial Live Tool Holders
**Original Owner**
**Cutting Hours as of April of 2024 - 334 Hours**
**Machine has been cutting stainless steel, copper, aluminum and acetal**
**Estimated replacement cost as equipped is over $230,000**
Specifications
| Manufacturer | Doosan |
| Model | Puma 2600SY II |
| Year | 2021 |
| Condition | Used |
| Stock Number | 119324 |

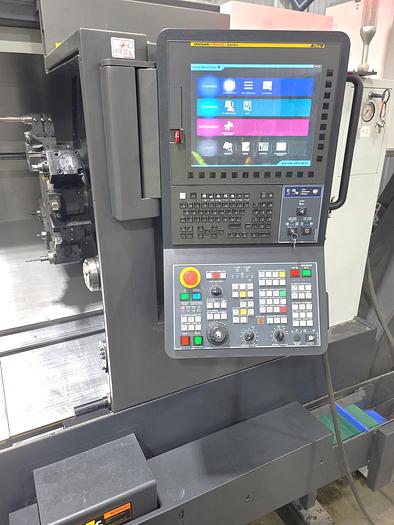

| Control | Fanuc i Series Control |
| Chuck Size | 10" 3-Jaw Main Spindle / 8" 3-Jaw Subspindle |
| Maximum Swing over Bed | 30.7" |
| Maximum Cutting Diameter | 14.8" |
| Maximum Machining Length | 29.9" |
| Maximum Bar Capacity | 3" Main Spindle / 2" Subspindle |
| X-Axis Travel | 10.2" |
| Y-Axis Travel | 4.13" |
| Z-Axis Travel | 32.7" |
| B-Axis Subspindle Travel | 32.7" |
| C Axis Spindle Rotation - Both | .001 Degree |
| Spindle Nose / Spindle Bore | A2-8" Main Spindle / A2-5" Subspindle / 3.6" Main Spindle Bore / 2.4" Subspindle Bore |
| Spindle Speeds - Main | 4,000 RPM |
| Spindle Motor - Main | 30 HP |
| Subspindle Speed / Motor | 6,000 rpm / 20 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 10 HP |
| Number of Turret Positions | 12 Station Turret - BMT 65 |
| Rapid Traverse Rates X, Z / Y | 1181 IPM / 394 IPM |
| Machine Dimensions | 142" x 85" x 75" |
| Machine Weight | 14,440 lbs. |
