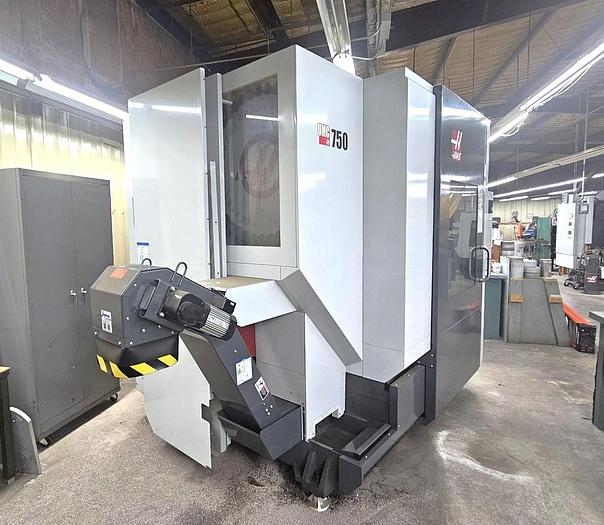

2018 Haas UMC-750 5 Axis Universal Machining Center
2018 Haas UMC-750 5 Axis Universal Machining Center
$129,500 (USD)
Location:Dundee, FL
Description

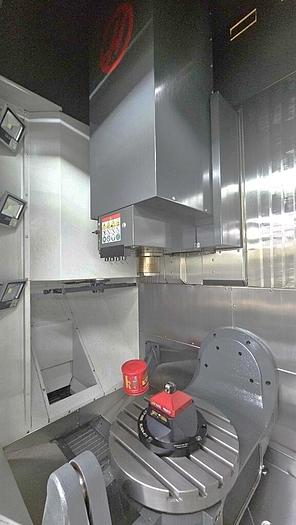

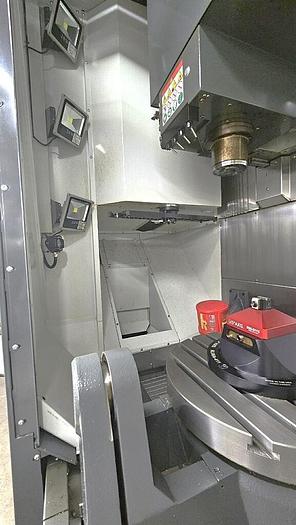

Trunnion Style 5th Axis Table
Coolant Through the Spindle - 300 PSI
40 Station Side Mounted Tool Changer
Renishaw Probing with both Part and Tool Probe Included (WIPS)
Spindle Orientation
User Definable Macros
Coordinate Rotation & Scaling
Haas Intuitive Programming System
8,100 RPM Spindle
Chip Conveyor - Belt Style
Second Home Button
Rigid Tapping
Color Remote Jog Handle
Early Power Failure Detection Module
1 GB Expanded Programming Memory
15" Color LCD Monitor
WIFI Connectivity Option for Haas Control and Local Network
Haas Connect
USB Port Interface
RS 232 Port Interface
Memory Key Lock Switch
Flood Coolant System with 75 Gallon Tank & Pump
Wired 220V Electrics

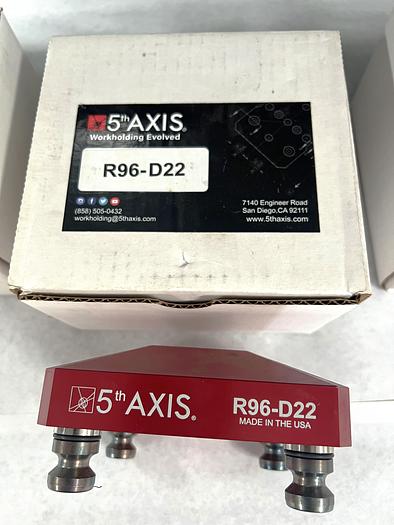

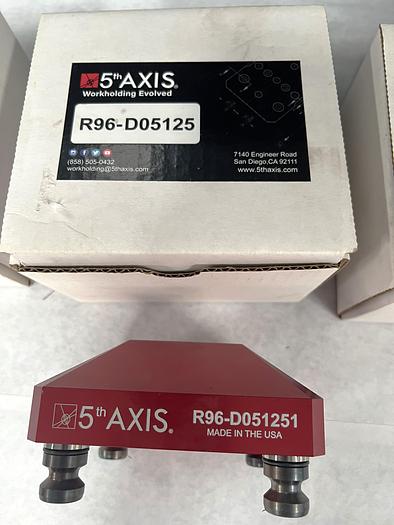

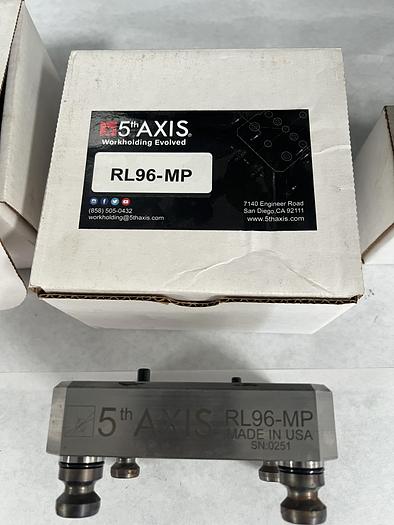

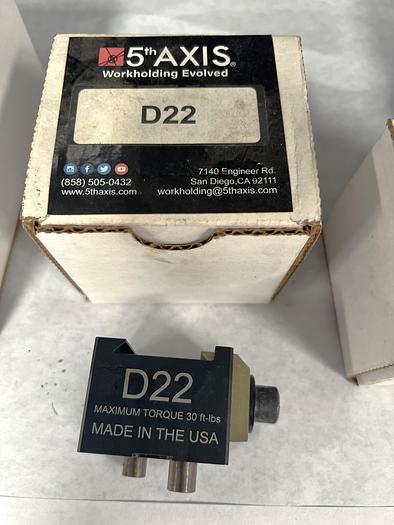

**5th Axis Tooling Included**
**(10) CAT 40 Tool Holders Included**

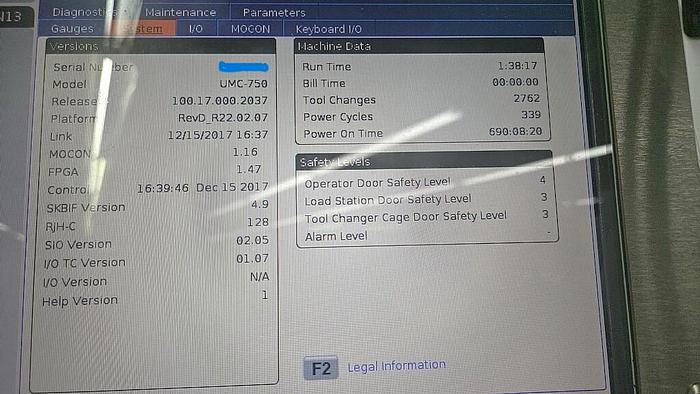

**ONLY 690 MACHINE POWER ON HOURS**
**LESS THAN 2 HOURS of Run Time !!**
**Price new as equipped today at nearly $180,000**
Specifications
| Manufacturer | Haas |
| Model | UMC-750 5 Axis Universal Machining Center |
| Year | 2018 |
| Condition | Used |
| Stock Number | 119327 |
| Table size | 19.7" x 24.8" |
| Table load capacity | 660 lbs |
| X axis travel | 30" |
| Y axis travel | 20" |
| Z axis travel | 20" |
| B axis rotate of trunnion | -35 Degrees to 110 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT #40 |
| Spindle speed | 8,100 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Tool magazine | 40 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 1200 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 157" x 94" x 101" |
| Machine weight | 19,100 lbs |
