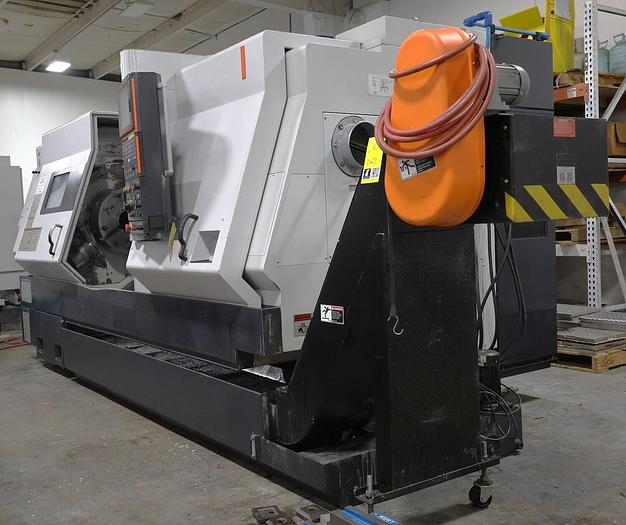

2007 Mazak Nexus QTN 450-IIM/1000
No longer available
2007 Mazak Nexus QTN 450-IIM/1000
$109,000 (USD)
Location:Idaho
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability

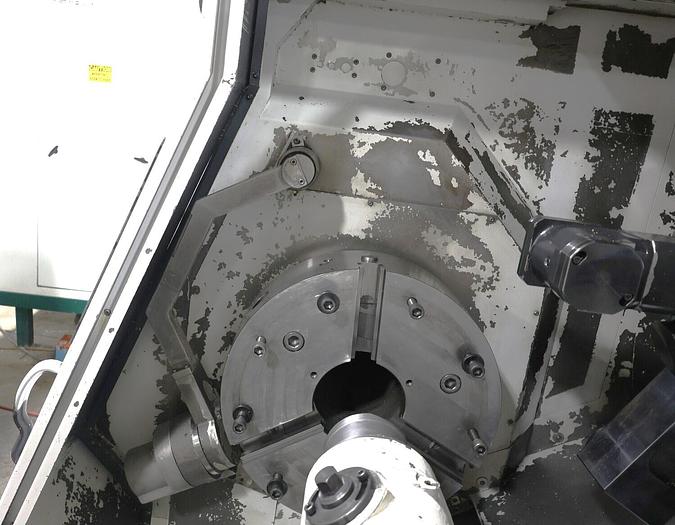

21" Samchully 3 Jaw Hydraulic Chuck w/ 6.5" Bore
Automatic Tool Eye

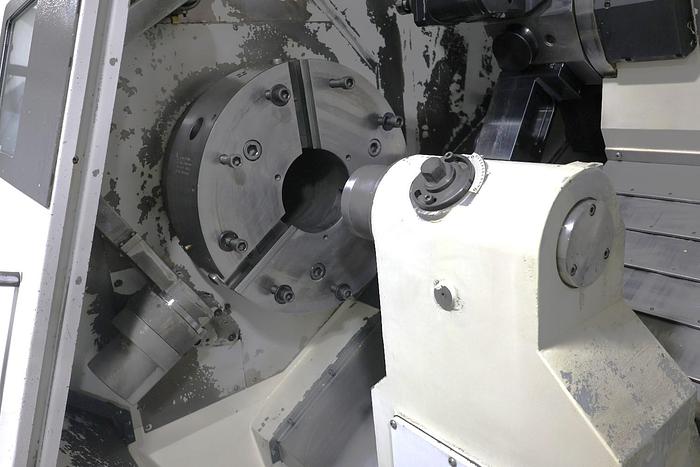

Programmable Tailstock

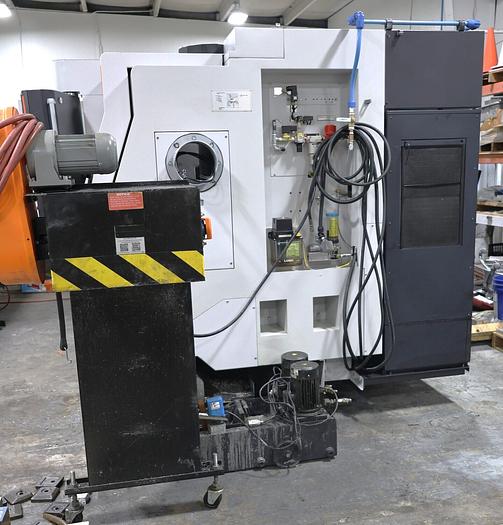

Chip Conveyor
Auto Tool Life Management
Mill Synchronous Tapping
G54.1
Threading
External Data Input/Output
Coordinate Rotation & Scaling
Geometric
EIA/ISO Input Function
EIA 3D Compensation
EIA Helical Tapping Cycle
EIA Pattern Cycle
Tilted Work Plane
Spiral Interpolation
Cylindrical Interpolation
Comparison Stop
Polar Coordinates Input
Inverse Time
Variable 600 Sets
Pitch Error Compensation
Card Interface
USB Port Interface
RS 232 Port Interface
Wired 208V Electrics
(6) Static Tool Holders

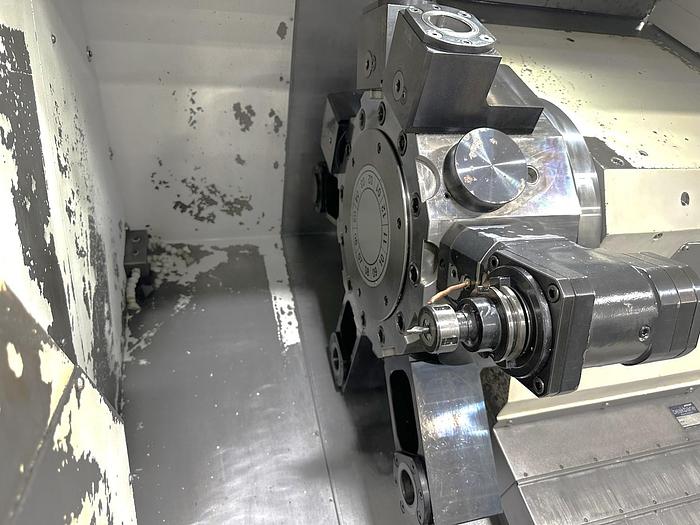

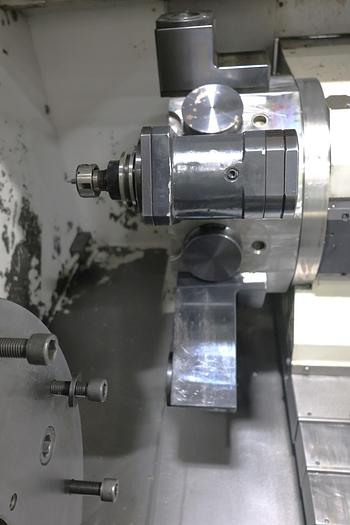

(1) Live Tool Holder
All Available Manuals

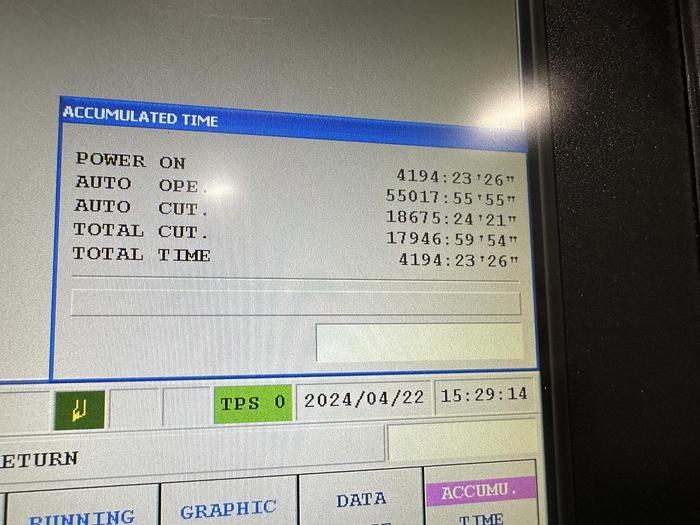

**Total Cutting Hours of 17,946**
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 450-IIM/1000 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 119348 |

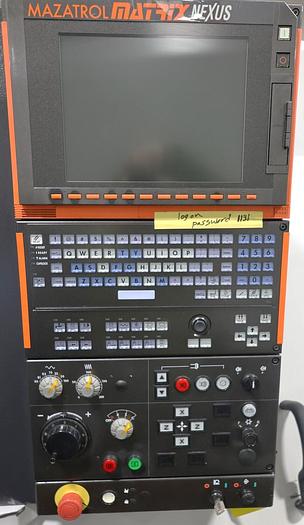

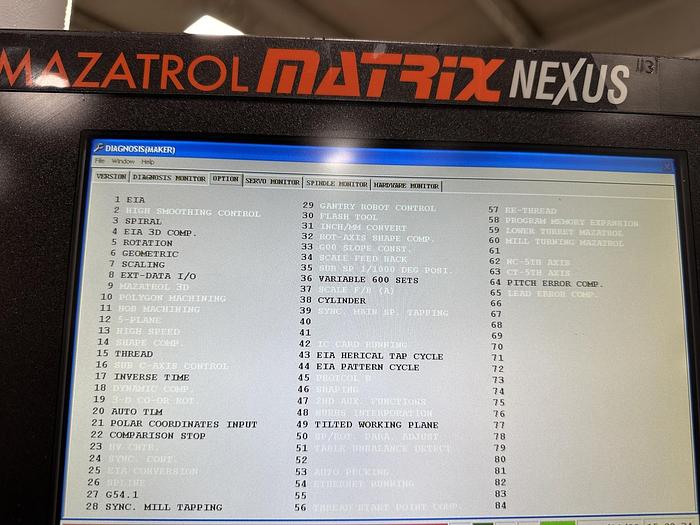

| Machine Control | Mazatrol Matrix Nexus |
| Chuck Size | 21" 3-Jaw Hydraulic Chuck |
| Maximum Swing | 33.26" |
| Maximum Cutting Diameter | 22.83" |
| Maximum Turning Length | 43.2" |
| Distance Between Centers | 43.55" |
| X-Axis Travel | 13.38" |
| Z-Axis Travel | 43.2" |
| C Axis Spindle Rotation | .001 Degree |
| Spindle Nose / Bore / Bar Capacity | A2-15 / 7.23" / 6.5" |
| Spindle Motor | 50 HP |
| Spindle Torque | 1217 ft/lbs. |
| Spindle Speeds | 2,000 RPM |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 10 HP |
| Rapid Traverse Rates | 1181 IPM |
| Tailstock Quill Diameter / Center | 3.94" / #5 MT |
| Number of Turret Positions | 12 Sided / 24 Positions |
| Machine Dimensions LxWxH | 144" x 90" x 80" |
| Machine Weight | 20,300 lbs |
