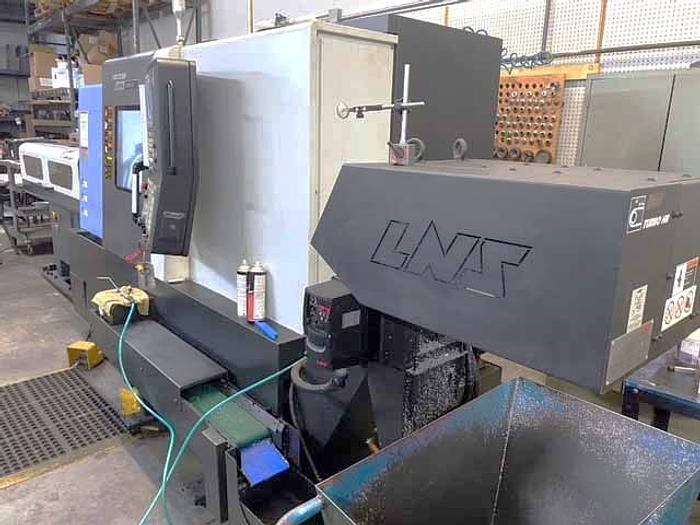

2019 Doosan Lynx 2100LSYB with LNS Barfeed
2019 Doosan Lynx 2100LSYB with LNS Barfeed
$139,500 (USD)
Location:Illinois
orCall (863) 439-6066
Description
Subspindle
Full C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability

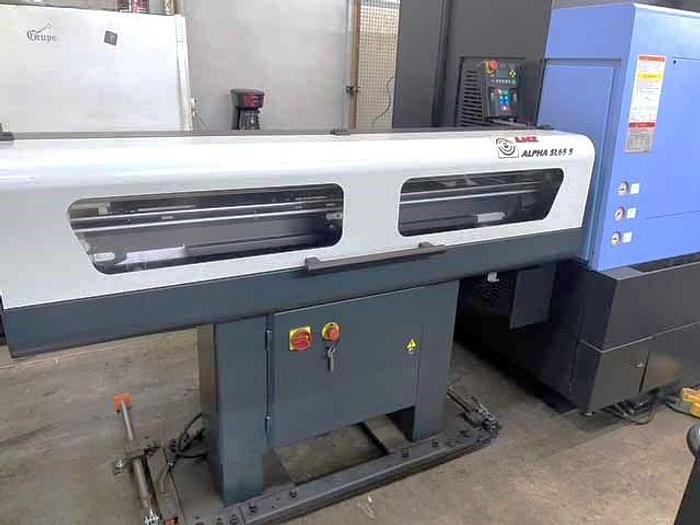

LNS Alpha SL-65S Barfeeder
Parts Catcher
Chip Conveyor
Auto Tool Presetter

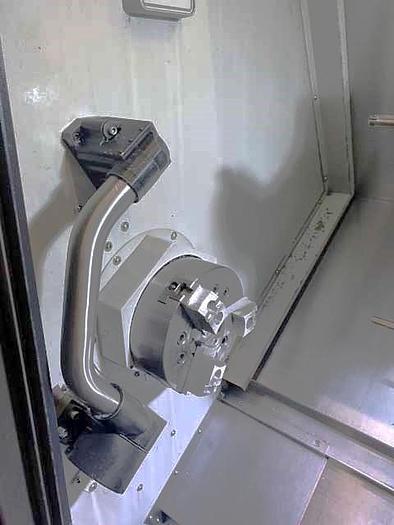

8" 3 Jaw Hydraulic Chuck on Main Spindle

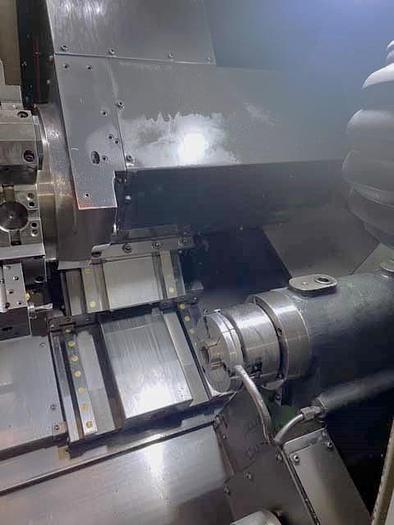

5" 3 Jaw Hydraulic Chuck on Subspindle
RS 232 Port Interface

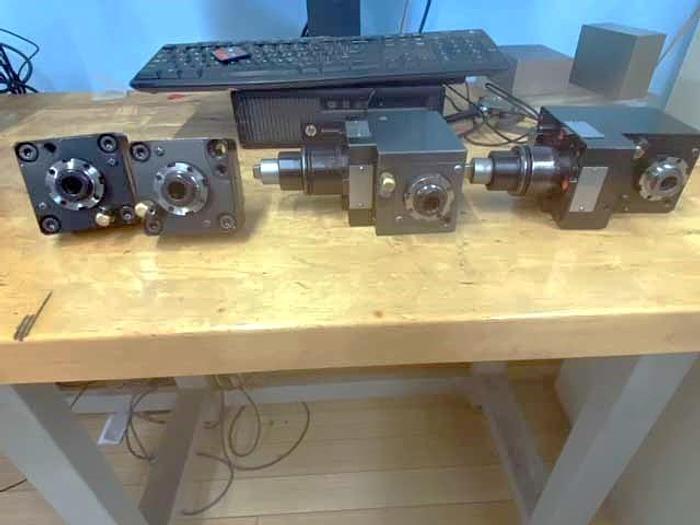

(2) Axial Live Tool Holders
(2) Radial Live Tool Holders
Static Tooling
All Available Manuals
Complete Coolant System with Tank & Pump

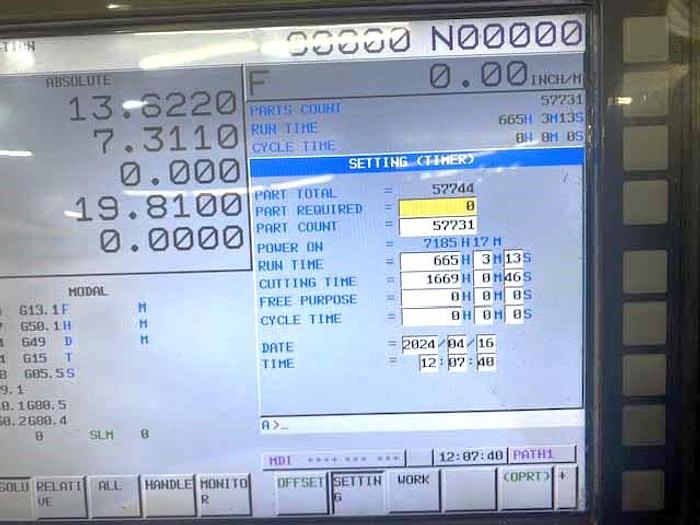

**ONLY 1,669 Cutting Hours**
Specifications
| Manufacturer | Doosan |
| Model | Lynx 2100LSYB with LNS Barfeed |
| Year | 2019 |
| Condition | Used |
| Stock Number | 119351 |
| Machine Control | Fanuc i Series Control |
| Chuck size main / subspindle | 6.89" / 5" Hyd Chks |
| Maximum swing over bed | 23.6" |
| Maximum turning diameter | 11.8" |
| Maximum turning length | 20.1" |
| Maximum bar capacity | 2.6" |
| X-axis travel | 8.1" |
| Y-axis travel | 4.13" |
| Z-axis travel | 22" |
| B-axis travel - subspindle | 22" |
| C axis spindle rotation | .001 Degree |
| Spindle nose / spindle bore | A2-6" / 2.99" |
| Spindle speed - 1 range | 40 - 6,000 RPM |
| Spindle motor | 20 HP |
| Subspindle bore | 1.77" |
| Subspindle speed / motor | 6,000 RPM / 7.5 HP |
| Rotary tool motor / speeds | 5 HP / 6,000 RPM |
| Turret type - all live capable | 12 Position Turret |
| Rapid traverse rates x, b / z | 1181 PM / 1417 IPM |
| Machine dimensions lxwxh | 114" x 77" x 76" |
| Machine weight | 9,250 lbs |
