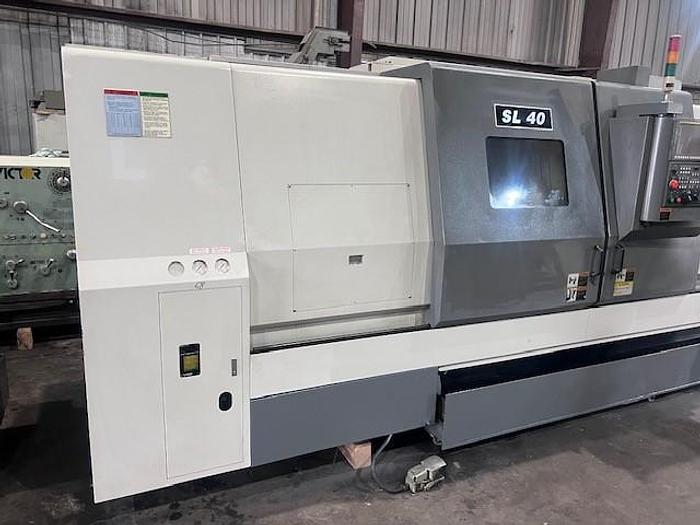

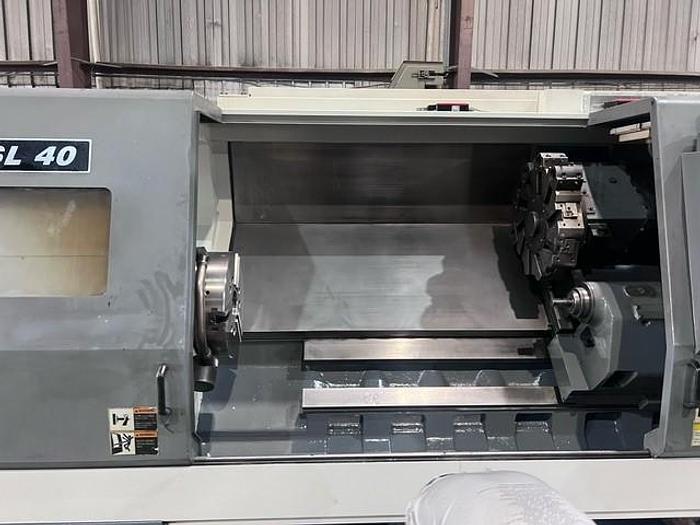

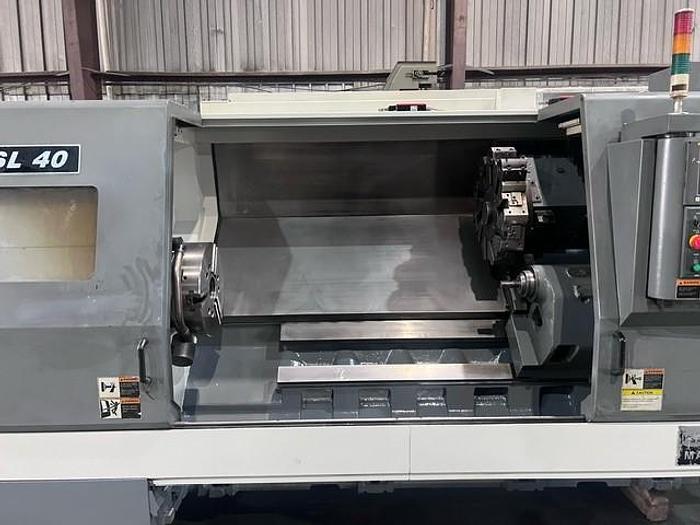

2014 Samsung SL-40/1500 Heavy Duty CNC Lathe
2014 Samsung SL-40/1500 Heavy Duty CNC Lathe
$89,500 (USD)
Location:Texas
orCall (863) 439-6066
Description

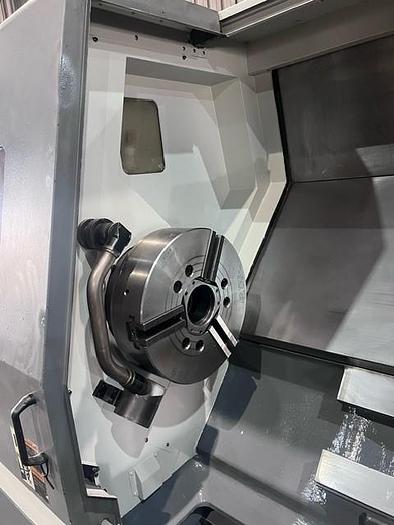

18" 3 Jaw Hydraulic Chuck

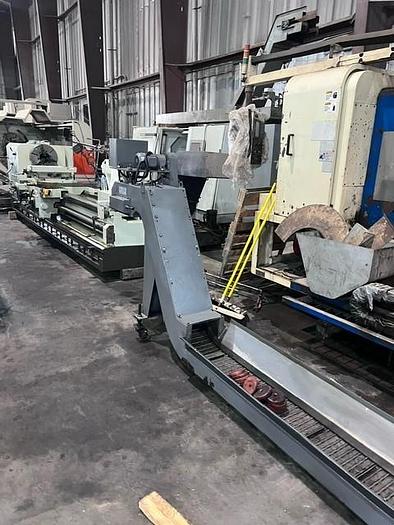

Chip Conveyor
Tailstock- Hydraulic with Programmable Body & Quill

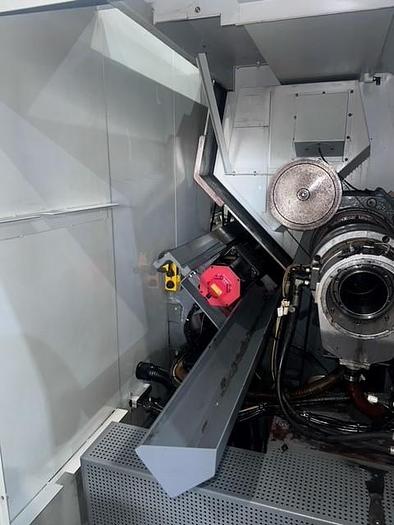

Tool Presetter
Manual Guide i for Conversational Capability
Complete Coolant System with Tank & Pump
Card Interface
USB Port Interface
RS 232 Port Interface
2 Speed Geared Head
Boxed Way
3 Color Machine Status Condition Lights
Heavy Boxed Ways and Slant Bed
All Available Static Tooling
All Available Manuals
**Low Hours of Use**
Specifications
| Manufacturer | Samsung |
| Model | SL-40/1500 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 119367 |

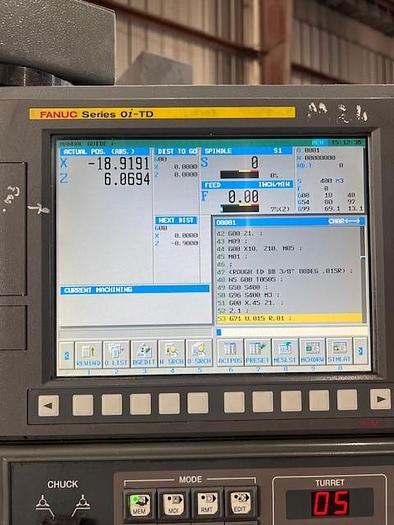

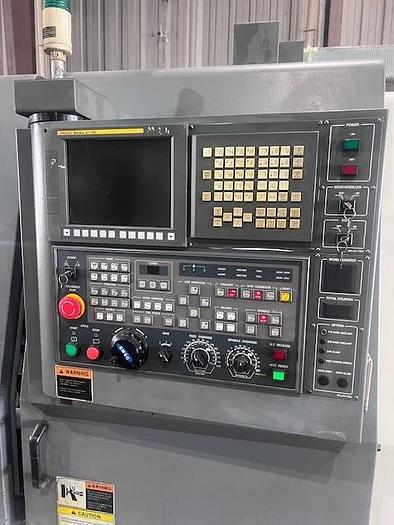

| Machine Control | Fanuc 0i-TD |
| Chuck size | 18" 3 Jaw Hydraulic Chuck |
| Maximum Swing over Bed | 26.8" |
| Maximum Machining Diameter | 19.7" |
| Maximum Machining Length | 60.2" |
| Maximum Bar Capacity | 4.6" |
| X-Axis Travel | 11" |
| Z-Axis Travel | 63.19" |
| Spindle Nose / Spindle Bore | A2-11" / 5.2" |
| Spindle Speed | 1,800 RPM |
| Spindle Motor | 30 HP |

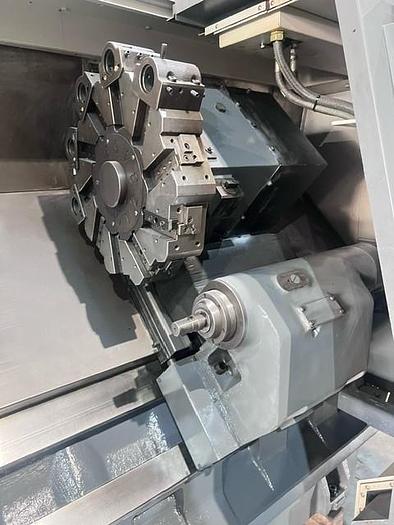

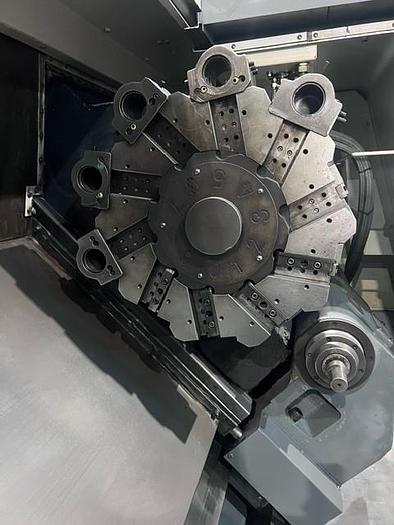

| Number of Turret Positions | 10 Station Block Turret |
| Rapid Traverse Rates | 472 IPM / 591 IPM |
| Machine Dimensions | 197" x 75" |
| Machine Weight | 20,500 lbs. |
