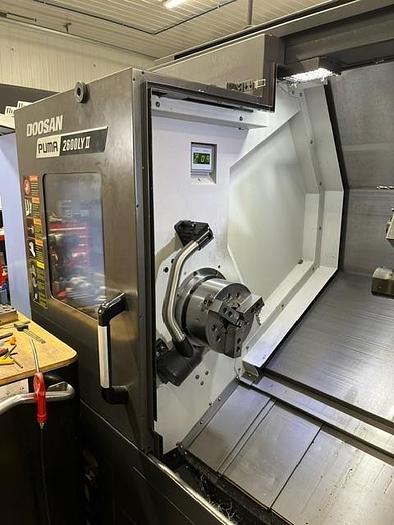

2020 Doosan Puma 2600LY II
2020 Doosan Puma 2600LY II
Contact us for price
Location:Quebec City, Canada
orCall (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability Y Axis Capability 10" 3 Jaw Hydraulic Chuck
Tool Presetter
Chip Conveyor

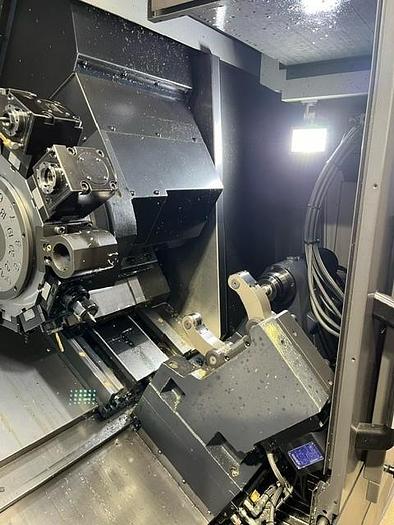

Samchully Self Centering Steady Rest (drag and drop type) - 0.78" - 6.5" Long Bed Design Option
Tailstock
Coolant System with Tank & Pump
Extra Coolant Filtration to Protect Live Holders with Coolant Through PCMCIA Card Interface Ethernet Interface RS 232 Port Interface Boxed Ways All Available Static Tooling
(6) Live Tool Holders, (2) with Coolant Through
**Less than 1,000 Cutting Hours**
Specifications
| Manufacturer | Doosan |
| Model | Puma 2600LY II |
| Year | 2020 |
| Condition | Used |
| Stock Number | 119373 |

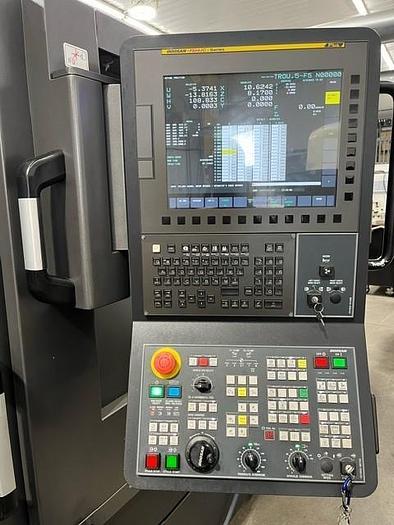

| Control | Fanuc i Series |
| Chuck Size | 10" 3 Jaw Hydraulic Chuck |
| Maximum Swing over Bed | 30.7" |
| Maximum Cutting Diameter | 14.8" |
| Maximum Machining Length | 50.4" |
| Maximum Bar Capacity | 3.0" |
| X-Axis Travel | 10.2" |
| Y-Axis Travel | 4.13" |
| Z-Axis Travel | 53.1" |
| C Axis Spindle Rotation | .001 Degree |
| Spindle Nose / Spindle Bore | A2-8" / 3.54" |
| Spindle Speeds - Main | 4,000 RPM |
| Spindle Motor - Main | 30 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 10 HP |

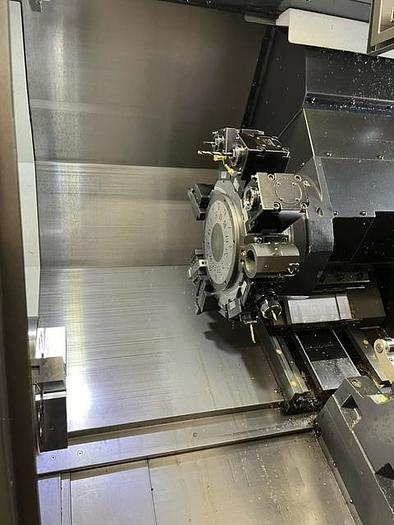

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X, Z / Y | 1181 IPM / 394 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.1" / 4.7" / MT #4 |
| Machine Dimensions | 175" x 81" x 86" |
| Machine Weight | 16,500 lbs. |
