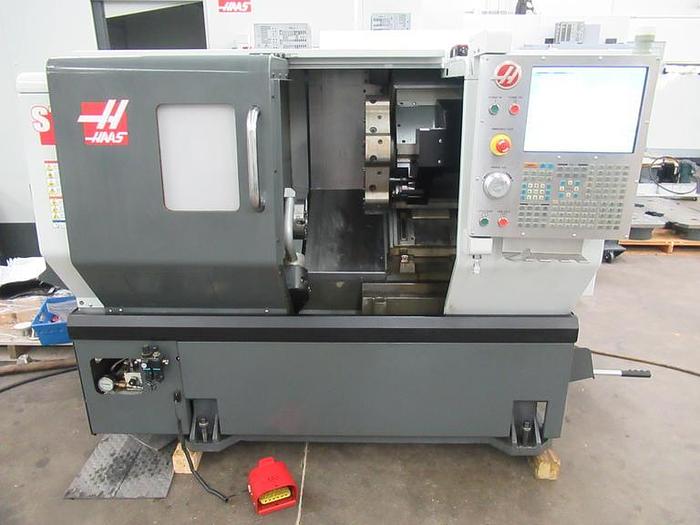

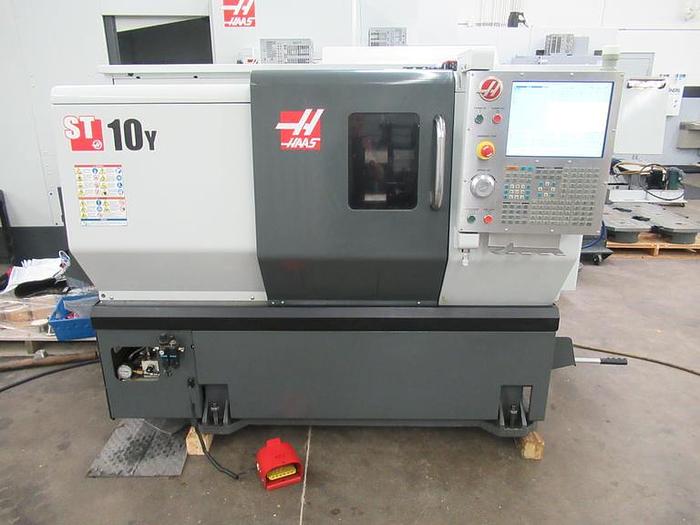

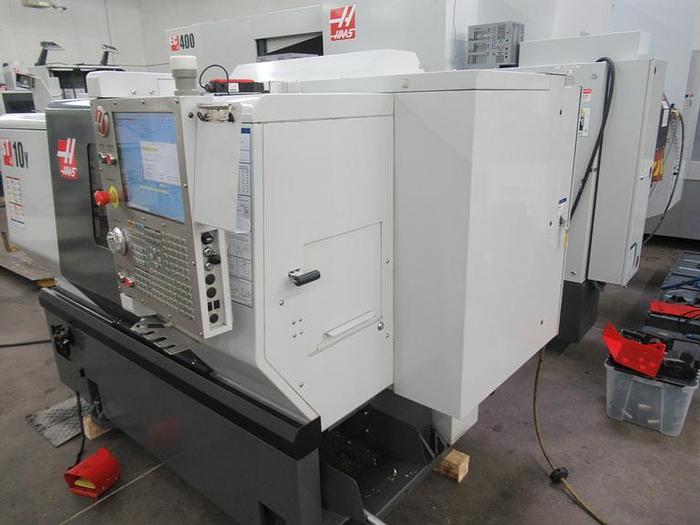

2012 Haas ST-10Y
2012 Haas ST-10Y
$64,500 (USD)
Location:Minnesota
orCall (863) 439-6066
Description
Full C Axis Spindle Rotation (.01 Degree)
Live Milling/Drilling Capability
Y Axis Capability

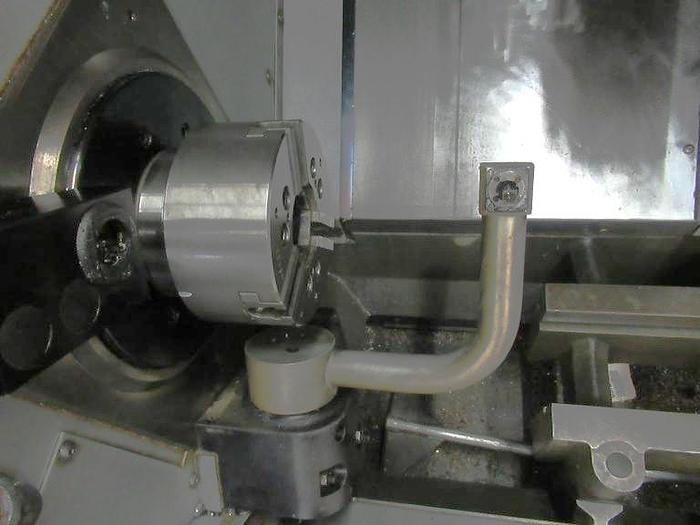

Tool Presetter
Renishaw Part Probing System

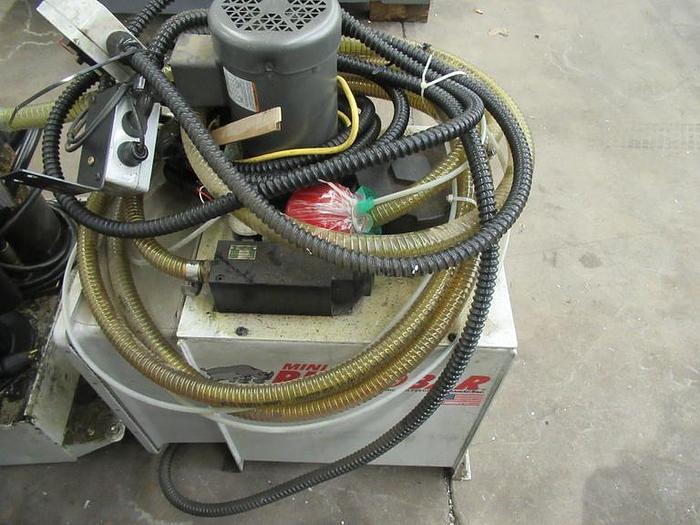

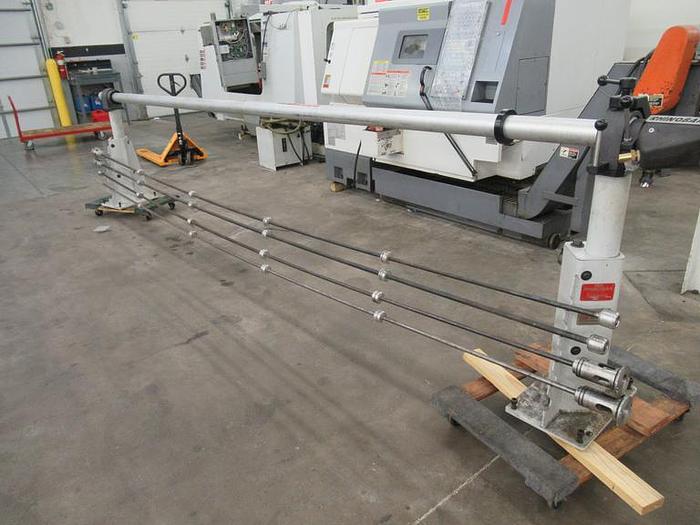

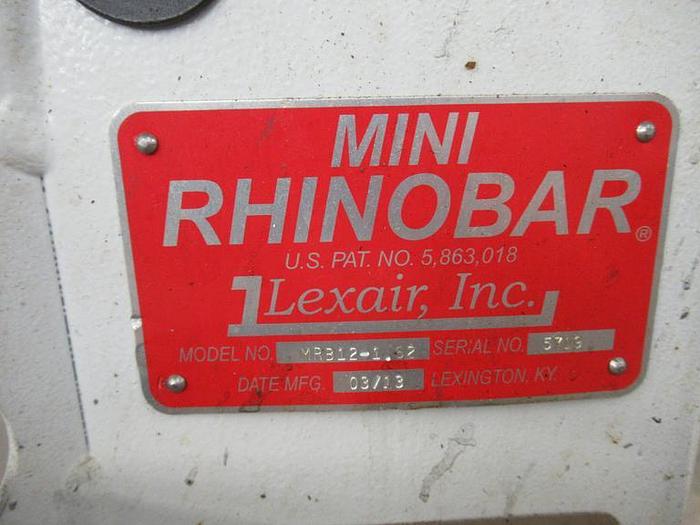

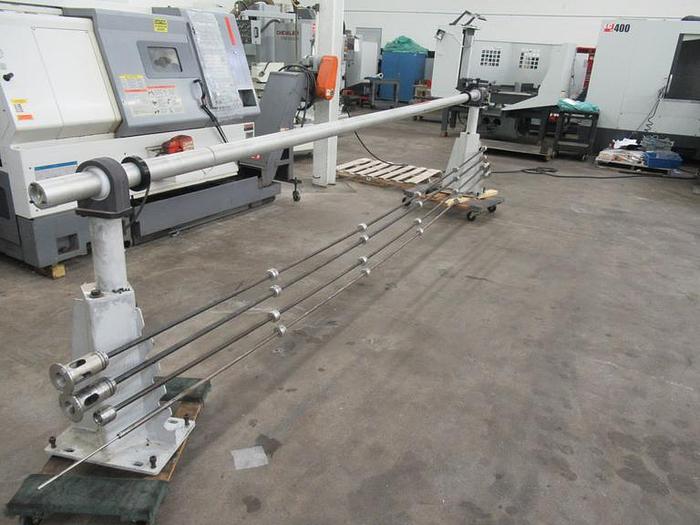

Lexair Mini-Rhinobar MRB12-1.62 12' Barfeed

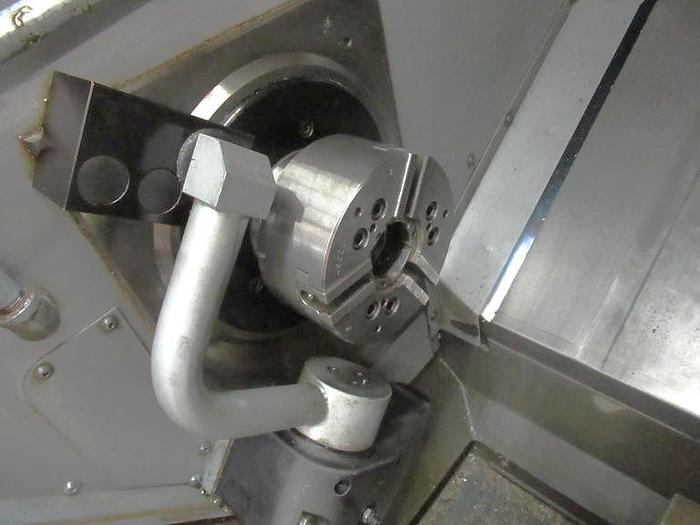

6.5" 3 Jaw Hydraulic Chuck with Draw Tube & Actuator
Microcentric Collet Chuck
5C Collet Closer

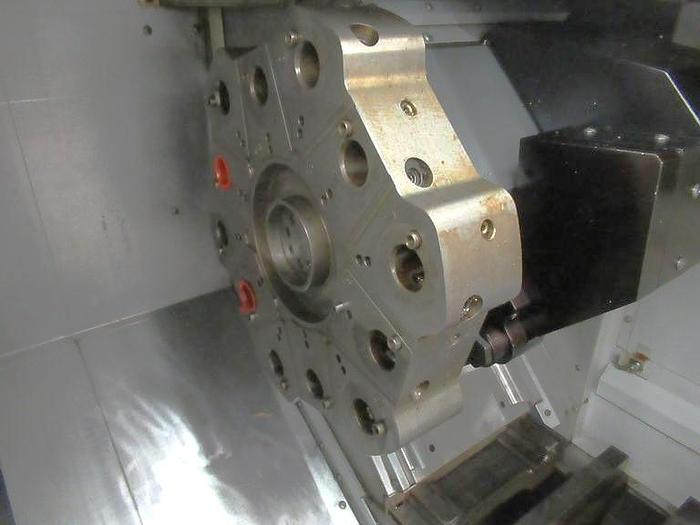

12 Station VDI Turret - 6 Live Stations
User Definable Macros
Spindle Orientation
Cold Fire Processor
Haas MainCon CNC Control
Ethernet Interface
RS 232 Port Interface
Wired 195-260V Electrics

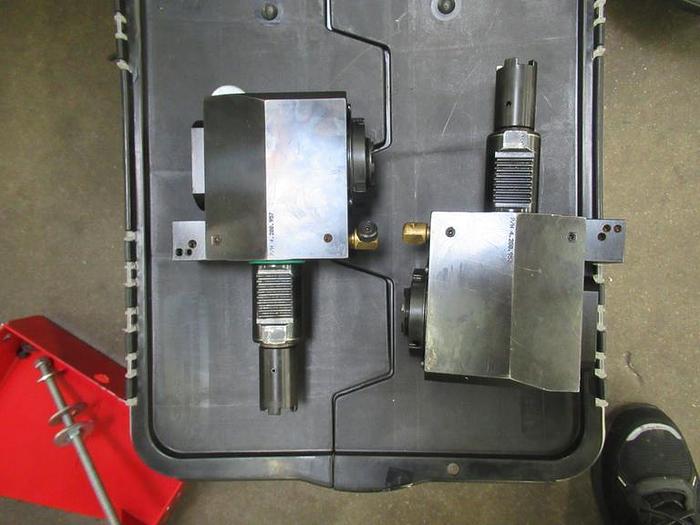

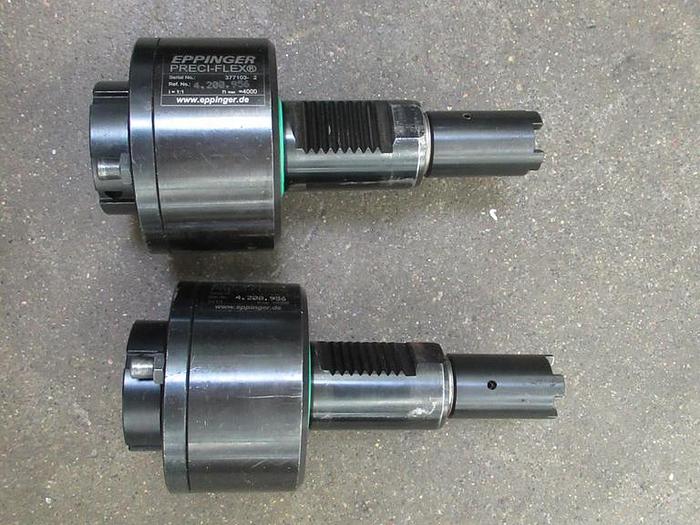

(2) Axial Live Tool Holders
(2) Radial Live Tool Holders

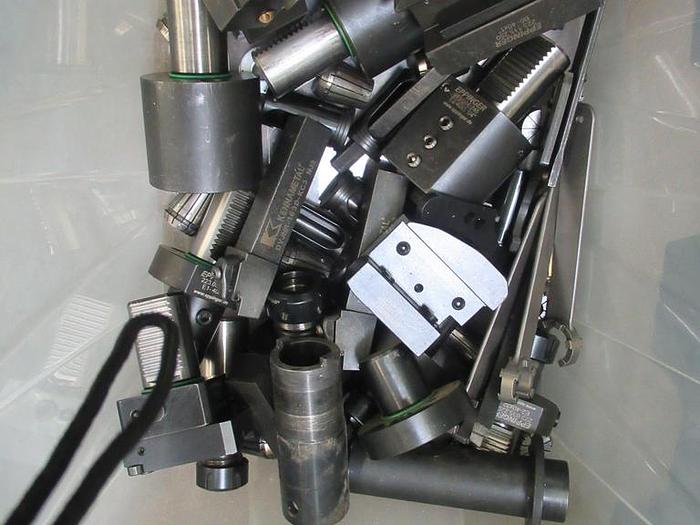

Miscellaneous Static Tool Holders

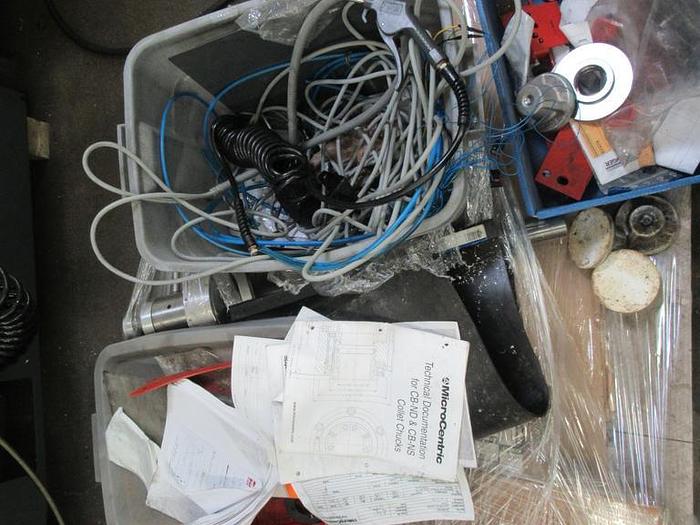

Spindle Liners, Bar Tubes, Manuals
Specifications
| Manufacturer | Haas |
| Model | ST-10Y |
| Year | 2012 |
| Condition | Used |
| Stock Number | 119375 |
| Machine Control | Haas CNC Control |
| Chuck Size | 6.5" 3-Jaw Hydraulic/5C Collet Closer |
| Maximum Swing | 16.25" |
| Maximum Machining Diameter | 9" |
| Maximum Machining Length | 14" |
| Maximum Bar Capacity | 1.75" |
| X-Axis Travel | 7.88" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 14" |
| C Axis Spindle Rotation | 0.01 Degree |
| Spindle Nose / Spindle Bore | A2-5" / 2" |
| Spindle Speeds | 6,000 RPM |
| Spindle Motor | 15 HP |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 5 HP |
| Number of Turret Positions | 12 VDI Style |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 1200 IPM |
| Machine Dimensions LxWxH | 96" x 60" x 69" |
| Machine Weight | 7,500 lbs. |
