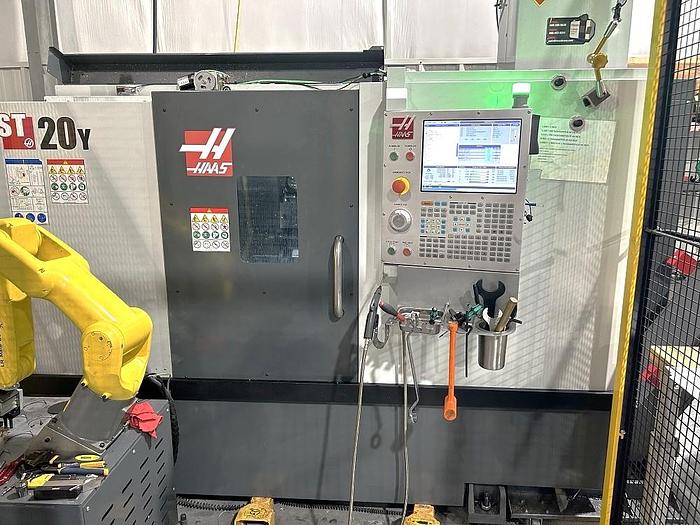

2021 Haas ST-20Y with Haas Robot Loading Package and Milling
2021 Haas ST-20Y with Haas Robot Loading Package and Milling
$118,950 (USD)
Location:Virginia
Description

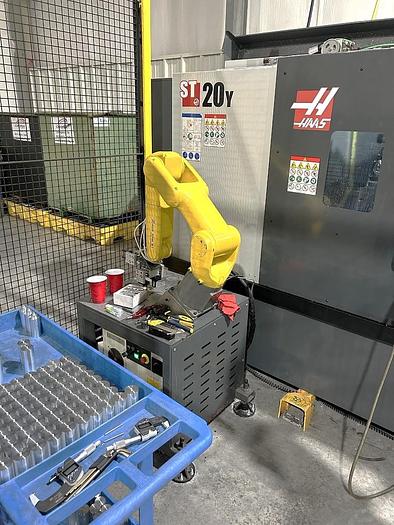

Haas Robot Package 1 with Fanuc LR Mate 200iD Robot Package including Dual Gripper & HRP Install Kit
C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability
6,000 RPM Live Tooling Spindle Speed Upgrade
24 Station BMT65 Turret
QG-65 Acculength Collet Chuck
Chip Conveyor - Belt Type
Programmable Tailstock
Tool Presetter
300 PSI High Pressure Coolant System
Enclosure Exhaust System
Haas Visual Part Programming System
User Definable Macros
Auto Jet Air Blast
Spindle Orientation
Media Display M Code M130
Haas Connect
1 GB Program Storage
Rigid Tapping
55 Gallon Coolant System with Tank & Pump
15" LCD Color Monitor
Early Power Failure Detection Module
12 Station VDI/BOT Hybrid Turret
Memory Lock Key Switch
USB Port Interface
RS 232 Port Interface
All Available Tool Blocks
(2) Axial Live Tool Holder & (2) Radial Live Tool Holder
All Available Manuals
*New in January of 2021*
Specifications
| Manufacturer | Haas |
| Model | ST-20Y with Milling |
| Year | 2021 |
| Condition | Used |
| Stock Number | 119386 |
| Machine Control | Haas NextGen Control |
| Chuck Size | 8.3" 3-Jaw Hydraulic Chuck |
| Maximum Swing Over Cross Slide | 21" |
| Maximum Machining Diameter | 11.75" |
| Maximum Machining Length | 22.5" |
| Maximum Bar Capacity | 2.5" |
| X-Axis Travel | 8.4" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 22.5" |
| C Axis Spindle Rotation | 0.01 Degree |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 20 HP |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 5 HP |
| Number of Turret Positions | 24 Station Turret - BMT65 Type |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 945 IPM |
| Tailstock Taper | MT #4 |
| Machine Dimensions LxWxH | 142" x 90" x 92" |
| Machine Weight | 10,480 lbs. |
