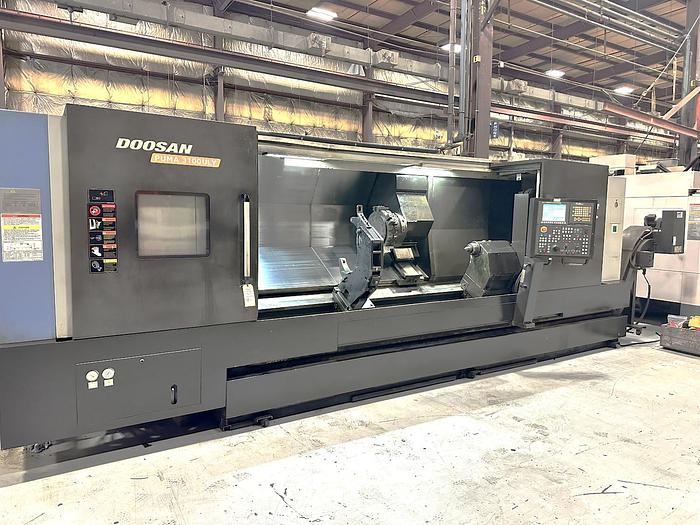

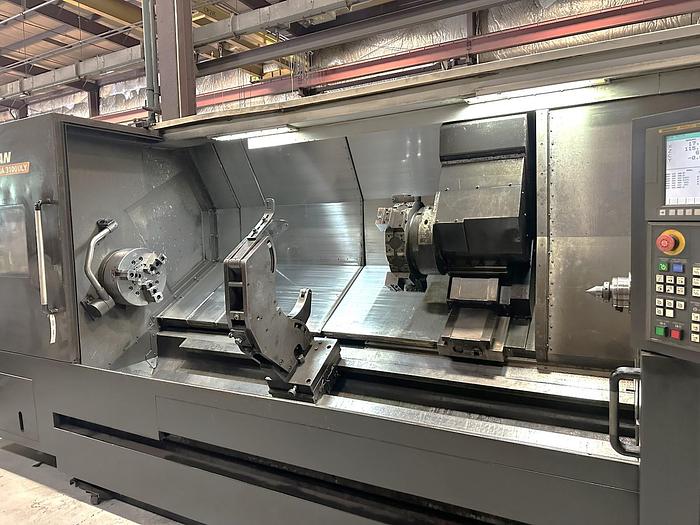

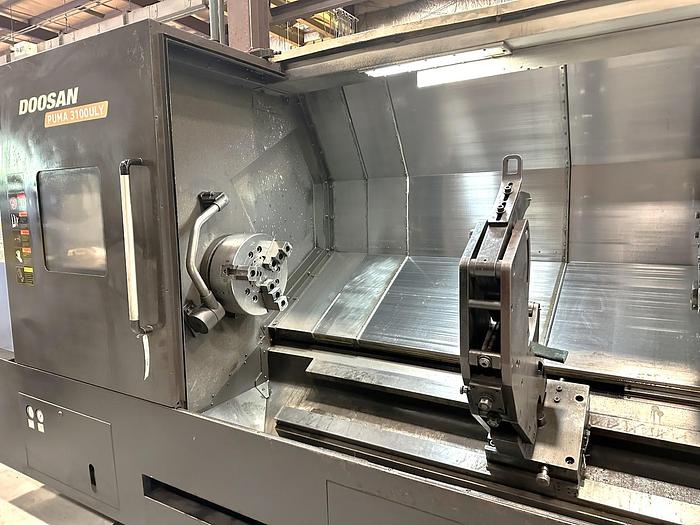

2010 Doosan Puma 3100ULY
2010 Doosan Puma 3100ULY
Contact us for price
Location:Michigan
orCall (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability Y Axis Capability 15" 3 Jaw Kitagawa Hydraulic Chuck
Tool Presetter
Chip Conveyor

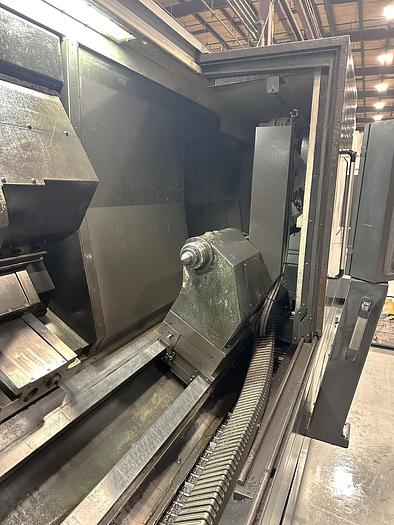

Programmable Tailstock

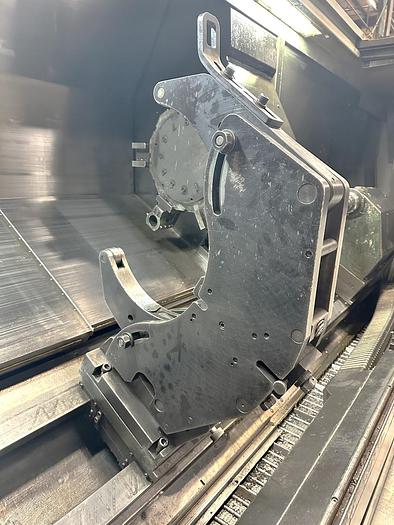

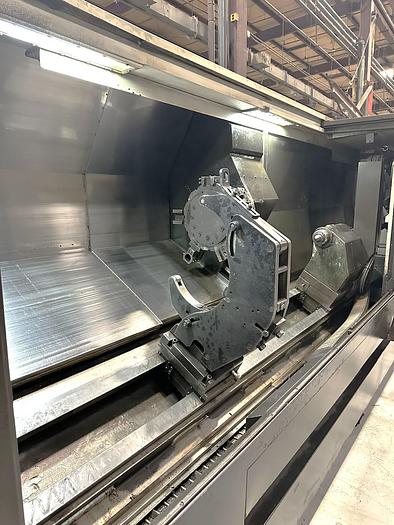

RIP 216 Manual Steady Rest with 0.5" - 16" Capacity
Ultra Long Bed Design Option

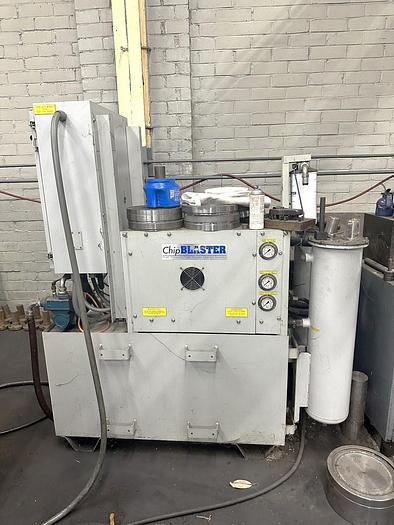

Chip Blaster Model JV40 High Pressure Coolant System
Coolant System with Tank & Pump PCMCIA Card Interface
USB Port Interface RS 232 Port Interface
Boxed Ways
30 Degree One Piece Cast Slant Bed Miscellaneous Live and Static Tooling
**Run Time Hours 12,423**
**Estimated Spindle Hours 4,800**
Specifications
| Manufacturer | Doosan |
| Model | Puma 3100ULY |
| Year | 2010 |
| Condition | Used |
| Stock Number | 119416 |

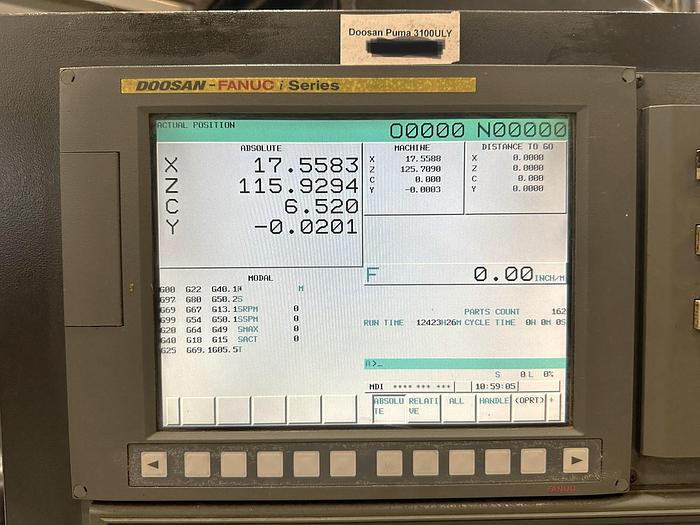

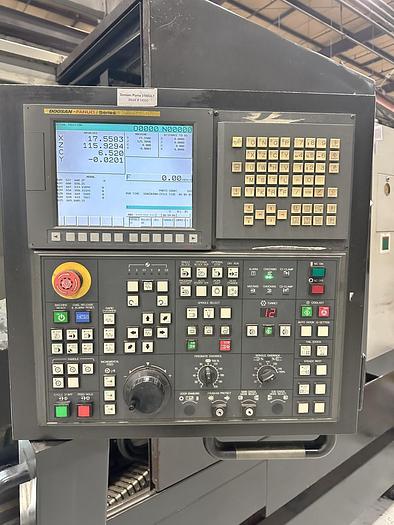

| Control | Fanuc i Series Control |
| Chuck Size | 15" 3 Jaw Hydraulic Chuck |
| Maximum Swing over Bed | 33.46" |
| Maximum Cutting Diameter | 16.5" |
| Maximum Machining Length | 123" |
| Maximum Bar Capacity | 4.02" |
| X-Axis Travel | 11.554" |
| Y-Axis Travel | 5.12" |
| Z-Axis Travel | 125.6" |
| C Axis Spindle Rotation | .001 Degree |
| Spindle Nose / Spindle Bore | A2-11" / 4.52" |
| Spindle Speeds - Main | 3,000 RPM |
| Spindle Motor - Main | 40 HP |
| Spindle Torque | 848 ft./lbs. |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 10 HP |

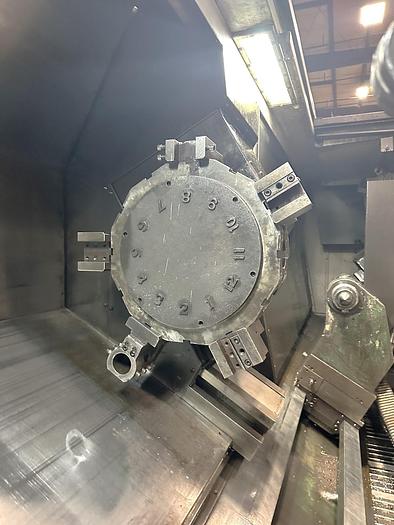

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X, Z / Y | 1181 IPM / 394 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.94" / 3.94" / MT #5 |
| Machine Dimensions | 300" x 90" x 92" |
| Machine Weight | 29,120 lbs. |
