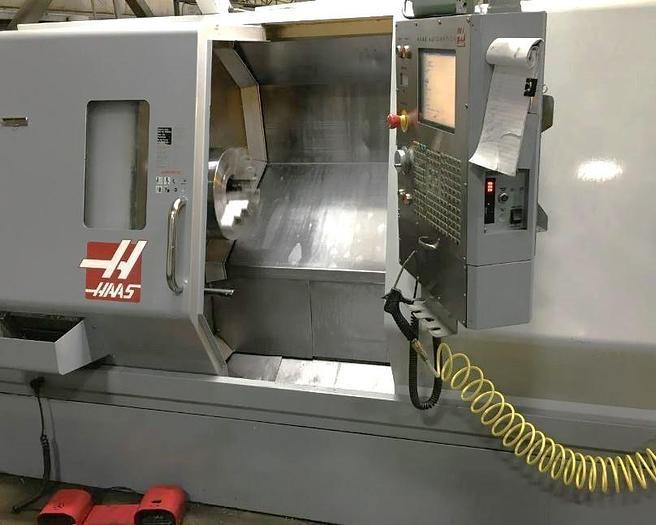

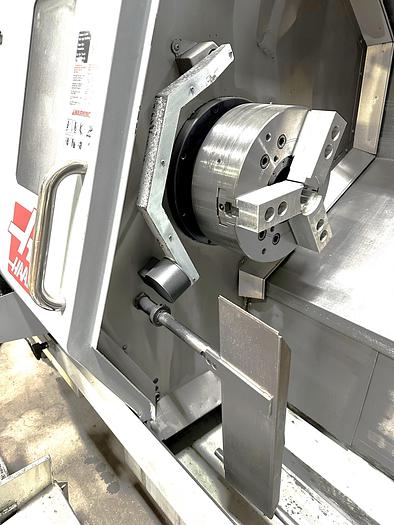

2005 Haas SL-30TB Big Bore 4" Bar Capacity
![Used 2005 Haas SL-30TB Big Bore](https://i.machineryhost.com/a5771bce93e200c36f7cd9dfd0e5deaa/ea63ef37b67b4df9b31a829b79196516/large-used-2005-haas-sl-30-tb-big-bore.jpg)
2005 Haas SL-30TB Big Bore 4" Bar Capacity
Contact us for price
Location:Utah
orCall (863) 439-6066
Description
4" Bar Capacity Big Bore Spindle Option
15" 3 Jaw Hydraulic Chuck

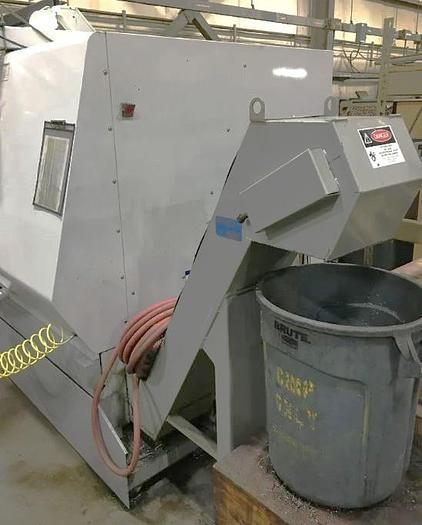

Chip Conveyor
Tool Presetter
Programmable Tailstock
Parts Catcher
High Intensity Lighting
2 Speed Gearbox

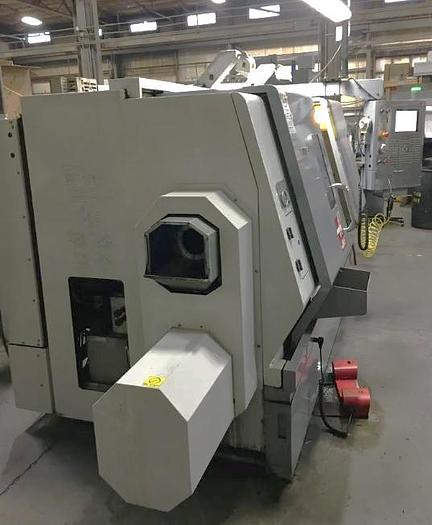

Foot Pedals for Chuck and Tailstock
1 MB Memory
Rigid Tapping

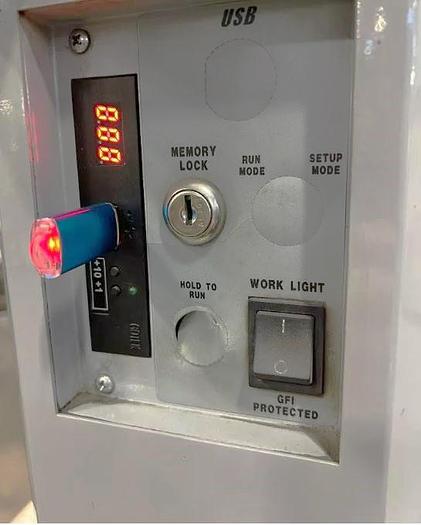

USB Port Interface
RS 232 Port Interface
208/230 V 3 phase Electrics
Miscellaneous Tooling as seen on turret, less the perishable tooling

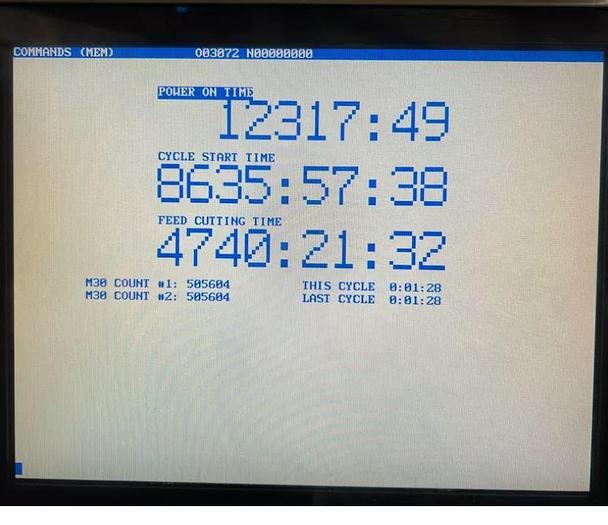

**Power On Hours 12,317**
**Cycle Start Hours 8,635**
**Feed Cutting Hours 4,740**
**Machine is NOT a production machine and has been well maintained. It was recently decommissioned from service, but can be put to power for inspection**
**Manufactured New in June of 2005**
Specifications
Manufacturer | Haas |
Model | SL-30TB Big Bore |
Year | 2005 |
Condition | Used |
Stock Number | 119420 |

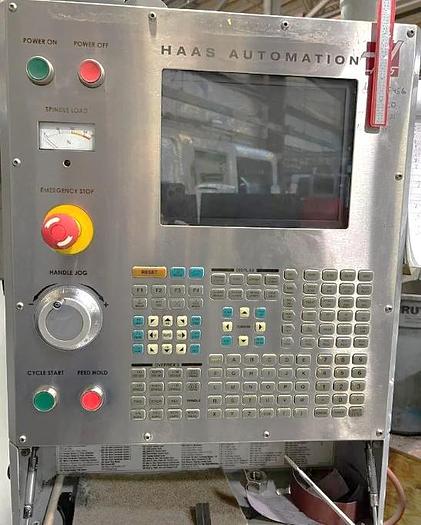

Machine Control | Haas 32 BIT |
Chuck Size | 15" 3-Jaw Hydraulic |
Maximum Swing | 30" |
Maximum Swing Over Cross Slide | 14.5" |
Maximum Cutting Diameter | 16" |
Maximum Turning Length | 34" |
Maximum Bar Capacity | 4.0" |
Distance Between Centers | 39" |
X-Axis Travel | 11.3" |
Z-Axis Travel | 34" |
Spindle Nose / Spindle Bore | A2-8" / 4.62" |
Spindle Speeds | 2,400 RPM |
Spindle Motor | 40 HP |

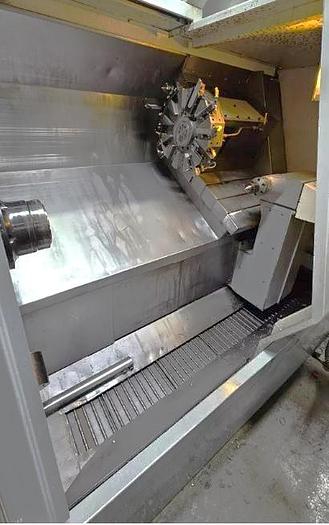

Number of Turret Positions | 12 Station Turret - Block Style |
Rapid Traverse Rates | 710 IPM |
Tailstock Body Travel / Taper | 33.5" / MT #4 |
Machine Dimensions LxWxH | 194" x 80" x 86" with Conveyor |
Machine Weight | 16,000 lbs |
