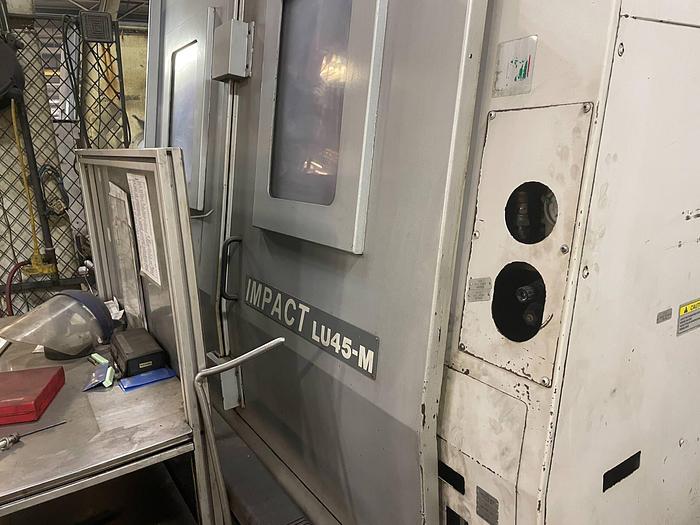

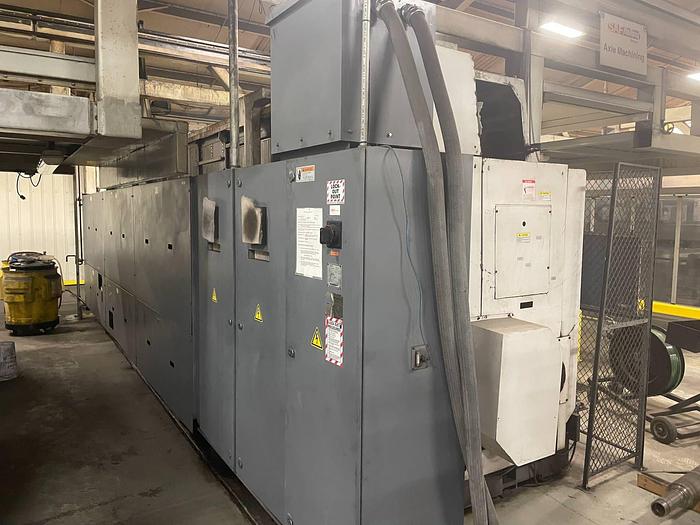

2010 Okuma Impact LU45M-II / 3000
2010 Okuma Impact LU45M-II / 3000
Contact us for price
Location:Missouri
orCall (863) 439-6066
Description

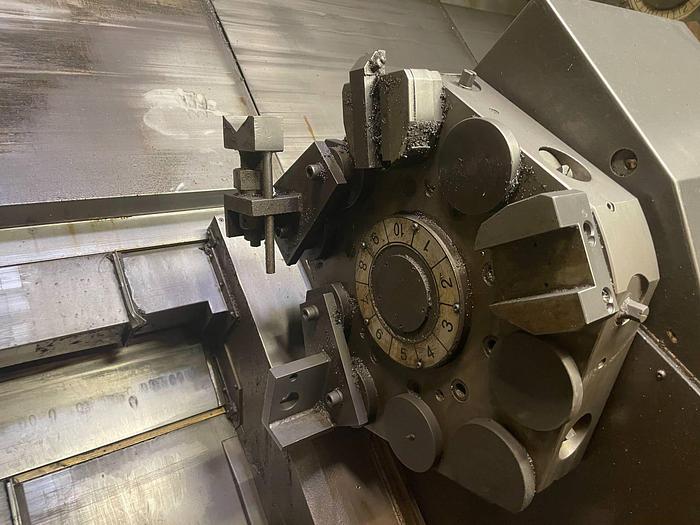

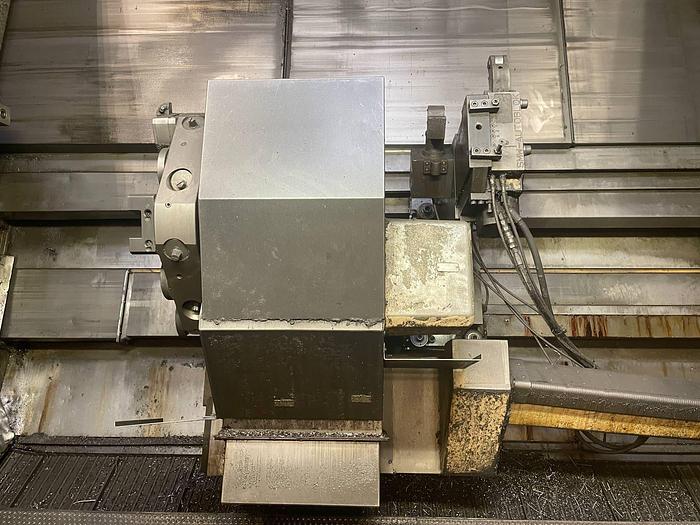

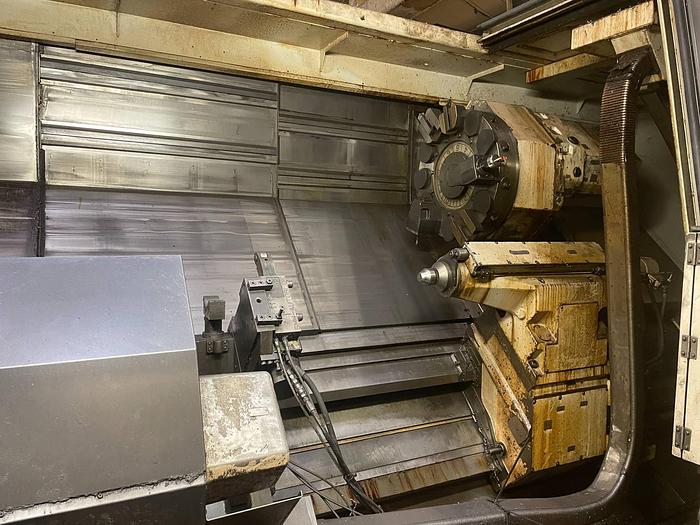

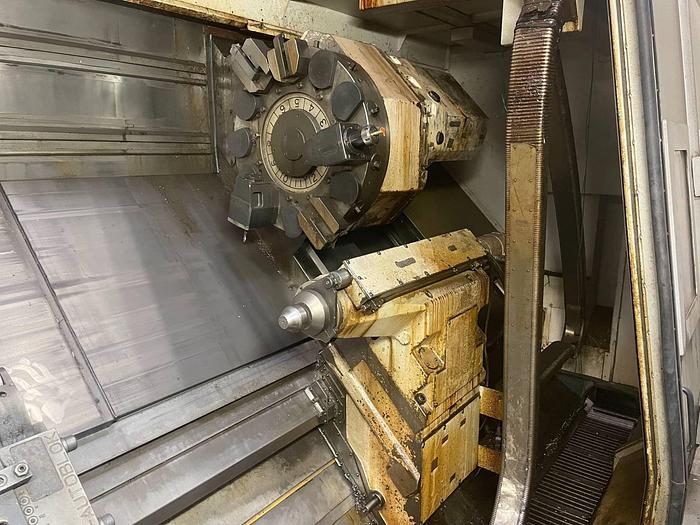

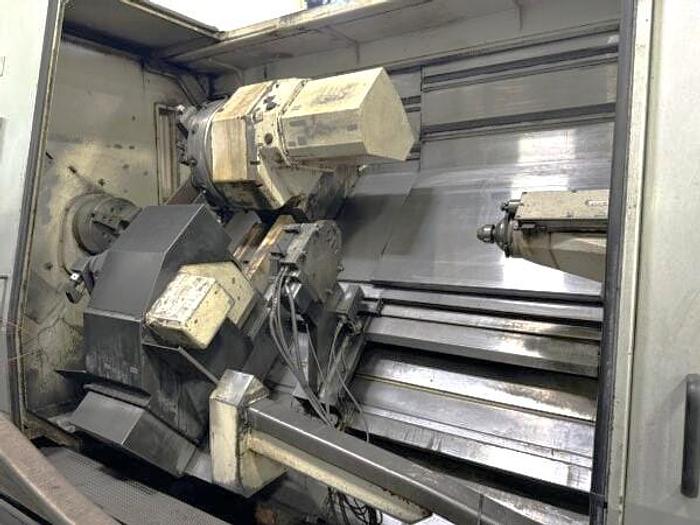

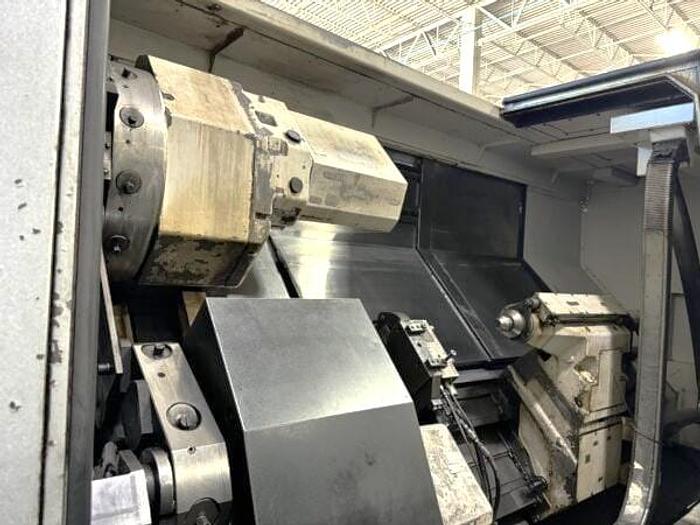

Upper and Lower Turret
SMW Autoblock Hydraulic Steadyrest
Extended Tailstock Travel
Live Tooling

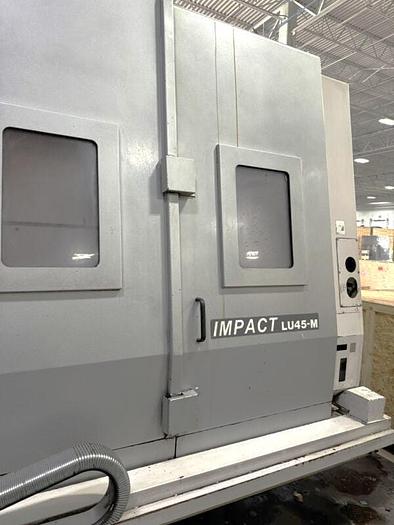

Auto Door
Air Mist Unit

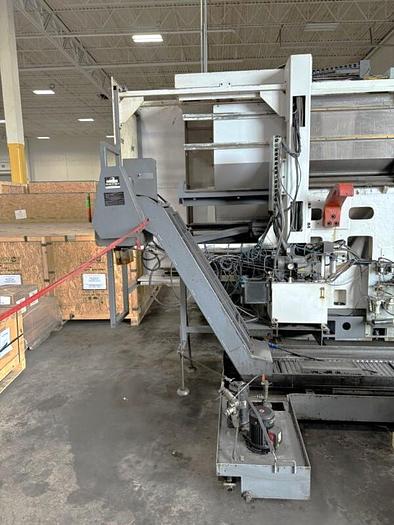

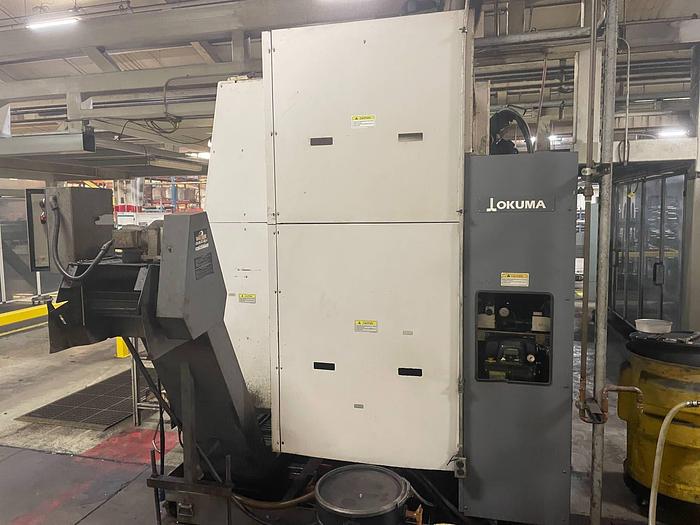

Chip Conveyor
IGF Conversational Programming
All Available Manuals
Replacement cost is over $800k
Specifications
| Manufacturer | Okuma |
| Model | Impact LU45M-II / 3000 |
| Year | 2010 |
| Condition | Used |
| Stock Number | 119435 |

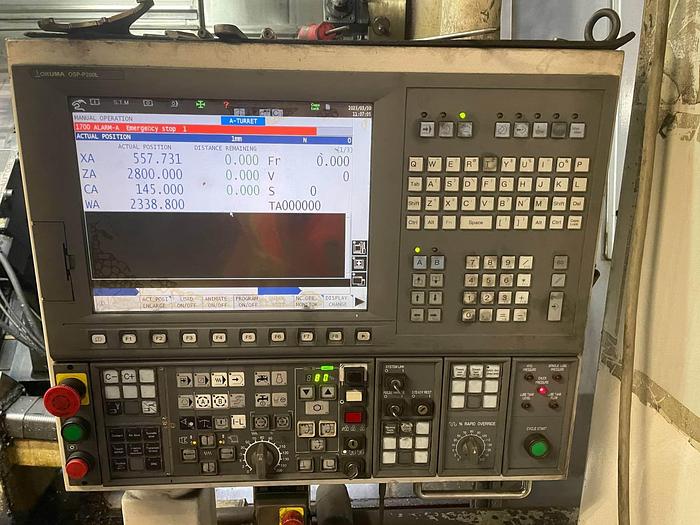

| Machine Control | OSP-300L |

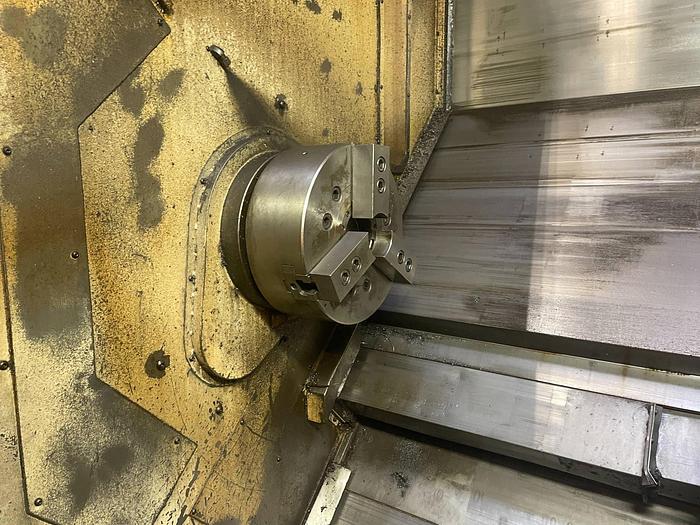

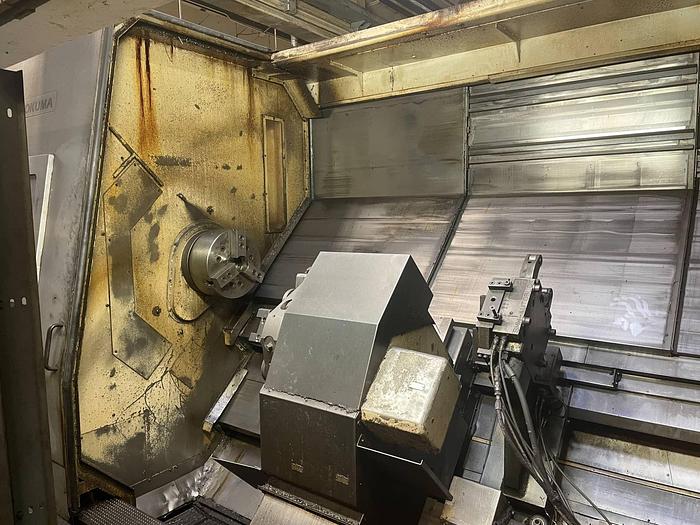

| Chuck Size | 15" 3-Jaw |
| Maximum Swing | 33.46" |
| Distance Between Centers | 118.11" |
| Maximum Cutting Diameter | 22.83" |
| X-axis travel | 11.81" |
| Z-Axis Travel | 120" |
| C-Axis Rotation | .001 Degrees |
| Spindle Nose / Bore / Bar Capacity | A2-11" / 4.75" / 4.33" |
| Spindle Speed | 3,000 RPM |
| Spindle Motor | 30 HP |
| Rotary Tool Speed / Rotary Motor | 2,000 RPM / 10 HP |
| Number of Turrets | 2 |
| Number of Turret Positions | 12 Upper / 10 Lower |
| Tailstock Quill Diameter / Quill Travel / Taper | 5.12" / 6.69" / #5MT |
| Rapid Traverse Rates X / Z | 787 IPM / 945 IPM |
| Machine Dimensions LxWxH | 205"x90"x94" |
| Machine Weight | 33,070 lbs |
