2012 Haas VF4SS
![Used 2012 Haas VF4SS](https://i.machineryhost.com/a5771bce93e200c36f7cd9dfd0e5deaa/ca7da087aff6f9de155cebc734c359c4/large-used-2012-haas-vf-4-ss.jpg)
No longer available
2012 Haas VF4SS
Location:Washington
Description
24+1 Position Side Mounted Tool Changer
Haas Wireless Tool & Part Probing - Renishaw
Auger Style Chip Conveyor
Programmable Coolant Nozzle
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Visual Part Programming System
Rigid Tapping
Coolant System with Tank & Pump
Inline Direct Drive 12,000 RPM Spindle
Wired 195V - 260V Electrics
USB Port Interface
RS 232C Port Interface for DNC Operation

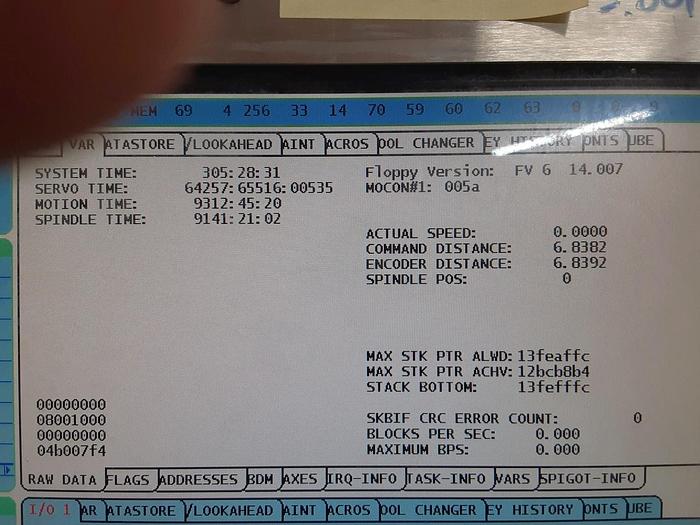

**Machine Motion Hours 9,312**
**Machine Spindle Hours 9,141**
**Price new as equipped today at $103,280**
Specifications
Manufacturer | Haas |
Model | VF4SS |
Year | 2012 |
Condition | Used |
Stock Number | 119437 |
Table size | 52" x 18" |
Max table load | 1,750 lbs |
X axis travel | 50" |
Y axis travel | 20" |
Z axis travel | 25" |
Spindle taper | CAT #40 |
Spindle speed | 12,000 RPM |
Spindle motor | 30 HP - Direct Drive |
Spindle nose to table top | 4.2" - 29.2" |
Number of tool positions | 24 + 1 Position Side Mounted ATC |
Max tool weight | 12 lbs. |
Rapid feed rate (x,y,z) | 1,400 IPM |
Cutting feed rate | 0.1 - 833 IPM |
Machine dimensions | 152" x 99" x 106" |
Machine weight (approximately) | 13,800 lbs. |
