2021 Haas VF-6/40
No longer available
2021 Haas VF-6/40
Location:California
Description
10,000 RPM Spindle Option
30 Station Side Mounted Tool Changer
Programmable Coolant Nozzle
High-Speed Machining
Auger Style Chip Conveyor
Visual Quick Code Programming
Remote Jog Handle
USB Port Interface
RS 232 Port Interface
1 GB Programming Memory
95 Gallon Coolant Tank
Rigid Tapping
196/230 V 3-Phase
All Available Manuals

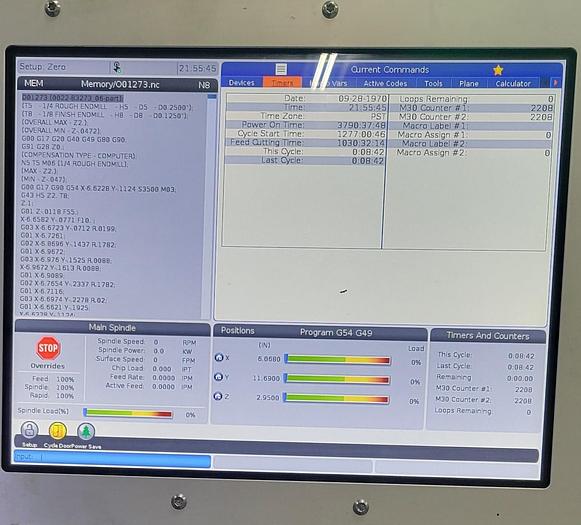

**ONLY 1030 Feed Cut Hours**
**Replacement cost today $156,000**
Specifications
| Manufacturer | Haas |
| Model | VF-6/40 |
| Year | 2021 |
| Condition | Used |
| Stock Number | 119445 |
| Machine Control | Haas CNC Control |
| Table size | 64"x28" |
| Maximum Table Load | 4,000 lbs |
| X-Axis Travel | 64" |
| Y-Axis Travel | 32" |
| Z-Axis Travel | 30" |
| Spindle Taper | CAT 40 |
| Spindle Motor | 20 hp |
| Spindle Speeds | 10,000 rpm |
| Spindle Torque | 450 ft lbs |
| Distance Spindle Nose to Table Top | 5"-35" |
| Tool Magazine Capacity | 30 Position Side Mount |
| Rapid Traverse Rates X, Y / Z | 540 ipm, 540 ipm / 600 ipm |
| Machine Dimensions LxWxH | 156"x123"x129" |
| Machine Weight | 21,000 lbs |
