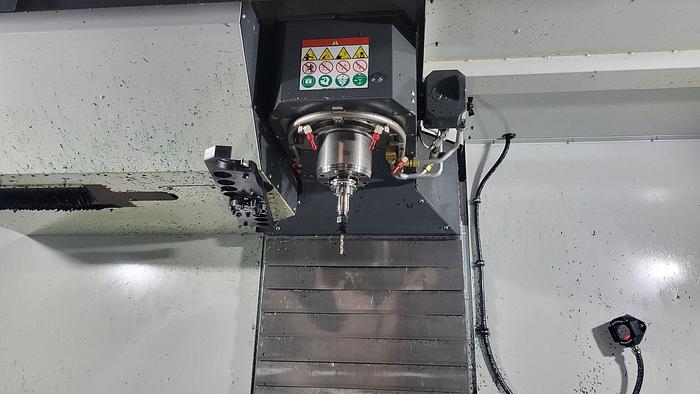

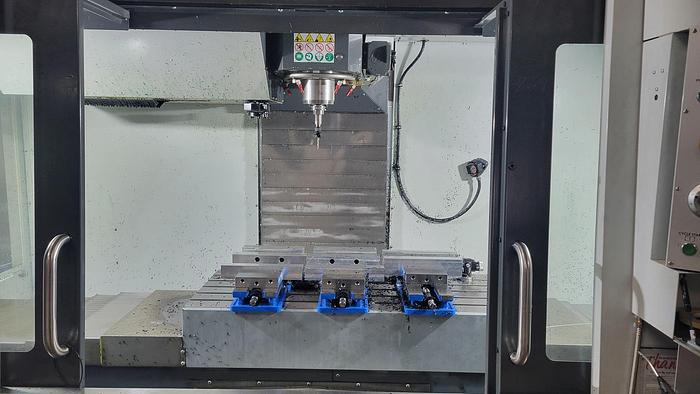

2021 Haas VF-3SS
![Used 2021 Haas VF3SS](https://i.machineryhost.com/a5771bce93e200c36f7cd9dfd0e5deaa/3ec9a1f87bac434fe451860c9939e7b0/large-used-2021-haas-vf-3-ss.jpg)
2021 Haas VF-3SS
Contact us for price
Location:California
orCall (863) 439-6066
Description
30 Position Side Mounted Tool Changer
Haas Wireless Tool & Part Probing (WIPS)
High Speed Machining
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Visual Part Programming
Programmable Coolant Nozzle
Prepped for Coolant Thru the Spindle
Chip Auger
Rigid Tapping
USB Port Interface
RS 232 Port Interface
1 GB Programming Memory
Coolant Tank with Pump
RS 232C Port Interface for DNC Operation
All Available Manuals

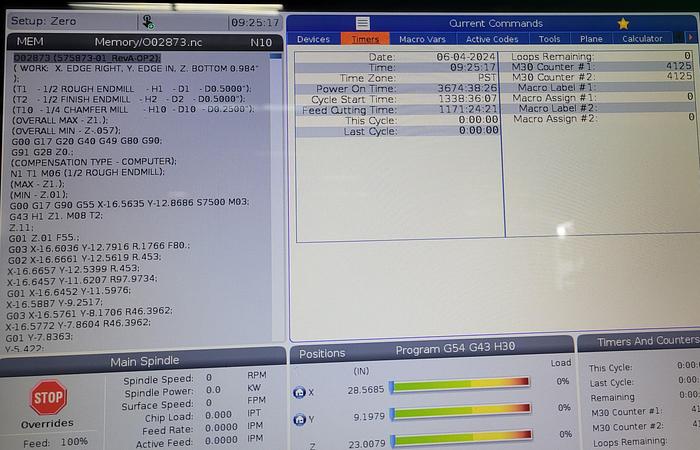

**Power On Hours 3,674**
**ONLY 1,171 Feed Cutting Hours**
**Price New Today as Equipped at $103,870**
Specifications
Manufacturer | Haas |
Model | VF-3SS |
Year | 2021 |
Condition | Used |
Stock Number | 119446 |
Table size | 48" x 18" |
Max table load | 1,750 lbs |
X axis travel | 40" |
Y axis travel | 20" |
Z axis travel | 25" |
Spindle taper | CAT #40 |
Spindle speed | 12,000 RPM |
Spindle motor | 30 HP - Direct Drive |
Spindle nose to table top | 4.2" - 29.2" |
Number of tool positions | 30 Position Side Mount |
Max tool weight | 12 lbs. |
Rapid feed rate (x,y,z) | 1,400 IPM |
Cutting feed rate | 0.1 - 833 IPM |
Machine dimensions | 122" x 98" x 98.5" |
Machine weight (approximately) | 12,500 lbs. |
