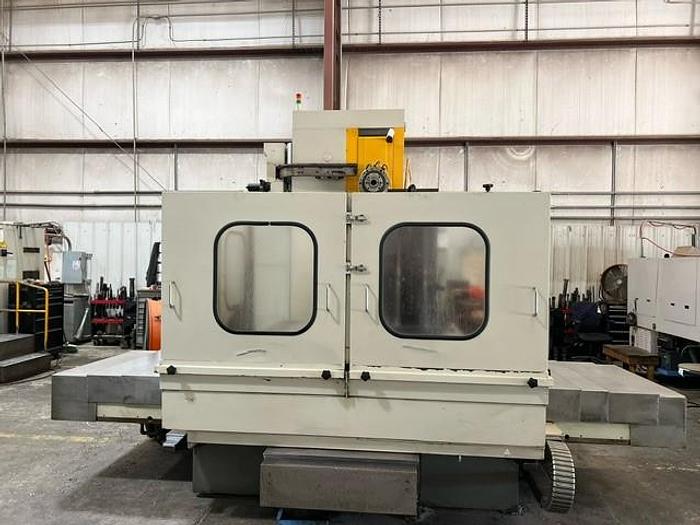

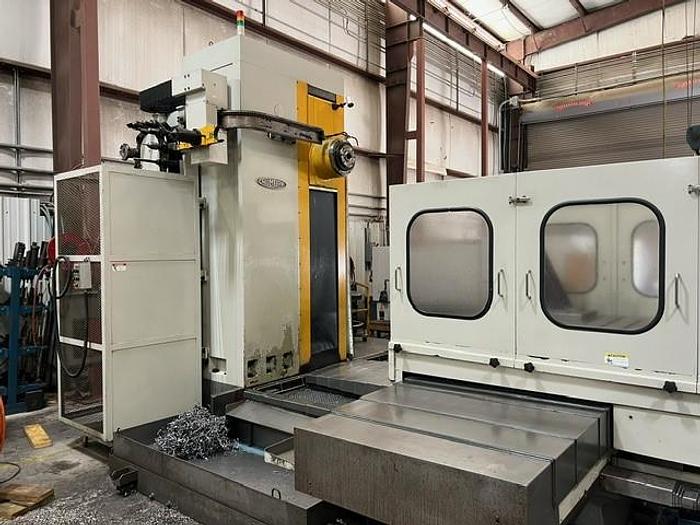

2014 Nomura HBA-110TR3 CNC Table Type Horizontal Boring Mill
![Used 2014 Nomura HBA-110TR3 CNC Table Type Horizontal Boring Mill](https://i.machineryhost.com/a5771bce93e200c36f7cd9dfd0e5deaa/af061362eb3c60fe3f933b7dbbe1b990/large-used-2014-nomura-hba-110-tr-3-cnc-table-type-horizontal-boring-mill.jpg)
2014 Nomura HBA-110TR3 CNC Table Type Horizontal Boring Mill
$299,500 (USD)
Location:Texas
orCall (863) 439-6066
Description
Full B Axis Rotary Table .001 Degree

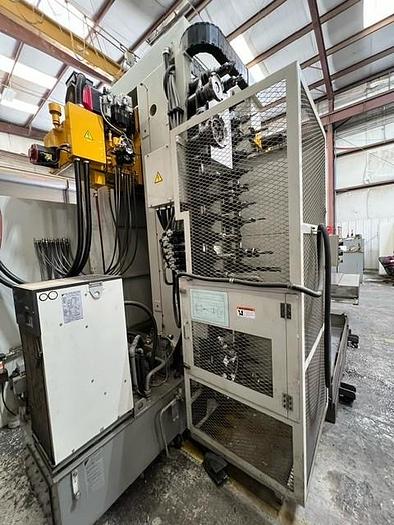

38 Station Tool Changer
Coolant Through the Spindle
Full Guarding
Way Covers
Machine Status Condition Lights

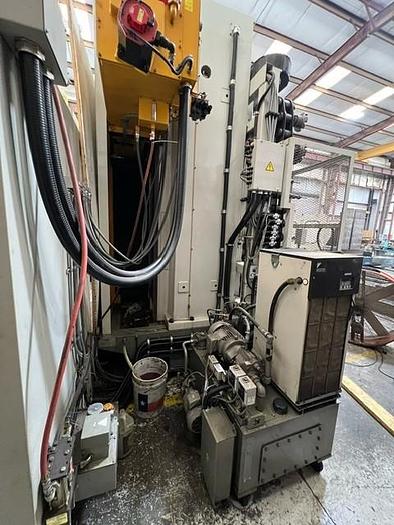

Coolant System
Operator Pendant
Remote Jog Handle
**Top Quality Japanese Built Machine**
**Price New as Equipped At Over $700,000**
Specifications
Manufacturer | Nomura |
Model | HBA-110TR3 CNC Table Type Horizontal Boring Mill |
Year | 2014 |
Condition | Used |
Stock Number | 119466 |

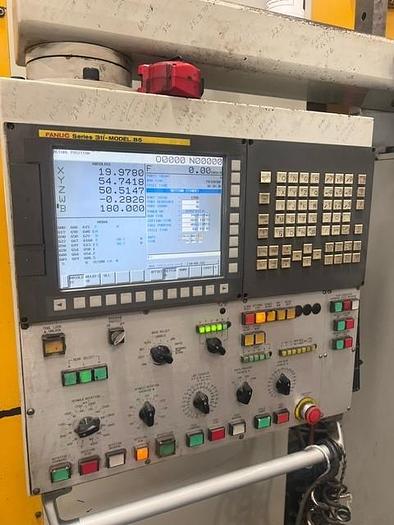

Machine Control | Fanuc 31i-Model B5 |
Table size | 63" x 55.1" |
Table indexing increment | .001 Degree Rotary |
Table load capacity | 15,400 lbs. |
X axis travel - cross | 78.7" |
Y axis travel - vertical | 59" |
Z axis travel - in/out saddle | 55" |
W axis travel - in/out spindle | 19.71" |
Spindle diameter | 4.3" |
Spindle taper | CAT #50 Taper |
Spindle speeds - 3 ranges | 5 - 4,000 RPM |
Spindle motor | 30 HP - 2 Range Geared |
Number of tool positions | 38 Position ATC |
Max. tool diam./length | 9.5" / 15.7" |
Rapid traverse x, y, z / w | 394 / 197 IPM |
Cutting feedrates | 236 IPM |
Machine dimensions | 202" x 243" x 156" |
Machine weight | 63,800 lbs. |
