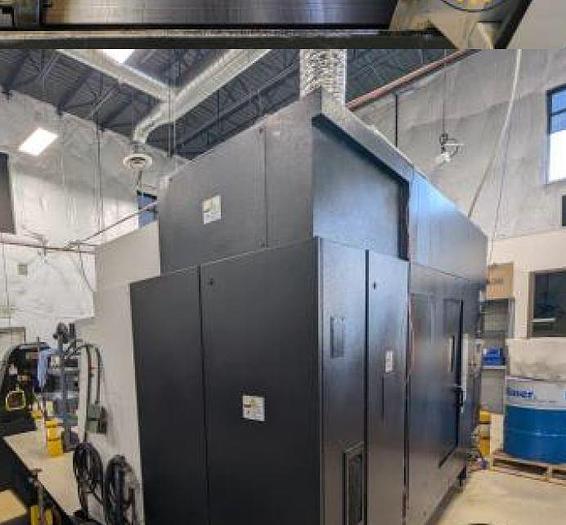

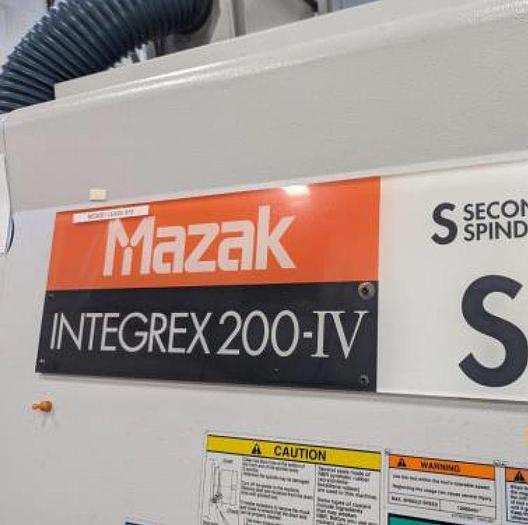

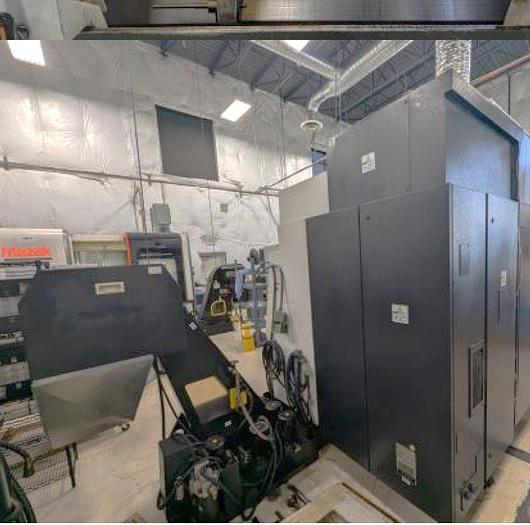

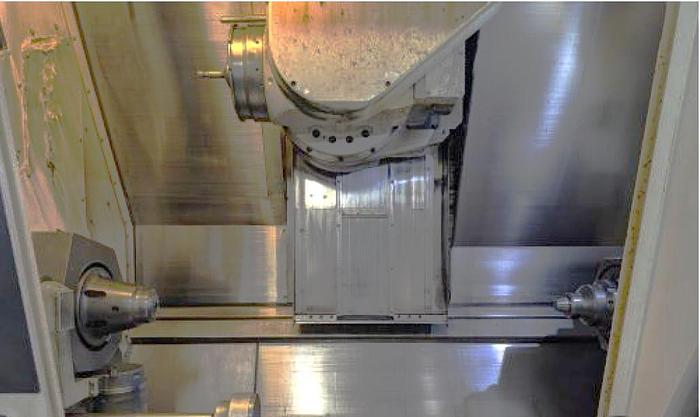

2007 Mazak Integrex 200-IV S
![Used 2007 Mazak Integrex 200-IV S](https://i.machineryhost.com/a5771bce93e200c36f7cd9dfd0e5deaa/e46fd35f834fddd5f9f559cf8470bf8a/large-used-2007-mazak-integrex-200-iv-s.jpg)
2007 Mazak Integrex 200-IV S
$99,500 (USD)
Location:Utah
Description
B Axis Pendulum Head - 225 Degree
Y Axis Capability
Subspindle
C Axis on Both Spindles - .0001 Indexing on Main / .001 Indexing on Subspindle
Live Milling on Upper Turret
Collet Chuck on Main Spindle
Collet Chuck on Subspindle
Chip Conveyor
Automatic Parts Catcher
Automatic Tool Eye
Tri-Mist Mist Collector
Milling Spindle Synchronous Tapping
EIA/ISO Input Function
EIA 3D Compensation
EIA Helical Tapping Cycle
EIA Pattern Cycle
Tool Center Point Control
Tilted Work Plane
5 Axis Tool Compensation
Simultaneous 5 Axis
Cylindrical Compensation
Variable 400 Sets
Comparison Stop
Polar Coordinates Input
Inverse Time
Thread
Shape Compensation
Rotation & Scaling
3.5" Floppy Disk Drive
PCMCIA Interface - 2 Slots
IC Memory Card Interface
RS-232C Port for DNC Interface
15" Color LCD Screen
Main & Subspindle Synchronization
All Available Manuals
Specifications
Manufacturer | Mazak |
Model | Integrex 200-IV S |
Year | 2007 |
Condition | Used |
Stock Number | 119468 |

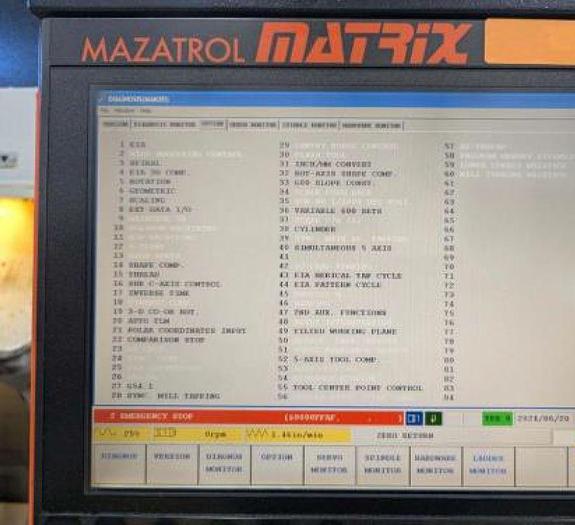

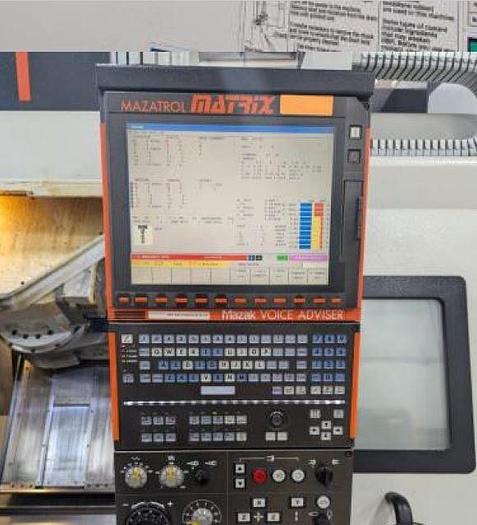

Machine Control | Mazatrol Matrix |
Chuck Sizes Main / Subspindle | Collet Chucks on both spindles |
Maximum Swing | 25.91" |
Maximum Turning Diameter | 25.91" for chucking |
Distance Between Centers | 60" |
X-Axis Travel | 24.21" |
Y-Axis Travel | +/- 3.15" |
Z-Axis Travel | 62.4" |
W-Axis Travel | 61.34" (subspindle) |
C-Axis Rotation | .0001 Degree - Main Spindle / .001 Subspindle |
B-Axis Tilt Movement | 225 Degrees in .0001 Degree Increment |
Spindle Nose / Bore / Bar Capacity | A2-6" / 2.99" / 2" |
Spindle Speed | 5,000 RPM |
Spindle Motor | 30 HP |
Subspindle Speed | 5,000 RPM |
Subspindle Motor | 25 HP |
Milling Tool Shank | Capto C6 |
Milling Spindle Speed | 12,000 RPM |
Milling Spindle Motor | 25 HP |
Tool Magazine Capacity | 40 Station Tool Changer |
Rapid Traverse Rates (X, Y, Z) | 1496 IPM, 1024 IPM, 1496 IPM |
Machine Dimensions LxWxH | 180" x 87" x 103" |
Machine Weight | 28,700 lbs |
