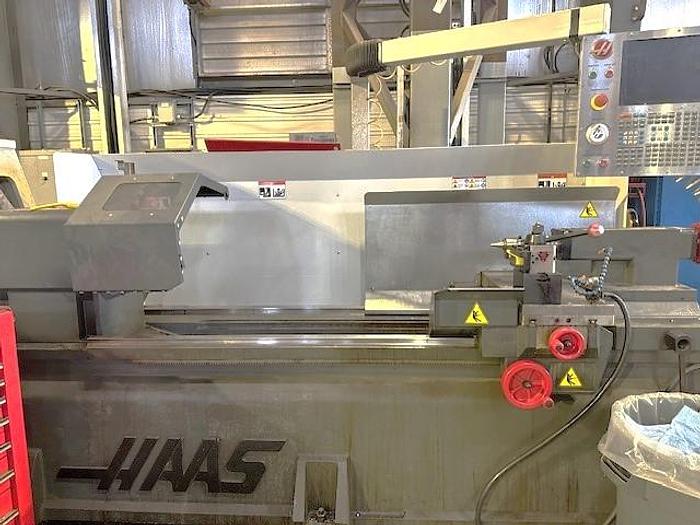

2016 Haas TL-3
![Used 2016 Haas TL-3](https://i.machineryhost.com/a5771bce93e200c36f7cd9dfd0e5deaa/25043f3d19f90ebcb8c3192c73a8afae/large-used-2016-haas-tl-3.jpg)
No longer available
2016 Haas TL-3
$56,950 (USD)
Location:Alberta, Canada
Description
12" 4 Jaw Chuck
Quick Change Tool Post
Tailstock
Hand Wheels for Manual Movement
Intuitive Programming System
Chuck Cover
15" LCD Color Monitor
Memory Lock Key Switch
2-Speed Gearbox
Work Light
Coolant Tank & Pump
USB Port Interface
RS 232 Port Interface
**Recently removed from a maintenance shop that almost never used it, 1 owner machine**

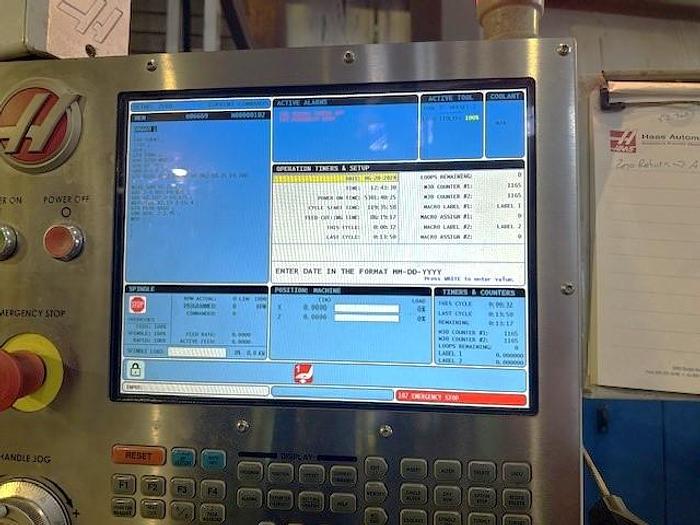

**Power On Hours 5,301**
**Cycle Start Hours 119**
**Feed Cut Hours 86**
Specifications
Manufacturer | Haas |
Model | TL-3 |
Year | 2016 |
Condition | Used |
Stock Number | 119469 |
Machine Control | Haas CNC Control |
Chuck Size | 12" 3-Jaw |
Maximum Swing | 20" |
Maximum Swing Over Cross Slide | 13" |
Maximum Machining Diameter | 20" |
Distance Between Centers | 60" |
X-axis travel | 16" |
Z-Axis Travel | 60" |
Spindle Speeds | 0 - 1,800 rpm |
Spindle Nose / Bore / Bar Capacity | A2-6" / 3.5" / 3" |
Spindle Motor | 18 HP |
Number of Tool Positions | Tool Post |
Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
Tailstock Bore Taper | #5 MT |
Machine Dimensions LxWxH | 123"x77"x87" |
Machine Weight | 7,624 lbs |
