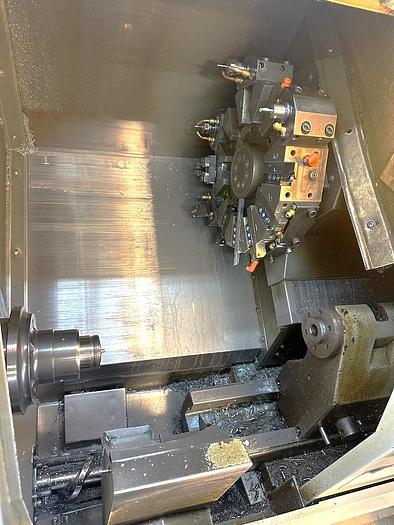

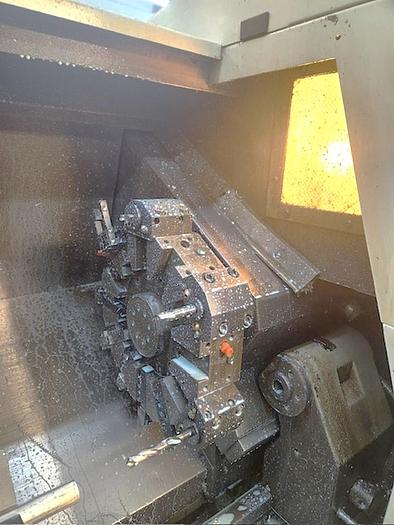

2007 Haas SL-10T
![Used 2007 Haas SL-10T](https://i.machineryhost.com/a5771bce93e200c36f7cd9dfd0e5deaa/f5050f1bd0ba74cbd26fd42adf2bd742/large-used-2007-haas-sl-10-t.jpg)
2007 Haas SL-10T
$24,900 (USD)
Location:California
orCall (863) 439-6066
Description
6.5" 3 Jaw Hydraulic Chuck
Collet Chuck
Parts Catcher
Auger Style Chip Conveyor
Tailstock
USB Port Interface
RS 232 Port Interface
Rigid Tapping
Coolant System with Tank & Pump
All Available Manuals
All Available Tooling
**Power On Hours 16,241**
**Cycle Start Hours 4,853**
**Feed Cutting Hours 3,667**
Specifications
Manufacturer | Haas |
Model | SL-10T |
Year | 2007 |
Condition | Used |
Stock Number | 119473 |
Machine Control | Haas CNC Control |
Chuck Size | 6.5" Hydraulic / Collet Chuck |
Maximum Swing | 16.25 |
Maximum Swing Over Cross Slide | 8" |
Maximum Machining Diameter | 11" |
Distance Between Centers | 16.5" |
X-axis travel | 6.25" |
Z-Axis Travel | 14" |
Spindle Speeds | 6,000 RPM |
Spindle Nose / Spindle Bore | A2-5" / 2.31" |
Spindle Motor | 15 HP |
Number of Turret Positions | 12 Station Block Turret |
Rapid Traverse Rates | 1,200 IPM |
Tailstock Center / Diameter | #3 MT / NA |
Tailstock Quill Travel | 4" |
Machine Dimensions LxWxH | 96"x54"x70" |
Machine Weight | 6,000 lbs |
