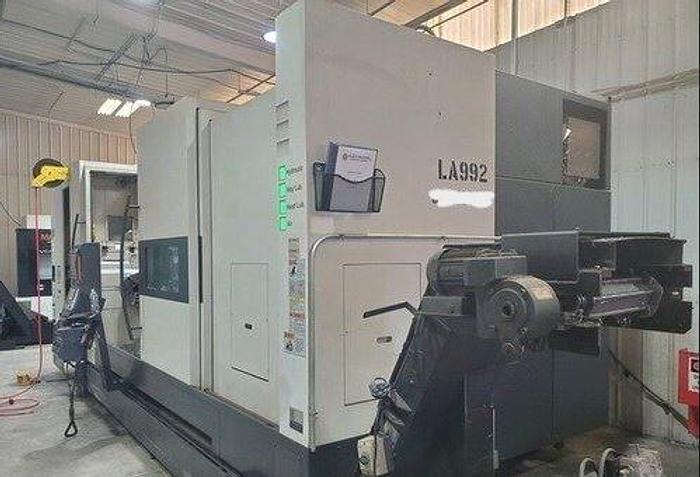

2006 Mazak Integrex E-410H/3000 Mill Turn Lathe w/ B Axis, Steady Rest
No longer available
2006 Mazak Integrex E-410H/3000 Mill Turn Lathe w/ B Axis, Steady Rest
Location:Colorado
Description
Full 5 Axis Option
New Milling Spindle
Y Axis Capability Full C Axis Spindle Rotation Live Milling/Drilling Capability B Axis Pendulum Head
B-Axis Contouring
15" Kitagawa 3 Jaw Hydraulic Chuck
Programmable Tailstock

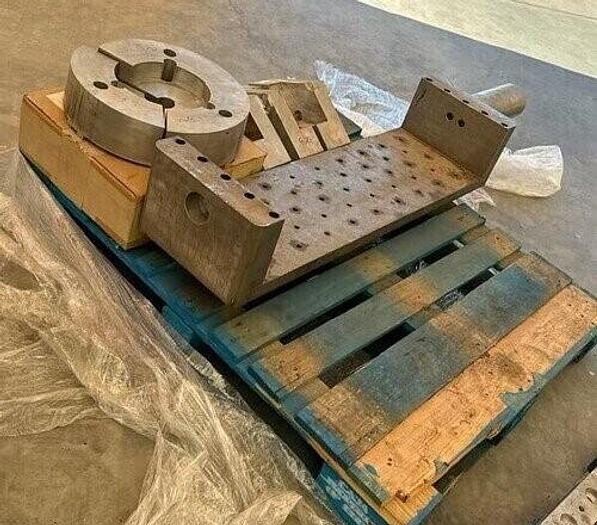

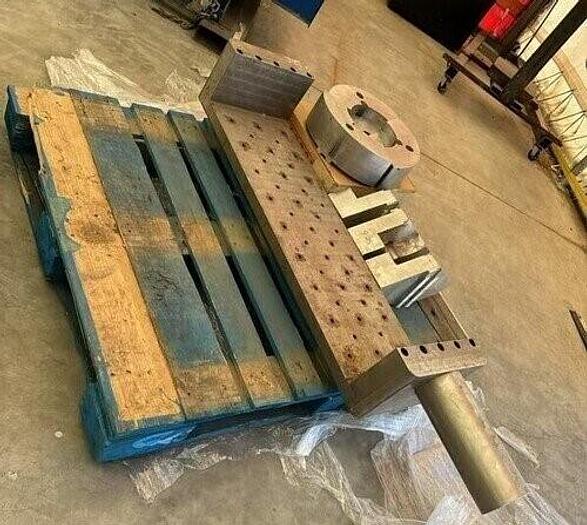

Hydraulic Steady Rest
80 Station Tool Changer Chip Conveyor
Probing Package (missing probe)
Coolant Through the Spindle
Remote Jog Handle
Ethernet
Rigid Tapping
PCMCIA Interface
RS 232 Port Interface
Multi-Tap Transformer
All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | Integrex E-410H/3000 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 119476 |

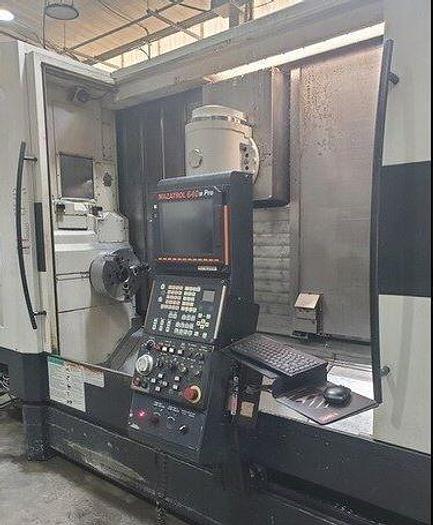

| Control | Mazatrol Fusion 640M Pro |
| Chuck Size | 15" 3 Jaw Hydraulic Chuck |
| Maximum Swing | 24.01" |
| Maximum Cutting Diameter - Chucking | 24.01" |
| Maximum Cutting Length | 120" |
| X-Axis Travel | 29.17" |
| Y-Axis Travel | +/- 8.071" |
| Z-Axis Travel | 122.55" |
| B-Axis Tilt Movement | 240 Degrees |
| B-Axis Increment | .0001 Degree |
| C Axis Spindle Rotation | .001 Degree |
| Spindle Nose / Spindle Bore | A2-8" / 3.46" |
| Spindle Speed | 4,000 RPM |
| Spindle Motor | 35 HP |
| Mill Spindle Speed / Mill Spindle Motor | 12,000 RPM / 30 HP |
| Turret Type | 1 Position with ATC |
| Rotary Tool Spindle Taper | Capto C6 |
| Number of Tool Positions | 80 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 5.9" / 15.74" / 26.5 lbs. |
| Rapid Traverse Rates X, Y, Z / W | 1969 IPM / 472 IPM |
| Machine Dimensions | 286" x 176" x 117" |
| Machine Weight | 48,722 lbs. |
