2006 Mazak Nexus QTN200 II
![Used 2006 Mazak Nexus QTN200 II](https://i.machineryhost.com/a5771bce93e200c36f7cd9dfd0e5deaa/f4ccea7e122dc9bd977a97d1f997cd8a/large-used-2006-mazak-nexus-qtn-200-ii.jpg)
2006 Mazak Nexus QTN200 II
Contact us for price
Location:Florida
orCall (863) 439-6066
Description

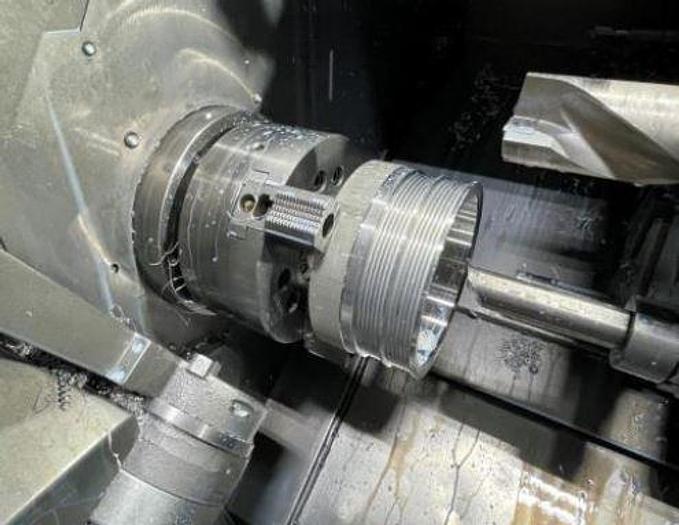

8" 3 Jaw Kitagawa Hydraulic Chuck
Automatic Tool Eye

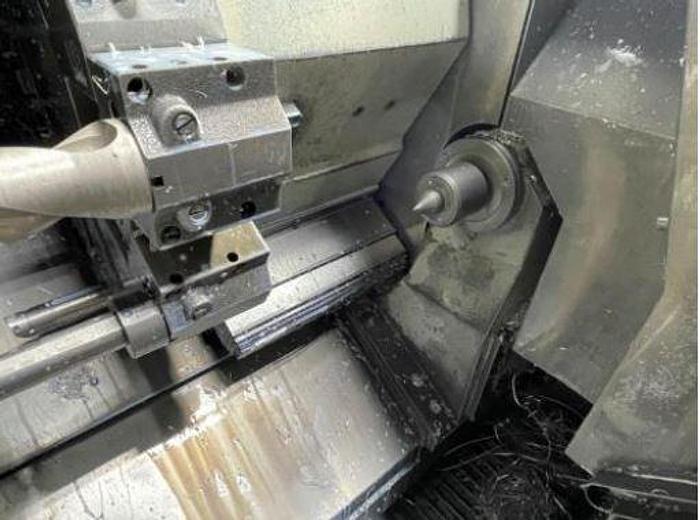

Fully Programmable Tailstock
Chip Conveyor
RS-232C Interface
Card Interface
PCMCIA Interface (2 slots)
12" Color Monitor
Multi-Tap Transformer
Hydraulic Pressure Interlock
Door Interlock
All Available Manuals
All Available Tooling
Specifications
Manufacturer | Mazak |
Model | Nexus QTN200 II |
Year | 2006 |
Condition | Used |
Stock Number | 119483 |

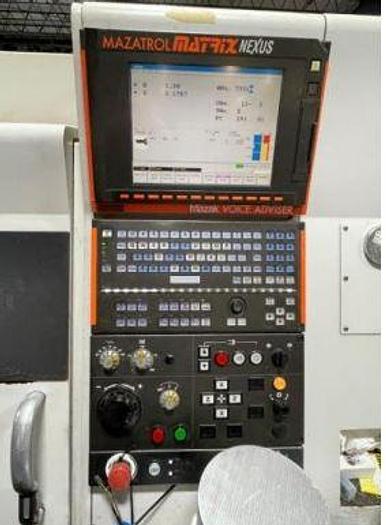

Machine Control | Mazatrol Matrix Nexus |
Chuck size | 8" Hydraulic Chk |
Maximum swing | 24" |
Maximum cutting diameter. | 14" |
Maximum machining length | 20.1" |
X-axis travel | 7.5" |
Z-axis travel | 21.125" |
Spindle Nose / Spindle Bore / Bar Capacity | A2-6" / 2.99" / 2.56" |
Spindle speed | 5,000 RPM |
Spindle motor 30 min. / cont. | 35 HP / 30 HP |
Turret type | Drum 12 Positions |
Rapid traverse x /z | 1181 / 1299 IPM |
Tailstock center/tail. body travel | MT #5 / 21.75" |
Machine dimensions lxwxh | 104" x 70" x 72" |
Machine weight | 10,803 lbs. |
