2013 Mazak Nexus QTN200-II 2 Axis CNC Lathe
No longer available
2013 Mazak Nexus QTN200-II 2 Axis CNC Lathe
Location:Florida
Description
8" Thru Hole Hydraulic Chuck
Automatic Tool Eye
Fully Programmable Tailstock
Chip Conveyor
RS-232C Interface
PCMCIA Interface (2 slots)
12" Color Monitor
Multi-Tap Transformer
Hydraulic Pressure Interlock
Door Interlock
All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN200 II Mazatrol Matrix Nexus |
| Year | 2013 |
| Condition | Used |
| Stock Number | 119482 |

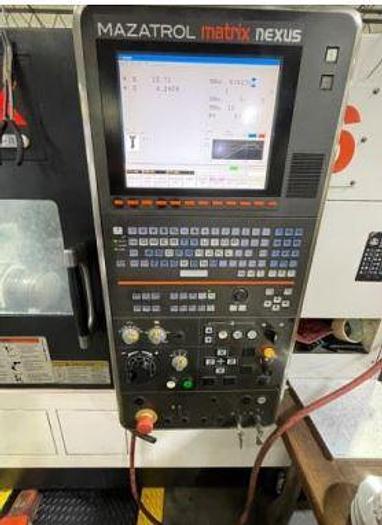

| Machine Control | Mazatrol Matrix Nexus |
| Chuck size | 8" Hydraulic Chk |
| Maximum swing | 24" |
| Maximum cutting diameter. | 14" |
| Maximum machining length | 20.1" |
| X-axis travel | 7.5" |
| Z-axis travel | 21.125" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-6 / 2.99" / 2.56" |
| Spindle speed | 5,000 RPM |
| Spindle motor 30 min. / cont. | 35 HP / 30 HP |
| Turret type | Drum 12 Position |
| Rapid traverse x /z | 1181 / 1299 IPM |
| Tailstock center/tail. body travel | MT #5 / 21.75" |
| Machine weight | 10,803 lbs. |
| Machine dimensions lxwxh | 99.6"x70.1"x72.4" |
