2009 Haas TL-2 Big Bore
2009 Haas TL-2 Big Bore
$33,500 (USD)
Location:Illinois
orCall (863) 439-6066
Description
Big Bore A2-6" Spindle Nose Option with 3" Bar Capacity
10" 3 Jaw Chuck
Manual Tailstock with #MT4 Quill
4 Station Indexing Turret
Coolant Pump Kit
Manual Hand Wheels
Rigid Tapping
Intuitive Programming System
1 MB Program Memory
15" Color LCD Monitor RS 232 Port Interface

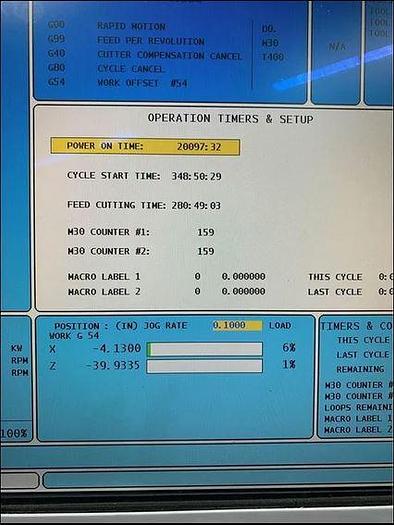

**ONLY 280 Feed Cutting Hours**
Specifications
| Manufacturer | Haas |
| Model | TL-2 Big Bore |
| Year | 2009 |
| Condition | Used |
| Stock Number | 119494 |
| Control | Haas CNC Control |
| Chuck Size | 10" 3-Jaw Chuck |
| Maximum Swing over Bed | 20" |
| Maximum Swing Over Cross Slide | 11" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 48" |
| X-axis travel | 8" |
| Z-Axis Travel | 48" |
| Spindle Nose / Spindle Bore | A2-6" / 3" |
| Spindle Speeds | 2,000 RPM |
| Spindle Motor | 12 HP |
| Number of Turret Positions | 4 Indexing Style Turret |
| Rapid Traverse Rates X/Z | 450 IPM / 450 IPM |
| Machine Dimensions | 100" x 55" x 80" |
| Machine Weight | 5,000 lbs. |
