2005 Haas VF-3SSYT
No longer available
2005 Haas VF-3SSYT
Location:Ohio
Description
Wired for 4th/5th Axis

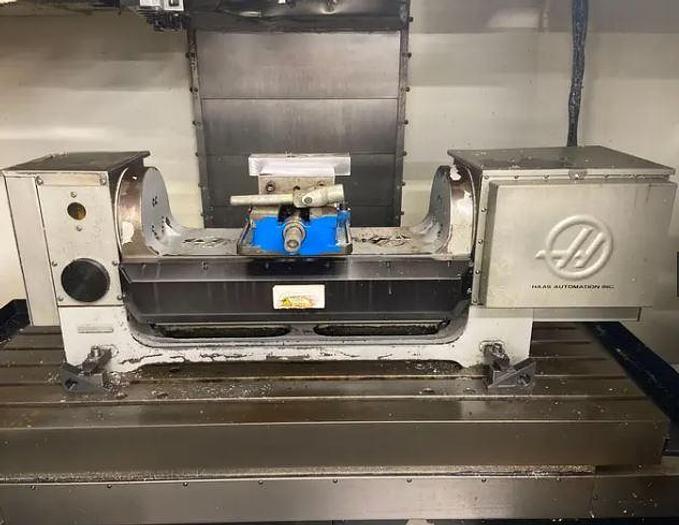

Haas Model TR-210 5-Axis Trunnion Table
Extended Y-Axis Travel

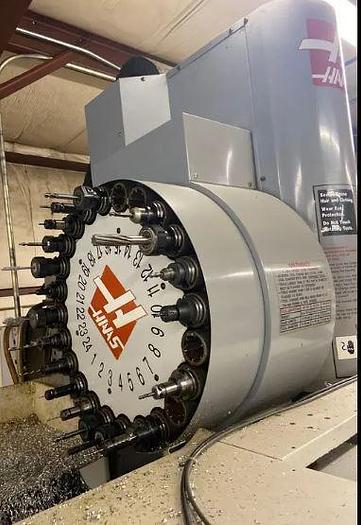

24+1 Position Side Mounted Tool Changer
1MB Program Memory
Programmable Coolant Nozzle
Rigid Tapping
Auger Style Chip Conveyor
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Remote Jog Handle
55 Gallon Flood Coolant System
Coolant Tank with Pump
Floppy Disk Drive
RS 232C Port Interface for DNC Operation
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | VF-3SSYT |
| Year | 2005 |
| Condition | Used |
| Stock Number | 119487 |
| Table size | 54" x 25" |
| Max table load | 1,750 lbs. |
| X axis travel | 40" |
| Y axis travel | 26" |
| Z axis travel | 25" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP |
| Spindle nose to table top | 4.5" - 29.5" |
| Number of Tool Positions | 24 Station Side Mounted ATC |
| Maximum Tool Diameter / Length / Weight | 7" / 16" / 30 lbs. |
| Rapid Traverse Rates | 1400 IPM |
| Cutting Feedrates | 833 IPM |
| Machine Dimensions | 156" x 102" x 109" |
| Machine Weight | 15,000 lbs. |
