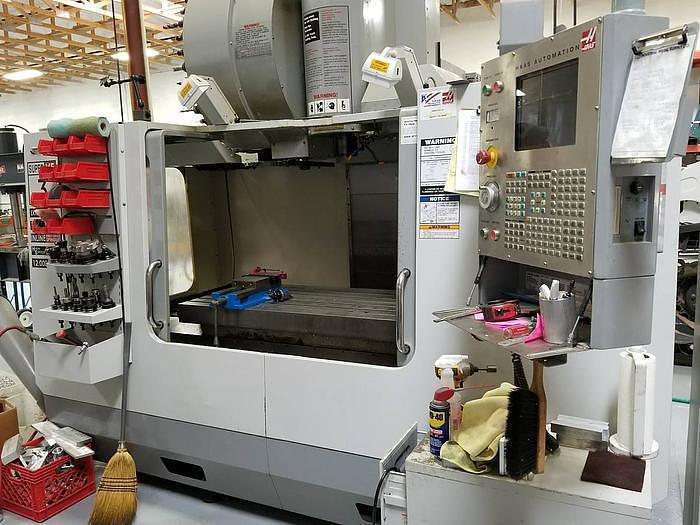

2006 Haas VF-3SSYT
2006 Haas VF-3SSYT
Contact us for price
Location:Florida
orCall (863) 439-6066
Description
Extended Y-Axis Travel

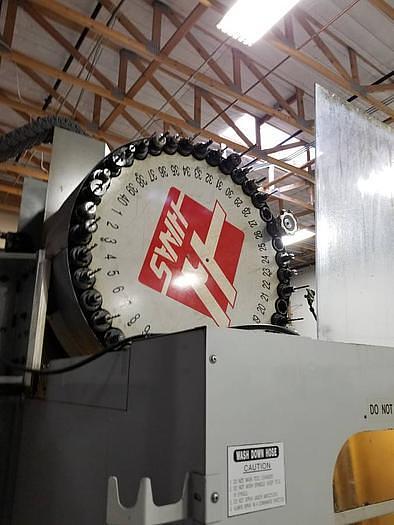

40+1 Position Side Mounted Tool Changer
1MB Program Memory
High-Speed Machining
High-Intensity Lighting
WIPS (Renishaw Tool & Part Probe)
Rigid Tapping
Auger Style Chip Conveyor
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Remote Jog Handle
55 Gallon Flood Coolant System
Coolant Tank with Pump
Ethernet Interface
RS 232C Port Interface for DNC Operation
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | VF-3SSYT |
| Year | 2006 |
| Condition | Used |
| Stock Number | 119488 |

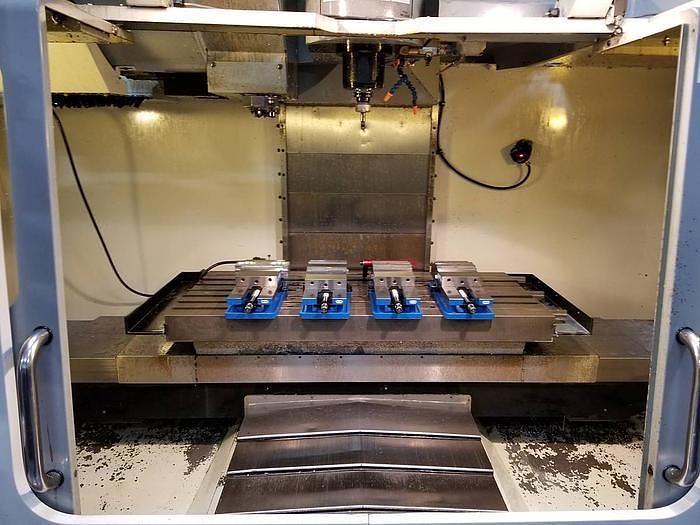

| Table size | 54" x 25" |
| Max table load | 1,750 lbs. |
| X axis travel | 40" |
| Y axis travel | 26" |
| Z axis travel | 25" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP |
| Spindle nose to table top | 4.5" - 29.5" |
| Number of Tool Positions | 40+1 Station Side Mounted ATC |
| Maximum Tool Diameter / Length / Weight | 7" / 16" / 30 lbs. |
| Rapid Traverse Rates | 1400 IPM |
| Cutting Feedrates | 833 IPM |
| Machine Dimensions | 156" x 102" x 109" |
| Machine Weight | 15,000 lbs. |
