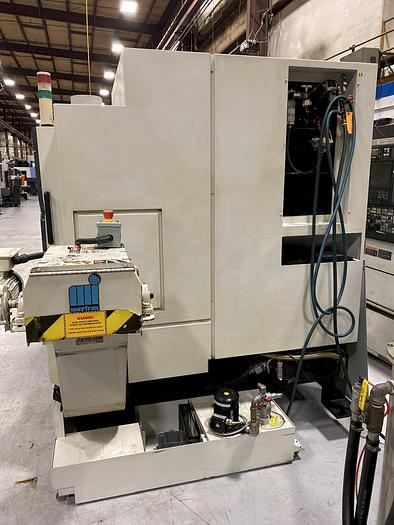

2008 Mori Seiki NL2500MC/700
![Used 2008 Mori Seiki NL2500MC/700](https://i.machineryhost.com/a5771bce93e200c36f7cd9dfd0e5deaa/44a292f291d3ba815576902b711ea42a/large-used-2008-mori-seiki-nl-2500-mc-700.jpg)
2008 Mori Seiki NL2500MC/700
$59,500 (USD)
Location:Michigan
orCall (863) 439-6066
Description
Full C Axis Spindle Rotation Live Milling/Drilling Capability 10" 3 Jaw Hydraulic Chuck Tool Presetter Chip Conveyor Programmable Tailstock

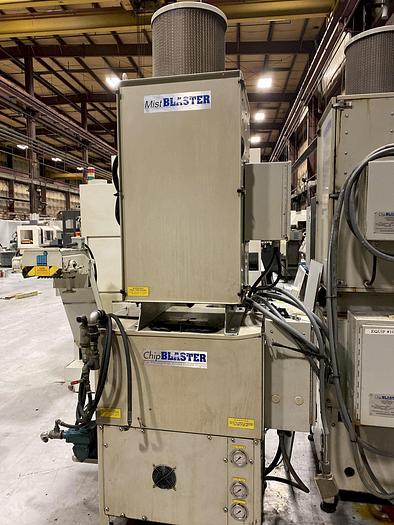

Chip Blaster Coolant System
Mist Blaster Mist Collector Complete Coolant System with Tank & Pump
Card Interface RS 232 Port Interface All Available Static Tooling All Available Manuals

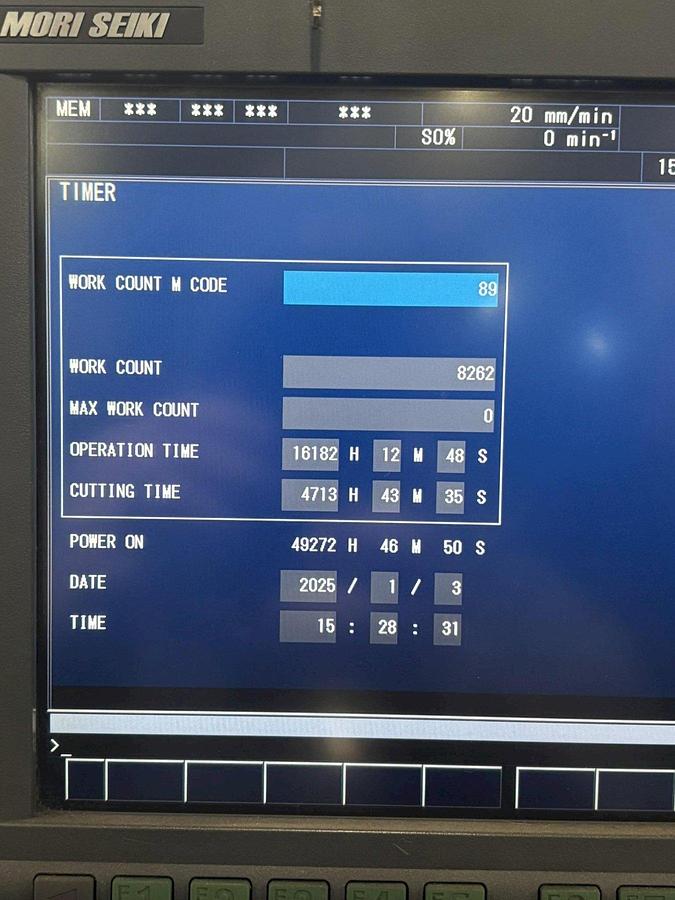

**Run Hours 16,148**
**Estimated Spindle Hours 5,000**
Specifications

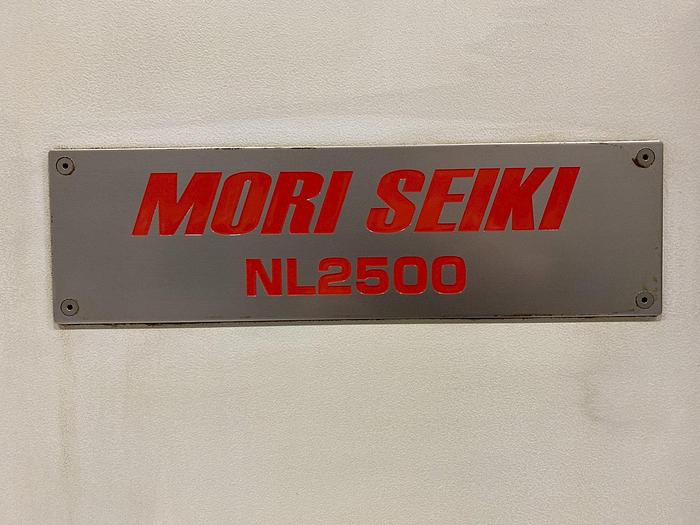

Manufacturer | Mori Seiki |
Model | NL2500MC/700 |
Year | 2008 |
Condition | Used |
Stock Number | 119491 |

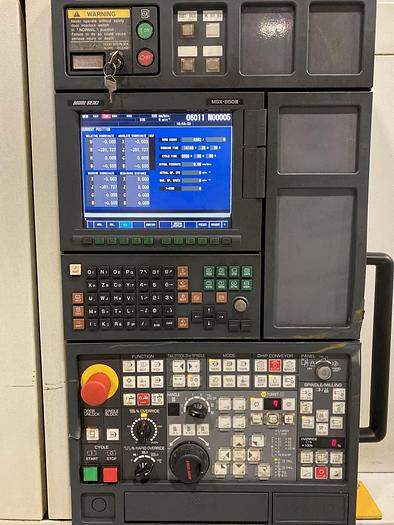

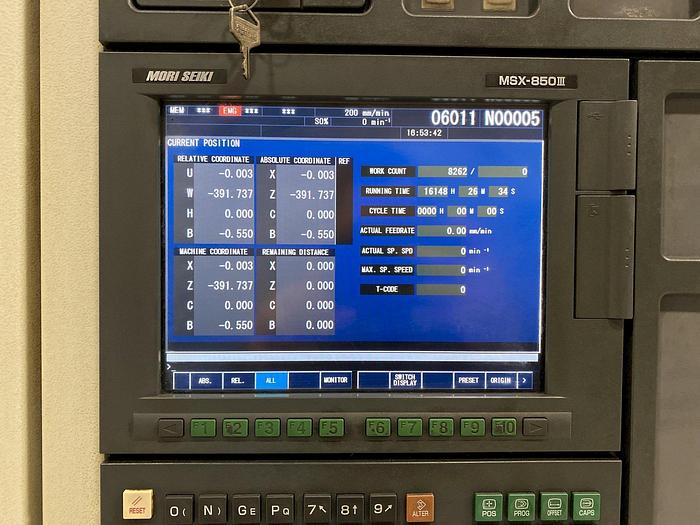

Control | Mori/Fanuc MSX-850 III |

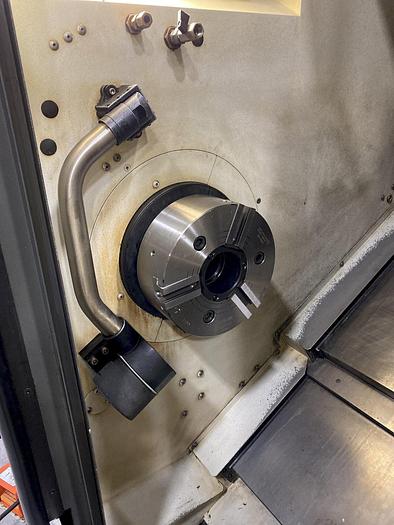

Chuck Size | 10" 3 Jaw Hydraulic Chuck |
Maximum Swing over Bed | 36.4" |
Maximum Swing Over Cross Slide | 29.7" |
Maximum Turning Diameter | 14" |
Maximum Turning Length | 27.7" |
X-Axis Travel | 10.2" |
Z-Axis Travel | 31.3" |
Spindle Nose / Spindle Bore | A2-8" / 3.1" |
Spindle Speeds | 4,000 RPM |
Spindle Motor | 25 HP |
Rotary Tool Speed / Rotary Motor | 6,000 RPM / 7.5 HP |

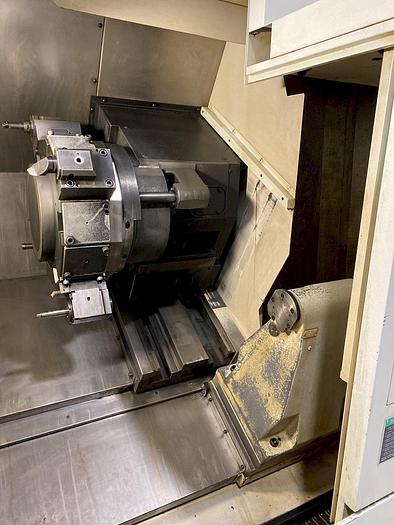

Number of Tool Positions | 12 Station Turret |
Rapid Traverse Rates X, Z / Y | 1181 IPM / 394 IPM |
Machine Dimensions | 122" x 76" x 84" |
Machine Weight | 13,640 lbs. |
