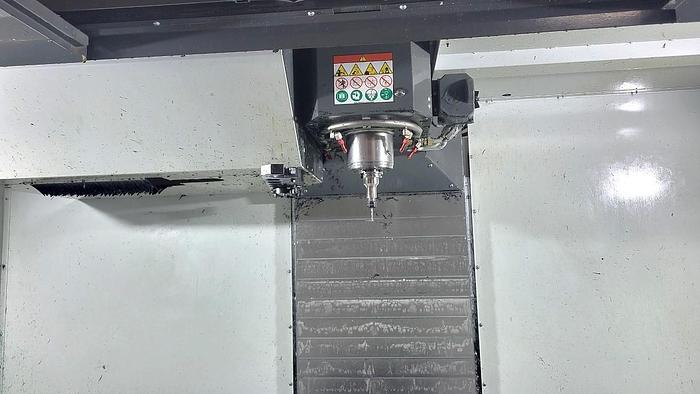

2021 Haas VF-3SS
![Used 2021 Haas VF-3SS](https://i.machineryhost.com/a5771bce93e200c36f7cd9dfd0e5deaa/c0bb7258c0207e21146ef64a981aa531/large-used-2021-haas-vf-3-ss.jpg)
2021 Haas VF-3SS
Contact us for price
Location:California
orCall (863) 439-6066
Description
30 Position Side Mounted Tool Changer
Programmable Coolant Nozzle
Prepped ONLY for Coolant Thru the Spindle
Auger Style Chip Conveyor
High Speed Machining
Rigid Tapping
1 GB Programming Memory
Coolant Tank with Pump
USB Port Interface
RS 232C Port Interface for DNC Operation
All Available Manuals
**Price New as Equipped at $98,075**

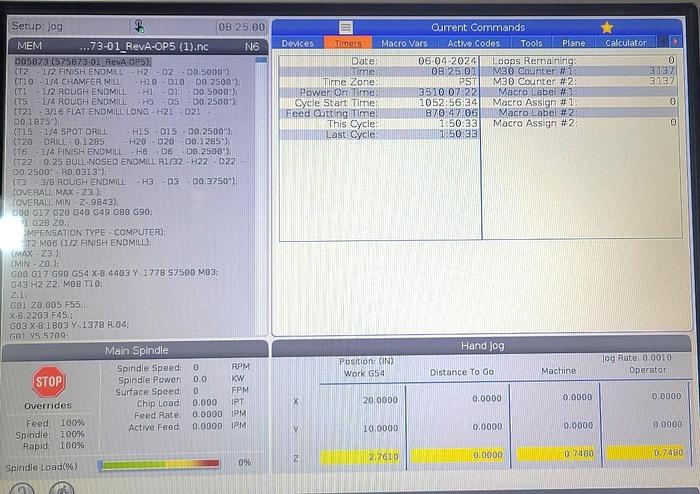

**Power On Hours 3,510**
**Cycle Start Hours 1,052**
**Feed Cutting Hours 870**
Specifications
Manufacturer | Haas |
Model | VF-3SS |
Year | 2021 |
Condition | Used |
Stock Number | 119495 |

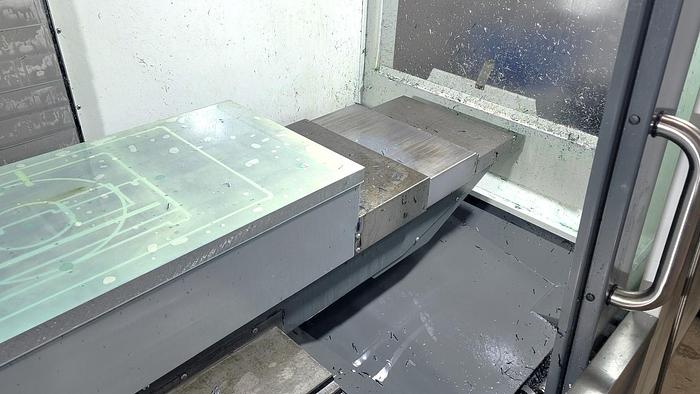

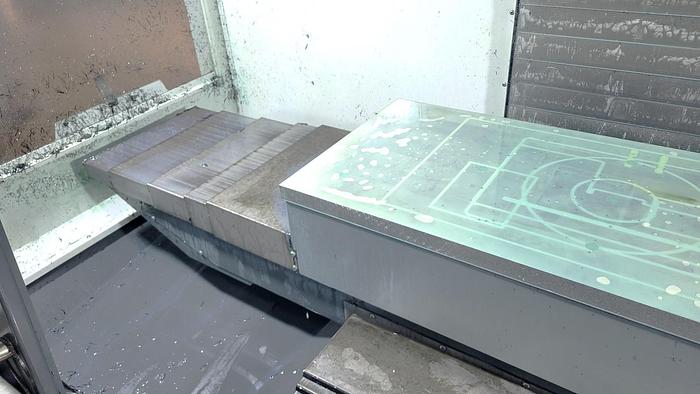

Table size | 48" x 18" |
Max table load | 1,750 lbs |
X axis travel | 40" |
Y axis travel | 20" |
Z axis travel | 25" |
Spindle taper | CAT #40 |
Spindle speed | 12,000 RPM |
Spindle motor | 30 HP - Direct Drive |
Spindle nose to table top | 4.2" - 29.2" |
Number of tool positions | 30 Position Side Mount ATC |
Max tool weight | 12 lbs. |
Rapid feed rate (x,y,z) | 1,400 IPM |
Cutting feed rate | 0.1 - 833 IPM |
Machine dimensions | 122" x 98" x 98.5" |
Machine weight (approximately) | 12,500 lbs. |
