2008 Haas VF4SS
2008 Haas VF4SS
Contact us for price
Location:Georgia
Description
40+1 Position Side Mounted Tool Changer
Haas Wireless Tool & Part Probing - Renishaw
300 PSI Coolant Through the Spindle
Haas HRT-210SP 4th Axis Rotary Table
6" Pneumatic Tailstock for Rotary Table
4th Axis Drive & Wiring
5th Axis Drive & Wiring
Auger Style Chip Conveyor
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Visual Part Programming System
Remote Jog Handle
High Speed Machining
High Intensity Lighting
Mist Collector
Rigid Tapping
Auxiliary Coolant Filtration System
95 Gallon Coolant System with Tank & Pump
Inline Direct Drive 12,000 RPM Spindle
USB Port Interface
RS 232C Port Interface for DNC Operation

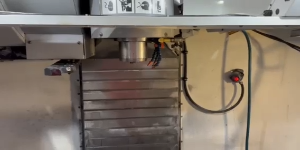

**The pictures may not be the exact machine, there were 8 identical machines available**
**Price new as equipped today at $103,280**
Specifications
| Manufacturer | Haas |
| Model | VF4SS |
| Year | 2008 |
| Condition | Used |
| Stock Number | 119506 |
| Table size | 52" x 18" |
| Max table load | 1,750 lbs |
| X axis travel | 50" |
| Y axis travel | 20" |
| Z axis travel | 25" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4.2" - 29.2" |
| Number of tool positions | 40 + 1 Position Side Mounted ATC |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 151" x 92" x 96" |
| Machine weight (approximately) | 13,300 lbs. |
